INTRODUCTION

The Wärtsilä LDU-20 Local Display Unit is an advanced Human Machine Interface (HMI) module designed for Wärtsilä UNIC engine automation systems. Installed on marine diesel engines and power generation systems, the LDU-20 provides operators with real-time access to engine operating parameters, alarms, diagnostics, control functions, and automation system status.

The unit serves as the primary local interface between ship engineers and the engine automation system. Through its display screen and control interface, operators can monitor engine performance, review alarms, access diagnostic information, and perform local operational functions directly from the machinery space.

Modern vessels depend heavily on automation systems for safe and efficient engine operation. The Wärtsilä LDU-20 plays a critical role in maintaining operational reliability by providing continuous visibility into engine performance and control system health. It helps reduce troubleshooting time, improves maintenance efficiency, and supports safe vessel operations.

For ship operators, the LDU-20 contributes to improved engine availability, reduced downtime, enhanced fault diagnosis, and efficient maintenance planning. It remains an important component in many Wärtsilä engine installations operating worldwide.

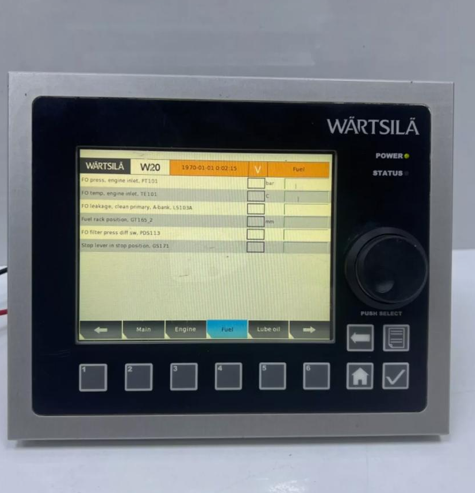

Product Images

---

PRODUCT OVERVIEW

The Wärtsilä LDU-20 is part of the Wärtsilä UNIC automation platform and functions as a local display and control interface for marine engine automation systems. It is commonly installed on Wärtsilä engine models including Wärtsilä 20, 26, 32, 34, 38, 46, 50, and other UNIC-controlled engine applications.

The module communicates with engine control units, safety systems, I/O modules, and external vessel automation systems through multiple communication interfaces. Typical communication methods include Ethernet, CAN Bus, RS485, and RS232, allowing seamless integration with vessel automation and monitoring networks.

The unit provides:

• Real-time engine parameter monitoring
• Alarm and event management
• Diagnostic functions
• Local control operations
• Communication status monitoring
• System configuration access
• Maintenance support functions

The LDU-20 is designed for harsh marine environments and supports reliable operation in engine rooms where vibration, temperature fluctuations, and continuous operation are common.

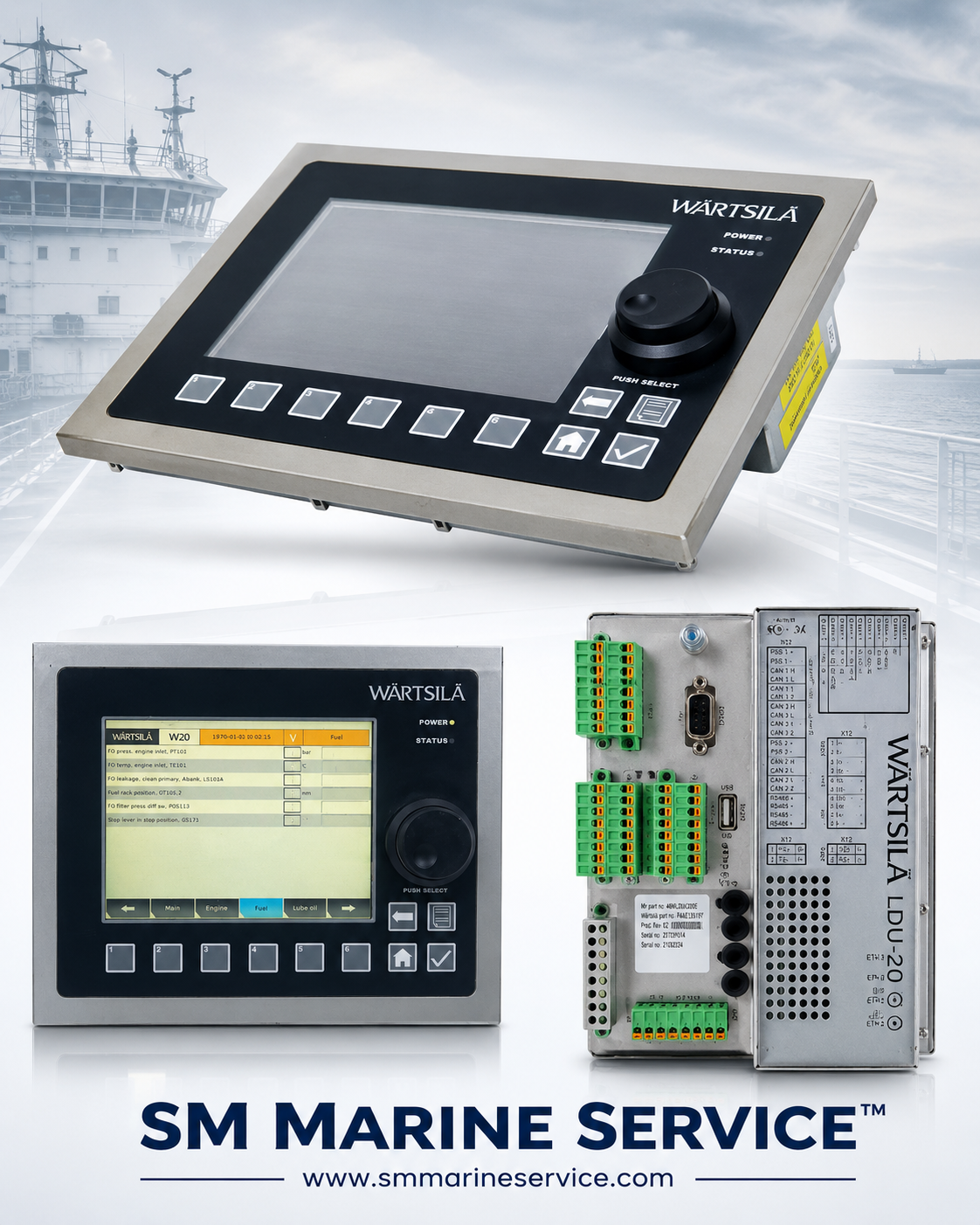

Product Images

---

KEY FEATURES

Advanced Human Machine Interface

The LDU-20 provides engineers with a clear graphical interface that simplifies engine monitoring and operational management. Important engine data can be viewed quickly, reducing response time during abnormal operating conditions.

Real-Time Alarm Monitoring

The system continuously monitors engine operating conditions and displays alarms immediately when abnormal parameters are detected. This enables faster corrective action and improved machinery protection.

Integrated Diagnostic Functions

The unit includes diagnostic capabilities that help engineers identify faults within the engine automation network. Diagnostic information significantly reduces troubleshooting time during maintenance activities.

Multi-Communication Capability

The LDU-20 supports multiple communication protocols including Ethernet, CAN Bus, RS232, and RS485. This allows integration with vessel automation systems and engine management networks.

Local Control Capability

Operators can access engine-related functions directly from the display unit, allowing convenient local monitoring and operational support when required.

Marine Grade Construction

Designed specifically for marine applications, the unit offers reliable performance in demanding shipboard environments.

Product Images

---

TECHNICAL SPECIFICATIONS

Specifications may vary depending on software revision, hardware version, and engine application.

---

APPLICATIONS

The Wärtsilä LDU-20 is widely used across various vessel types and offshore installations.

Container Ships

Used for monitoring and controlling Wärtsilä propulsion and auxiliary engine systems.

Bulk Carriers

Provides engine performance monitoring and alarm management during long-distance operations.

Oil Tankers

Supports critical engine automation functions and machinery monitoring requirements.

Chemical Tankers

Ensures reliable monitoring of propulsion and auxiliary machinery systems.

LNG Carriers

Used in advanced engine control and automation environments requiring dependable monitoring.

LPG Carriers

Supports safe engine operation and automation diagnostics.

Offshore Vessels

Provides continuous engine monitoring for dynamic offshore operations.

Passenger Ships

Helps maintain high levels of machinery reliability and operational safety.

Research Vessels

Supports precision engine monitoring and operational diagnostics.

Fishing Vessels

Provides efficient monitoring of propulsion and auxiliary engines.

The LDU-20 can also interface with related shipboard systems including Radar, ECDIS, AIS, Gyro Compass, Autopilot, VDR, BNWAS, GPS, Satellite Compass, Navtex, Inmarsat, GMDSS, Fire Alarm Systems, Boiler Control Systems, and Vessel Automation Systems.

Product Images

---

SPARE PARTS SUPPORT

SM MARINE SERVICE™ supplies a complete range of spare parts and replacement components for Wärtsilä automation systems, including:

• LDU-20 Display Units
• HMI Panels
• Communication Modules
• Power Supply Modules
• Engine Control Modules
• Input Output Modules
• Network Components
• Interface Boards
• Cables and Connectors
• Automation System Spare Parts

Both new and reconditioned units are available depending on customer requirements and budget.

---

REPAIR AND TECHNICAL SERVICES

SM MARINE SERVICE™ provides comprehensive technical support services for Wärtsilä LDU-20 systems, including:

• Fault Diagnosis
• Troubleshooting
• Electronic Repair
• Display Unit Repair
• Communication Fault Analysis
• Software Support
• Hardware Testing
• Functional Testing
• Calibration Support
• Spare Parts Replacement
• System Upgrades
• Onboard Technical Assistance
• Workshop Repair Services

Common LDU-20 issues include display freezing, communication loss, startup failures, and network communication faults. Our technical team can assist with troubleshooting and repair solutions.

---

USER MANUAL AND TECHNICAL RESOURCES

Technical references and documentation may be available through Wärtsilä service channels and authorized technical support providers.

Useful references:

• Wärtsilä UNIC Engine Automation Documentation
• LDU-20 Technical Service Instructions
• Engine Automation Troubleshooting Guides
• Wärtsilä Service Bulletins for LDU-20 Modules

---

WHY CHOOSE SM MARINE SERVICE™

SM MARINE SERVICE™

Bangladesh Office

Samir Market, DT Road, Pahartali, Beside CDA Market, Chattogram, Bangladesh

China Warehouse and Support Center

Shanghai, China

SM MARINE SERVICE™ supplies both New Equipment and Reconditioned Equipment depending on customer requirements and budget.

We provide worldwide supply, sourcing, repair, calibration, technical support and spare parts services for marine automation, navigation, communication and marine electronic systems.

Website : https://www.smmarineservice.com

Email : info@smmarineservice.com

WhatsApp and Viber : +8801818929292

Marketing Contact: Nazmul Hasan Bhuiyan

Mobile WhatsApp and Viber : +8801730296909

---

CONCLUSION

The Wärtsilä LDU-20 Local Display Unit remains an important component within Wärtsilä UNIC marine engine automation systems. Its ability to provide real-time monitoring, diagnostics, alarm management, and operator interaction makes it essential for maintaining safe and efficient vessel operations.

Whether you require a new unit, reconditioned equipment, spare parts support, troubleshooting assistance, repair services, calibration support, or technical consultation, SM MARINE SERVICE™ can provide complete solutions for Wärtsilä LDU-20 and other marine automation equipment. Contact SM MARINE SERVICE™ today for worldwide supply and professional marine technical support.

-

+
