Introduction to Staffa HMF Series Hydraulic Motors

The Staffa HMF Series Hydraulic Motor is one of the most trusted heavy-duty radial piston hydraulic motor ranges used throughout the offshore and marine industries. Designed for continuous high torque operation under extreme load conditions, the HMF Series is widely installed on offshore winches, anchor handling systems, heavy-duty cranes, and deck machinery where reliability is critical.

The Staffa HMF Series is known for its exceptional starting torque, smooth low-speed operation, high mechanical efficiency, and long service life in harsh marine environments.

SM MARINE SERVICE™ supplies genuine, reconditioned, and replacement Staffa HMF hydraulic motors together with spare parts, overhaul kits, repair services, and technical support.

---

Common Staffa HMF Series Models

The most commonly used HMF models in marine and offshore applications include:

• HMF080
• HMF100
• HMF150
• HMF200
• HMF270

These motors are selected according to vessel requirements, winch capacity, crane load ratings, and hydraulic system design.

---

Main Features of Staffa HMF Hydraulic Motors

• High torque at low speed
• Heavy-duty radial piston construction
• Excellent starting efficiency
• Smooth operation under varying loads
• Long operational life
• High shock load resistance
• Low maintenance requirements
• Suitable for continuous operation
• Marine-grade corrosion resistance
• Compatible with offshore hydraulic systems

---

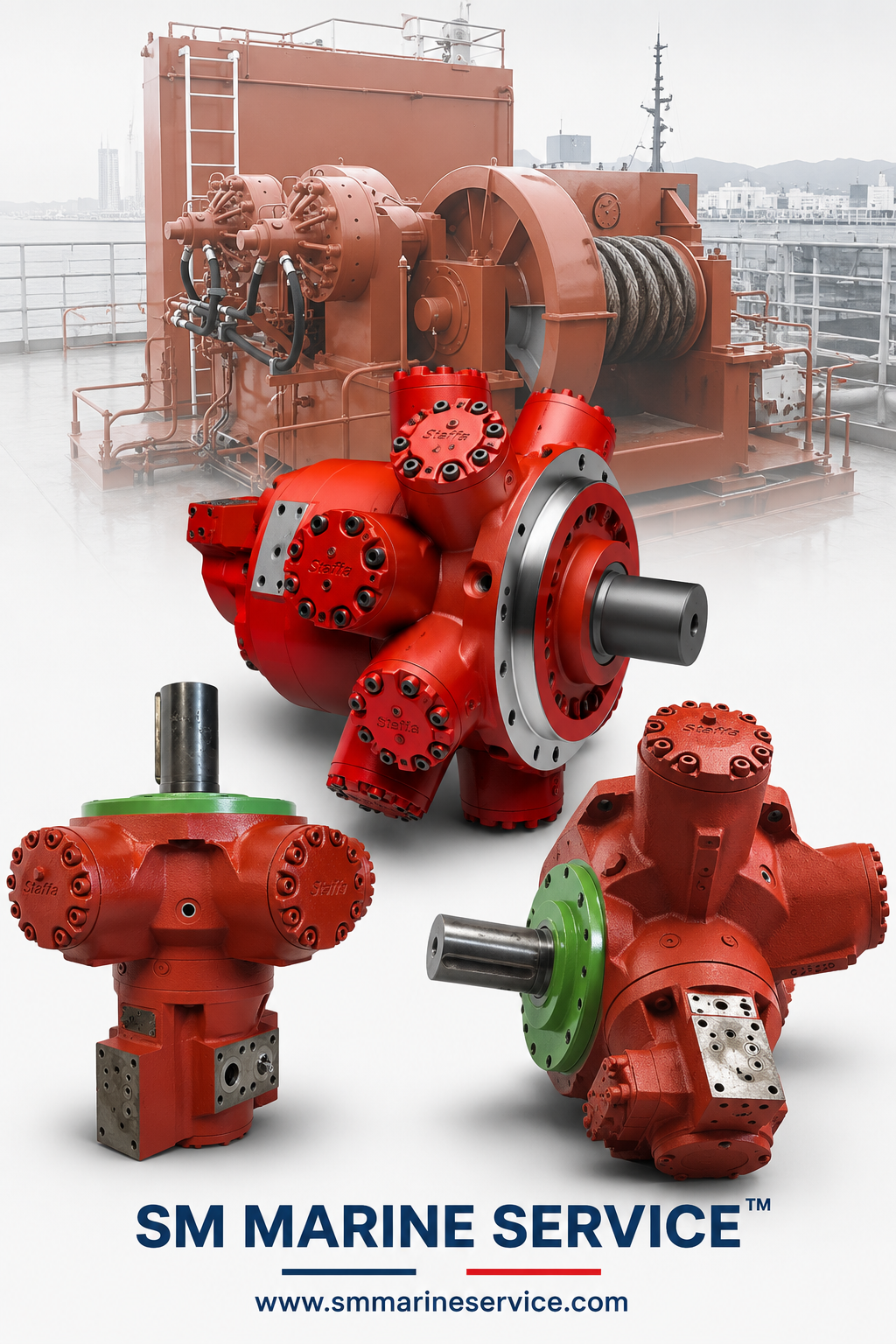

Staffa HMF Series Hydraulic Motor

---

Internal Construction and Major Components

A Staffa HMF motor typically consists of:

• Radial Pistons
• Cam Ring
• Cylinder Block
• Distributor Valve
• Drive Shaft
• Bearings
• End Covers
• Sealing System
• Hydraulic Ports
• Mounting Flange

These components work together to convert hydraulic energy into powerful rotational torque for demanding marine operations.

SM MARINE SERVICE™ provides spare parts support for all major Staffa HMF motor components.

---

Marine Applications

Offshore Winches

HMF motors are extensively installed on offshore winches where high torque and precise load control are essential.

Heavy Duty Marine Cranes

Marine and offshore cranes utilize HMF motors to ensure smooth lifting operations under heavy load conditions.

Anchor Handling Systems

Anchor handling vessels rely on Staffa HMF motors because of their ability to withstand extreme shock loads and continuous operation.

Deck Machinery

Various deck equipment including towing winches and specialty handling systems use HMF motors for dependable hydraulic performance.

---

Offshore Winch and Anchor Handling Applications

---

Common Problems and Troubleshooting

Low Output Torque

Possible causes:

• Internal wear
• Low hydraulic pressure
• Valve malfunction
• Leakage inside motor

Excessive Noise

Possible causes:

• Air in hydraulic system
• Bearing wear
• Cavitation
• Contaminated hydraulic oil

Oil Leakage

Possible causes:

• Damaged seals
• Worn shaft seals
• Loose fittings
• Excessive pressure

Overheating

Possible causes:

• Continuous overload
• Oil contamination
• Restricted oil flow
• Hydraulic system inefficiency

---

Maintenance Recommendations

To maximize HMF motor service life:

• Inspect hydraulic oil regularly
• Replace filters as scheduled
• Check system pressure settings
• Monitor shaft seal condition
• Inspect mounting bolts
• Perform periodic leakage inspections
• Use recommended hydraulic fluids
• Conduct regular performance testing

SM MARINE SERVICE™ offers inspection, testing, repair, and reconditioning services for Staffa hydraulic motors.

---

Available Spare Parts

We can support:

• Seal Kits
• Bearing Kits
• Shaft Assemblies
• Distributor Valves
• Pistons
• Cylinder Blocks
• Cam Rings
• End Covers
• Repair Kits
• Complete Overhaul Kits

---

Why Staffa HMF Motors Remain Popular

The HMF Series continues to be a preferred choice in offshore operations because of:

• Proven reliability
• High torque capability
• Rugged design
• Low-speed stability
• Long operational life
• Global spare parts availability
• Excellent performance under severe marine conditions

---

Frequently Asked Questions

What is the main application of Staffa HMF motors?

They are mainly used in offshore winches, anchor handling systems, heavy-duty cranes, and marine deck machinery.

Can HMF motors be repaired?

Yes. Most HMF motors can be repaired and reconditioned using genuine spare parts and overhaul kits.

Are spare parts available?

Yes. Spare parts and overhaul kits are available through SM MARINE SERVICE™ depending on model availability.

Which models are most common?

HMF080, HMF100, HMF150, HMF200, and HMF270 are among the most widely used models.

---

Short Product Description

The Staffa HMF Series Hydraulic Motor is a high-performance radial piston hydraulic motor designed for offshore winches, anchor handling systems, cranes, and heavy-duty marine applications. Known for exceptional torque output, durability, and reliability, the HMF Series remains one of the most trusted hydraulic motor solutions in the offshore industry.

---

User Manual and Technical Resources

Typical documentation available:

• User Manual
• Service Manual
• Spare Parts Catalog
• Installation Guide
• Maintenance Manual
• Hydraulic Circuit Information
• Troubleshooting Guide
• Overhaul Procedures

SM MARINE SERVICE™ can assist customers in sourcing available technical documentation for supported models.

---
