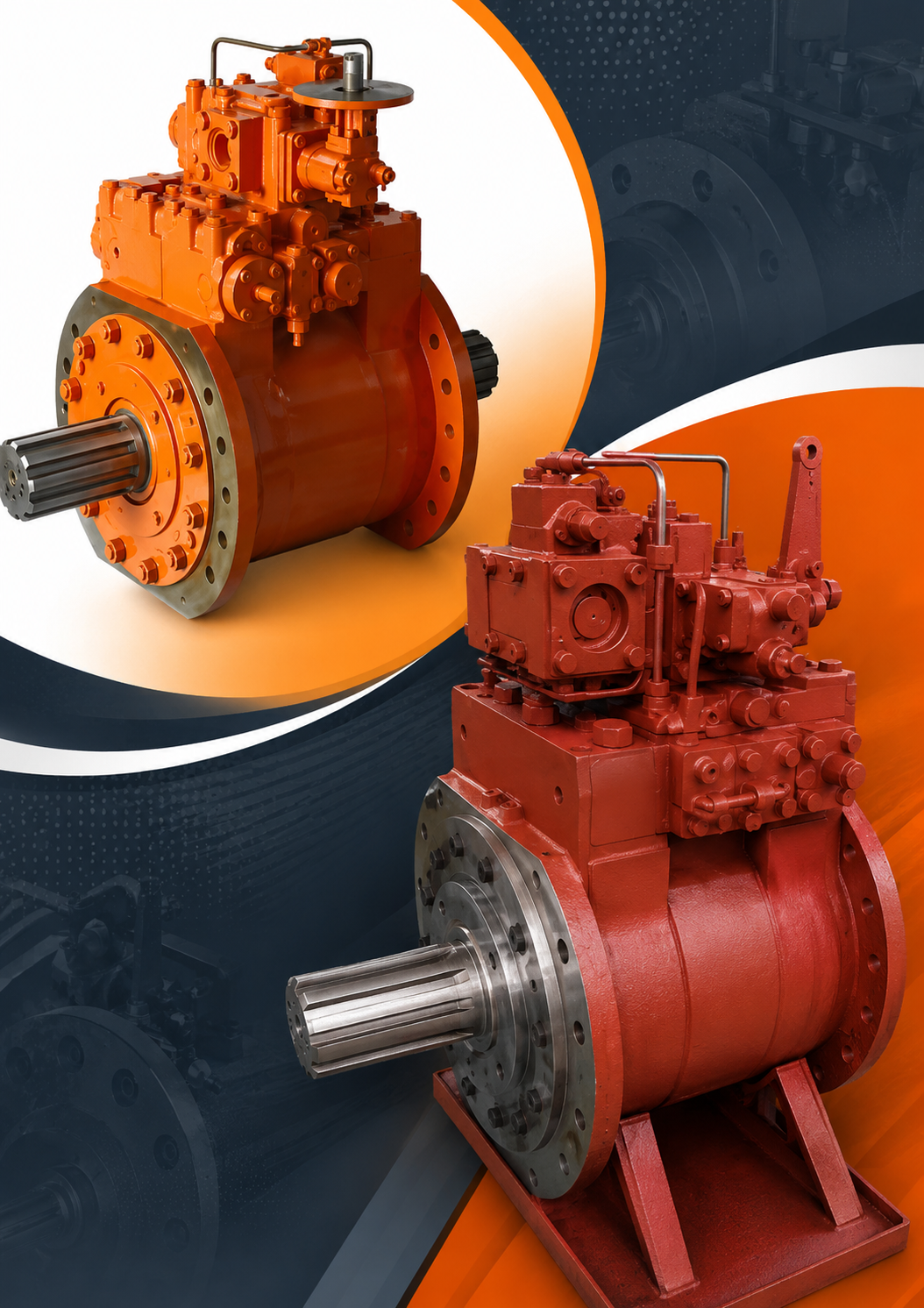

IHI HLA / HKA SERIES HYDRAULIC MOTORS

HLA | HKA | HK-A | HNK | HNS | HNA

Manufacturer

IHI – Ishikawajima-Harima Heavy Industries Co., Ltd.

Country of Origin

Japan

Product Type

Marine Hydraulic Motor for Deck Machinery and Winch Systems

Models Covered

• HLA
• HKA
• HK-A
• HNK
• HNS
• HNA

---

Introduction

The IHI HLA and HKA Series Hydraulic Motors are widely used throughout the marine industry for deck machinery applications including mooring winches, anchor windlasses, hatch cover systems, cargo handling equipment and offshore hydraulic machinery. These motors are engineered to deliver high torque output, reliable performance and long service life under harsh marine operating conditions.

Their rugged construction and proven reliability have made them a preferred solution on commercial vessels, offshore support vessels and specialized marine equipment worldwide.

---

What is the IHI HLA / HKA Series Hydraulic Motor?

The HLA and HKA family consists of heavy-duty hydraulic motors designed to convert hydraulic pressure into rotational mechanical power for marine deck machinery.

These motors are commonly installed in:

• Mooring Winches
• Anchor Windlasses
• Hatch Cover Systems
• Cargo Handling Equipment
• Hydraulic Deck Machinery
• Offshore Handling Systems

The series has been developed to provide stable operation, high torque performance and dependable service in demanding marine environments.

---

Main Models in the HLA / HKA Family

HLA

The HLA model is widely used in standard marine deck machinery applications and hydraulic winch systems.

HKA

The HKA series is designed for heavier-duty applications requiring higher torque and increased durability.

HK-A

A specialized hydraulic motor configuration used in selected marine equipment and deck machinery installations.

HNK

The HNK model is commonly installed in hydraulic handling systems and offshore machinery.

HNS

Designed for stable and continuous-duty operation in marine hydraulic systems.

HNA

A high-performance configuration used in demanding marine and offshore environments.

---

Key Features

• High Torque Output
• Heavy-Duty Construction
• Smooth Low-Speed Operation
• Reliable Marine Performance
• Compact Design
• Long Service Life
• High Mechanical Efficiency
• Excellent Load Handling Capability
• Easy Maintenance
• Suitable for Continuous Operation

These features make the HLA and HKA family ideal for marine deck machinery and offshore equipment.

---

Main Components

The IHI HLA / HKA Series Hydraulic Motors typically include:

• Rotor Assembly
• Output Shaft
• Cam Ring
• Bearing Assembly
• Housing Body
• End Covers
• Hydraulic Port Block
• Seal Kit
• Internal Valve Components
• Mounting Flange

Each component is engineered to withstand demanding marine operating conditions.

---

Marine Applications

Mooring Winches

The HLA and HKA motors are extensively used in mooring winch systems where high torque output is required.

Anchor Windlasses

Many vessels utilize these motors to operate anchor handling systems safely and efficiently.

Hatch Cover Systems

Hydraulic hatch cover mechanisms frequently use HLA and HKA motors for dependable operation.

Offshore Equipment

Offshore support vessels and platform equipment often rely on these motors because of their durability and reliability.

Cargo Handling Equipment

Many hydraulic cargo handling systems use HKA and HNA models for heavy-duty applications.

---

Common Problems and Troubleshooting

Low Torque Output

Possible Causes:

• Internal leakage
• Worn rotor components
• Low hydraulic pressure

Excessive Noise

Possible Causes:

• Bearing wear
• Air contamination
• Internal component damage

Oil Leakage

Possible Causes:

• Worn seals
• Damaged shaft seals
• Loose hydraulic fittings

Overheating

Possible Causes:

• Excessive load
• Hydraulic contamination
• Restricted oil flow

Slow Operation

Possible Causes:

• Hydraulic flow restriction
• Pump performance issues
• Internal wear

Regular maintenance can significantly reduce the occurrence of these issues.

---

Maintenance Recommendations

To maximize operational reliability:

• Monitor hydraulic oil quality
• Replace filters regularly
• Inspect seals and bearings
• Verify operating pressure levels
• Check shaft condition
• Monitor operating temperature
• Perform scheduled overhauls
• Use quality replacement parts

Proper maintenance extends service life and reduces equipment downtime.

---

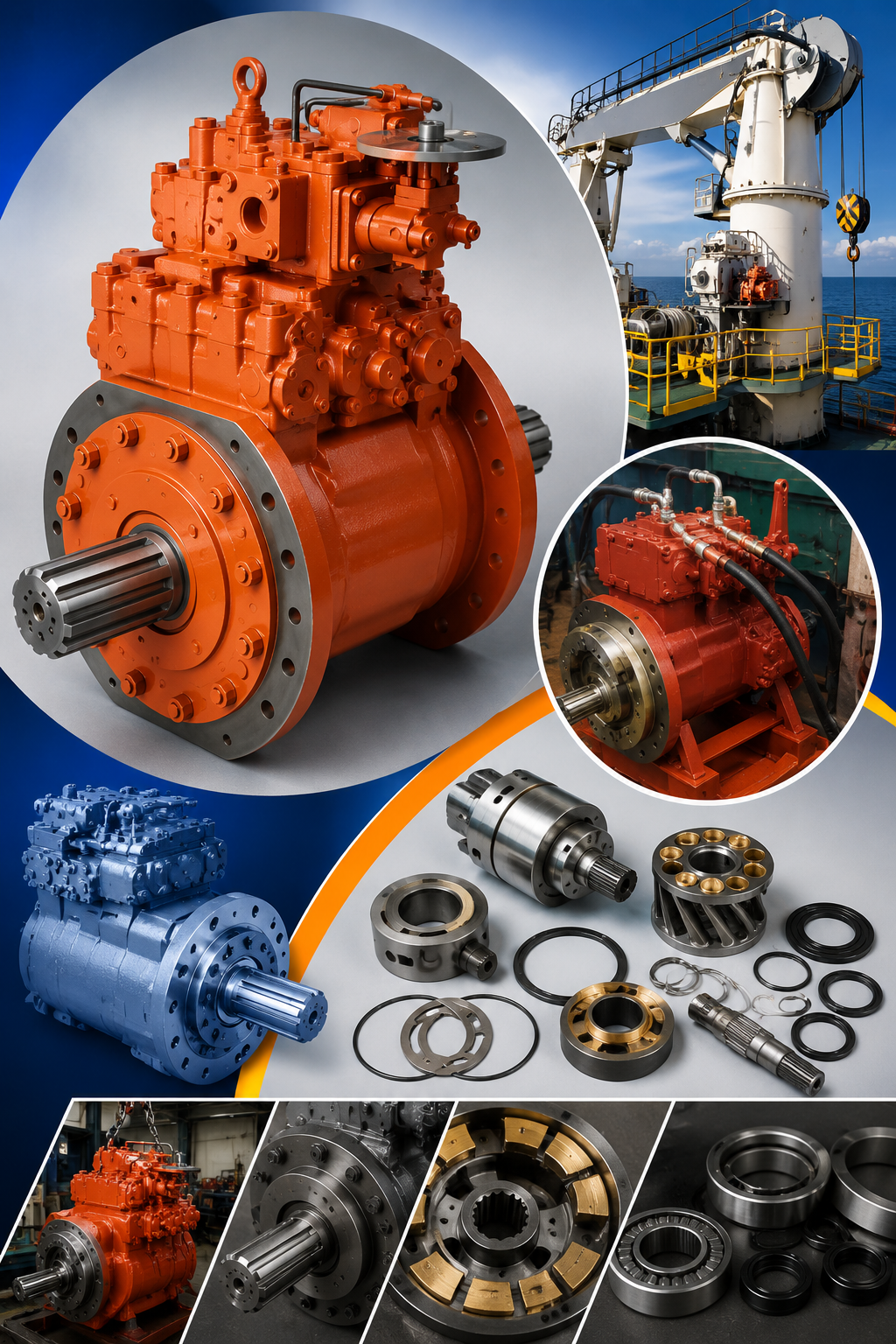

Spare Parts Available

SM MARINE SERVICE™ can support sourcing and supply of:

• Complete Hydraulic Motors
• Reconditioned Hydraulic Motors
• Rotor Assemblies
• Shaft Assemblies
• Bearing Kits
• Seal Kits
• Housing Components
• Repair Kits
• Hydraulic Control Components

Whether customers require complete replacement units or individual spare parts, support is available for most HLA and HKA series models.

---

Why the HLA / HKA Series Remains Popular

The IHI HLA and HKA family remains popular because of its proven reliability, robust construction and ability to operate continuously under demanding marine conditions. Many vessels continue using these motors successfully for decades with proper maintenance and periodic overhaul.

Their high torque output and dependable performance make them ideal for winches, windlasses and hydraulic deck machinery.

---

Frequently Asked Questions

What is the primary function of the HLA / HKA Series?

These motors provide hydraulic power for marine winches, windlasses, hatch covers and deck machinery.

Can these motors be repaired?

Yes. Most units can be successfully overhauled using replacement seals, bearings, shafts and repair kits.

Are spare parts available?

Yes. Spare parts and overhaul kits are available for most HLA and HKA series models.

Are reconditioned units available?

Yes. Reconditioned and tested units are commonly supplied for marine applications.

Which industries use these motors?

Marine shipping, offshore oil and gas, shipyards, cargo handling and marine construction industries frequently use these motors.

---

CONCLUSION

The IHI HLA, HKA, HK-A, HNK, HNS and HNA Hydraulic Motors continue to provide dependable hydraulic power for marine deck machinery, winches, windlasses and offshore systems worldwide. Their durable design, high torque performance and proven reliability make them a preferred solution for vessel operators and marine engineers.
