Introduction

The IHI HVL Series Hydraulic Motors are among the most widely used hydraulic vane motors installed on IHI marine cranes, cargo cranes, hatch cover systems, offshore lifting equipment, and deck machinery worldwide. Designed for low-speed, high-torque operation, the HVL series provides smooth movement, high efficiency, and long-term reliability in demanding marine environments.

---

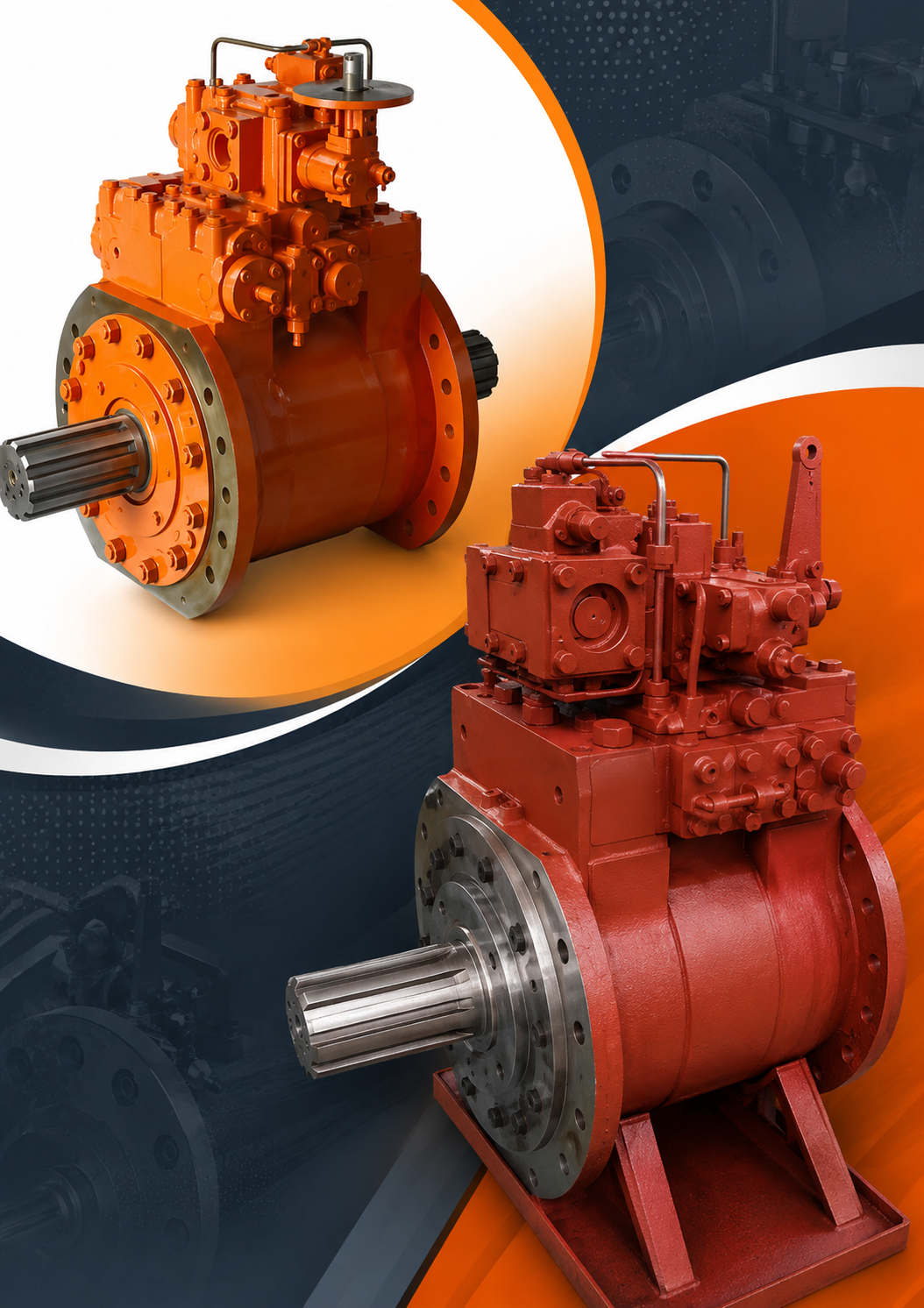

Authentic Product Reference Image

---

What is the IHI HVL Series Hydraulic Motor?

The HVL series is a hydraulic vane motor family developed by IHI Japan for marine deck machinery applications. These motors convert hydraulic energy into rotational mechanical power and are designed to operate under heavy loads with excellent torque characteristics.

Common applications include:

• Cargo Cranes
• Deck Cranes
• Hatch Covers
• Hydraulic Winches
• Offshore Handling Systems
• Mooring Equipment

---

Main HVL Series Models

IHI HVL-SS

The HVL-SS model is commonly used in marine cargo cranes where stable torque and smooth operation are required.

IHI HVL-DSS

The HVL-DSS version is designed for higher-duty applications requiring enhanced load handling capabilities.

IHI HVL-DT

The HVL-DT model is often installed in heavy lifting systems where increased torque output is necessary.

---

HVL Series Installed On Marine Cranes

---

IHI HVLP

The HVLP series offers excellent efficiency and reliability for continuous-duty crane operations.

IHI HVLG

The HVLG variant is frequently found in large cargo handling cranes and offshore lifting equipment.

IHI HVLK

The HVLK model is engineered for demanding marine service conditions and long operational life.

IHI HVL-STS

The HVL-STS configuration is designed for specialized marine hydraulic systems requiring precise control and stable performance.

---

Key Features

• High Starting Torque
• Low-Speed Stable Operation
• Heavy Duty Marine Design
• Excellent Mechanical Efficiency
• Long Service Life
• Compact Construction
• Smooth Load Handling
• Reliable Hydraulic Performance
• Easy Maintenance
• Worldwide Service Support

---

Internal Components and Spare Parts

---

Main Components

The HVL series typically consists of:

• Rotor Assembly
• Vanes
• Cam Ring
• Output Shaft
• Bearings
• Seal Kits
• Housing Assembly
• End Covers
• Hydraulic Valve Components
• Mounting Flanges

---

Common Problems and Troubleshooting

Low Torque Output

Possible Causes:

• Internal leakage
• Worn vanes
• Damaged rotor
• Low hydraulic pressure

Oil Leakage

Possible Causes:

• Damaged shaft seal
• Worn seal kit
• Loose fittings

Excessive Noise

Possible Causes:

• Bearing wear
• Air contamination
• Internal damage

Overheating

Possible Causes:

• Excessive load
• Contaminated oil
• Restricted hydraulic flow

---

Workshop Overhaul and Repair

---

Maintenance Recommendations

To maximize service life:

• Monitor hydraulic oil quality
• Replace filters regularly
• Inspect shaft seals
• Check operating pressure
• Inspect bearings periodically
• Perform scheduled overhauls
• Use genuine spare parts

---

Spare Parts Available

SM MARINE SERVICE™ can support:

• Complete Hydraulic Motors
• Rotor Assemblies
• Shaft Assemblies
• Seal Kits
• Bearing Kits
• Housing Components
• Repair Kits
• Reconditioned Units
• Used Units
• New Replacement Units

---

Why the IHI HVL Series Remains Popular

The HVL family remains one of the most trusted hydraulic motor solutions in the marine industry because of its durability, low-speed high-torque performance, and ability to withstand harsh offshore and marine environments. Many vessels continue operating HVL motors successfully for decades with proper maintenance.

---

Frequently Asked Questions

Which HVL model is used on marine cranes?

HVL-SS, HVL-DSS, HVL-DT, HVLP, HVLG, HVLK, and HVL-STS are commonly found on marine cargo and deck cranes.

Are spare parts available?

Yes. Spare parts, overhaul kits, shafts, bearings, seals, and complete motors are available.

Can these motors be repaired?

Yes. Most HVL motors can be successfully overhauled and returned to service.

Are reconditioned units available?

Yes. Reconditioned and tested units are widely used throughout the marine industry.

---

SM MARINE SERVICE™

SM MARINE SERVICE™ is a global supplier of marine hydraulic equipment, crane spare parts, hydraulic motors, pumps, automation systems, and marine technical solutions.

Products Available:

• New Equipment
• Used Equipment
• Reconditioned Equipment

Services:

• Supply
• Repair
• Troubleshooting
• Overhaul
• Technical Support
• Worldwide Shipping

Website: www.smmarineservice.com

Email:
info@smmarineservice.com
sohelbhuiyan1213@gmail.com

WhatsApp:
+8801819376296

Bangladesh Warehouse: Chattogram, Bangladesh

China Warehouse: Shanghai, China

SM MARINE SERVICE™ supports the complete IHI HVL Hydraulic Motor Series including HVL-SS, HVL-DSS, HVL-DT, HVLP, HVLG, HVLK, and HVL-STS with supply, repair, spare parts, and worldwide technical support.

-

+
