EM940 TANK RADAR MONITORING SYSTEM
Honeywell
New product

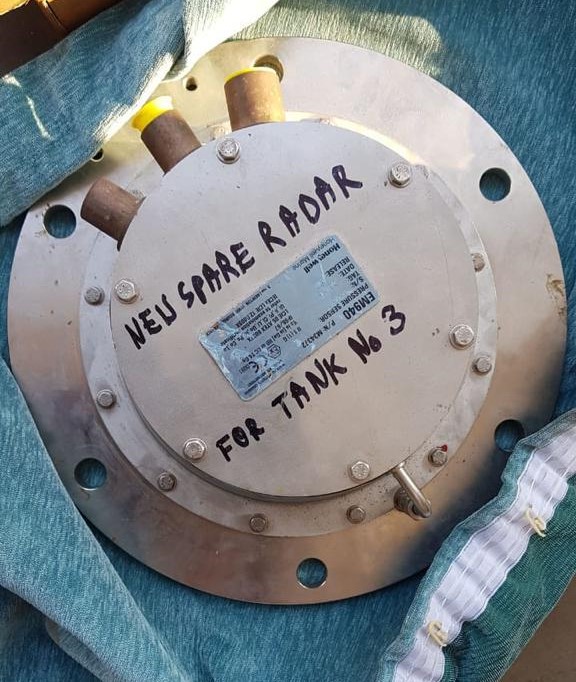

The EM940 Tank Radar Monitoring System is a marine-approved radar level gauging solution specifically developed for accurate cargo tank level measurement onboard tankers. Based on the equipment shown in the image, the unit is identified as an EM940 Radar Level Gauge, a widely used radar transmitter designed for crude oil tankers, product tankers, chemical tankers, FPSOs, and offshore storage applications.
The EM940 utilizes advanced FMCW (Frequency Modulated Continuous Wave) radar technology to provide continuous, non-contact measurement of liquid levels inside cargo tanks. Unlike traditional float-based or mechanical gauging systems, the EM940 operates without direct contact with the cargo, resulting in greater accuracy, reduced maintenance requirements, and improved operational reliability. The system is specifically designed for hydrocarbons, chemicals, bitumen, and other liquid cargoes.
Continuous and accurate cargo monitoring is critical during loading, unloading, transfer operations, and voyage monitoring. The EM940 enables operators to maintain safe cargo handling procedures while providing real-time tank level, pressure, and temperature information to central monitoring systems and cargo control rooms.
The EM940 Radar Level Gauge forms part of a complete tank gauging and cargo monitoring system. The radar is mounted on top of cargo tanks and continuously measures the distance between the antenna and the liquid surface.
Using FMCW radar technology operating at 10 GHz, the transmitter calculates ullage and liquid level with high precision. The measured information is then transmitted to the central communication interface and cargo monitoring system where volume calculations, trim corrections, heel compensation, and cargo inventory management functions are performed.
The EM940 system typically integrates with:
The radar incorporates advanced self-diagnostics, self-monitoring, and remote configuration capabilities that simplify maintenance and improve long-term reliability. The integrated inert gas pressure transmitter available on the EM940 provides additional measurement capability within a single instrument package.
The EM940 measures cargo levels without direct contact with the liquid, reducing maintenance requirements and eliminating wear associated with mechanical gauging systems.
The radar provides measurement accuracy of approximately ±3 mm instrument accuracy and ±5 mm operational accuracy, making it suitable for demanding cargo measurement applications.
The EM940 supports inert gas pressure monitoring and can transmit pressure data together with level information to the central control system.
Built-in diagnostics continuously monitor system health and provide early warning of potential faults, helping reduce downtime and maintenance costs.
Operators and service engineers can remotely configure and monitor the radar through the central monitoring system.
The EM940 is designed for installation in hazardous marine environments and complies with marine and explosion protection standards.
The radar employs a planar antenna design that minimizes product build-up and simplifies cleaning procedures.
| Parameter | Specification |
|---|---|
| Product Name | EM940 Radar Level Gauge |
| Equipment Type | Tank Radar Monitoring System |
| Measurement Principle | FMCW Radar Technology |
| Radar Frequency | 10 GHz |
| Measurement Range | 600 mm to 42,000 mm |
| Resolution | 1 mm |
| Accuracy | ±3 mm Instrument Accuracy |
| Operating Temperature | -40°C to +70°C |
| Product Temperature | -40°C to +200°C |
| Maximum Pressure | 1 Bar |
| Protection Class | IP66 / IP67 |
| Communication Protocol | EMS |
| Material | Stainless Steel Construction |
| Application | Cargo Tank Level Monitoring |
Technical specifications based on EM940 manufacturer documentation and marine radar level gauge references.
The EM940 Tank Radar Monitoring System is widely used onboard:
Continuous monitoring of cargo levels during loading, discharge, and voyage operations.
Accurate inventory management and cargo transfer monitoring.
Reliable level measurement for hazardous and specialized liquid cargoes.
Suitable for high-temperature cargo applications requiring precise monitoring.
Storage tank monitoring and cargo inventory management.
Tank monitoring applications requiring reliable non-contact level measurement.
Safe cargo level management and inventory control.
The EM940 can be integrated with:
SM MARINE SERVICE™ provides sourcing and supply support for:
Both replacement units and reconditioned equipment may be available depending on stock availability.
SM MARINE SERVICE™ offers professional repair, troubleshooting, calibration, and maintenance services for EM940 Tank Radar Monitoring Systems.
Diagnosis of:
Professional repair of radar transmitters, communication interfaces, power supplies, and associated electronics.
Verification and adjustment of measurement accuracy to ensure reliable cargo monitoring performance.
Comprehensive functional testing and operational verification.
Inspection, refurbishment, component replacement, and performance validation.
Support may be available for:
Honeywell maintenance documentation covers installation, maintenance, troubleshooting, cleaning procedures, pressure transmitters, and radar system diagnostics for the EM540/EM940 platform.
Our engineers provide both workshop repairs and onboard attendance services worldwide.
SM MARINE SERVICE™
Bangladesh Office
Samir Market, DT Road, Pahartali, Beside CDA Market, Chattogram, Bangladesh
China Warehouse and Support Center
Shanghai, China
SM MARINE SERVICE™ supplies both New Equipment and Reconditioned Equipment depending on customer requirements and budget.
We provide worldwide supply, sourcing, repair, calibration, technical support and spare parts services for marine automation, navigation, communication and marine electronic systems.
Website : SM MARINE SERVICE™
Email : info@smmarineservice.com
WhatsApp and Viber : +8801818929292
Marketing Contact: Nazmul Hasan Bhuiyan
Mobile WhatsApp and Viber : +8801730296909
The EM940 Tank Radar Monitoring System is a proven and highly accurate radar level gauging solution for marine cargo tanks. Its non-contact measurement technology, advanced diagnostics, integrated pressure monitoring, and high measurement accuracy make it an excellent choice for tankers, offshore facilities, and cargo monitoring applications. The system provides reliable cargo inventory data while supporting safe and efficient vessel operations.
For EM940 Tank Radar Monitoring System supply, repair, calibration, troubleshooting, spare parts, technical documentation support, reconditioned equipment, onboard attendance, and worldwide marine services, contact SM MARINE SERVICE™ for professional support and marine automation expertise.
