INTRODUCTION

The Nabtesco Governor Control Unit (GCU) is a sophisticated electronic engine speed control and fuel management system designed for marine diesel engines. Based on the equipment shown in the supplied image, the unit is part of the Nabtesco marine governor platform used in conjunction with electronic actuators, engine remote control systems, and main engine automation equipment.

Nabtesco governor systems are designed to provide precise fuel delivery control, stable engine speed regulation, improved fuel efficiency, and enhanced operational reliability for marine propulsion engines. Modern Nabtesco governor systems utilize advanced digital control technology and electric actuator interfaces to optimize engine performance under varying operating conditions.

The Governor Control Unit continuously monitors engine operating conditions and automatically adjusts fuel delivery to maintain the desired engine speed. This ensures smooth vessel maneuvering, improved fuel economy, reduced emissions, and stable engine operation throughout the vessel's operating range.

For shipowners, ship managers, chief engineers, and marine operators, the Governor Control Unit represents one of the most important components within the engine automation system because it directly affects propulsion performance, maneuverability, fuel consumption, and engine protection.

4

PRODUCT OVERVIEW

The Nabtesco Governor Control Unit serves as the central processing and control platform within the marine governor system.

The unit receives information from multiple engine sensors and control interfaces including:

• Engine Speed Signals
• Fuel Rack Position Signals
• Actuator Feedback Signals
• Scavenge Air Pressure Inputs
• Engine Load Information
• Bridge Command Inputs
• Engine Control Room Commands
• Safety Interlock Signals

Based on these inputs, the controller calculates the required fuel command and sends output signals to the governor actuator, which adjusts fuel injection accordingly.

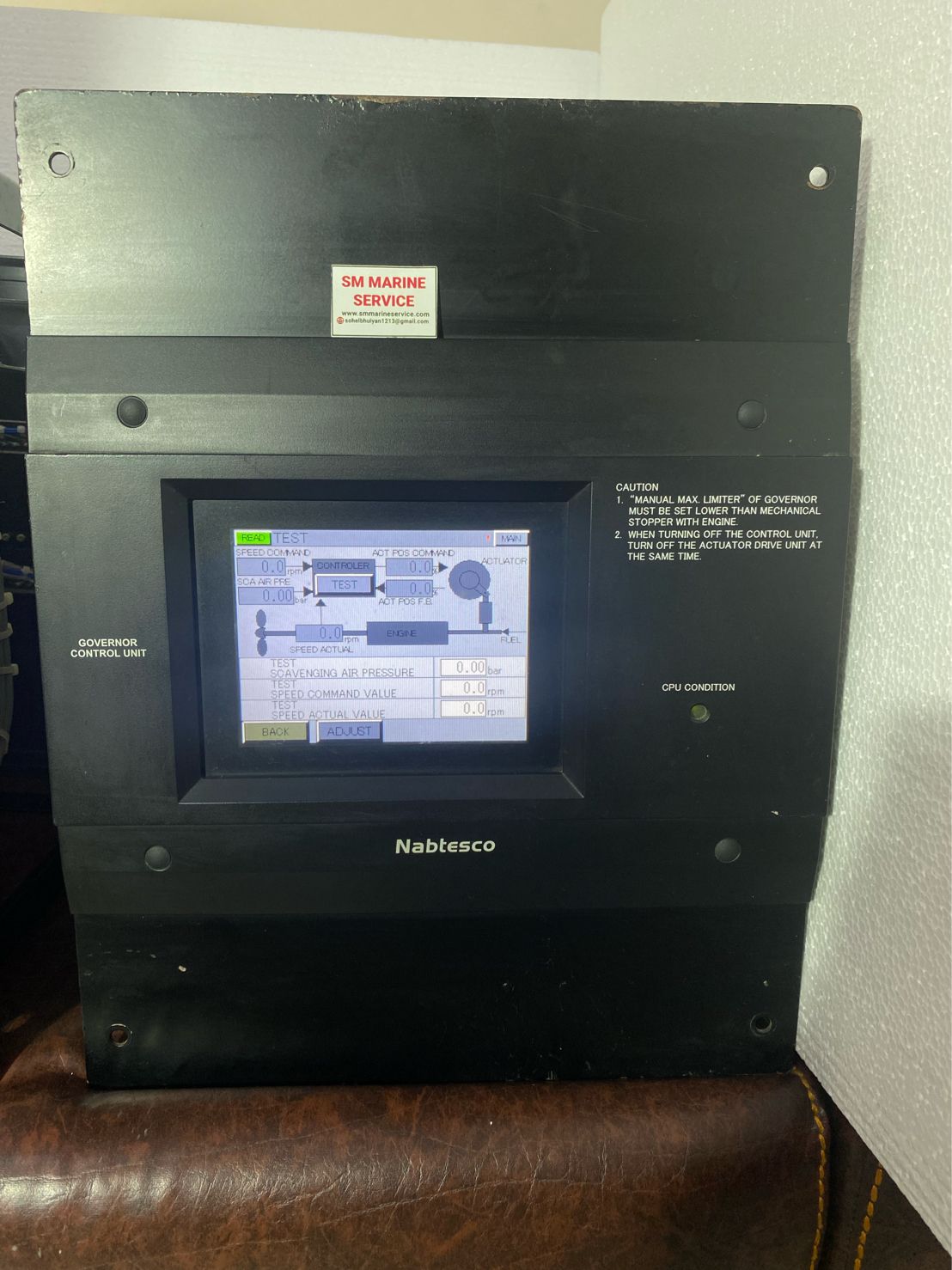

The display shown on the unit allows operators and engineers to monitor:

• Speed Command Value
• Actual Engine Speed
• Actuator Position
• Actuator Feedback
• Scavenge Air Pressure
• Fuel Control Status
• System Test Functions
• Diagnostic Information

Nabtesco governor systems are widely used on low-speed and medium-speed marine diesel engines where accurate speed regulation and reliable fuel control are critical for safe vessel operation. The MCG series governor controllers provide engine speed control, engine status monitoring, and remote operation capability from the bridge and engine control room.

4

KEY FEATURES

Digital Engine Speed Control

The Governor Control Unit continuously regulates engine speed through advanced digital control algorithms, ensuring stable operation under changing load conditions.

Precise Fuel Management

Accurate control of fuel delivery helps optimize engine performance while reducing unnecessary fuel consumption and emissions. Nabtesco governor systems are specifically designed to improve fuel efficiency and operational reliability.

Remote Control Capability

The system supports remote engine operation from the bridge and engine control room, enabling efficient vessel maneuvering and engine management.

Integrated Actuator Control

The Governor Control Unit works together with Nabtesco electric actuators such as the EAR series to provide precise fuel rack positioning and engine speed regulation.

Advanced Diagnostic Functions

Built-in diagnostic and monitoring functions assist engineers during troubleshooting, maintenance, and performance verification.

Engine Protection Functions

The governor system includes various protective features to prevent actuator damage and maintain safe operating limits. Documentation for the MG-800 governor system specifically references electrical limiter functions designed to protect the actuator assembly.

User-Friendly Interface

The LCD display provides clear access to operating parameters, diagnostics, testing functions, and maintenance information.

TECHNICAL SPECIFICATIONS

Actual specifications depend on the specific governor model, software version, engine type, and vessel configuration.

4

APPLICATIONS

The Nabtesco Governor Control Unit is used extensively throughout the global shipping industry.

Container Ships

Provides precise engine speed regulation and propulsion control during maneuvering and voyage operations.

Bulk Carriers

Supports stable engine performance under varying cargo and sea conditions.

Oil Tankers

Ensures reliable propulsion control and fuel management during cargo transportation.

Chemical Tankers

Maintains accurate engine speed regulation and operational reliability.

LNG Carriers

Supports efficient propulsion management and fuel optimization.

LPG Carriers

Provides dependable speed control and engine protection functions.

Offshore Vessels

Used in propulsion control systems requiring accurate speed regulation.

Passenger Ships

Supports smooth vessel operation and maneuverability.

Research Vessels

Provides stable propulsion control for scientific operations.

Fishing Vessels

Ensures reliable speed management and engine performance.

The Governor Control Unit may operate together with:

• Engine Remote Control Systems
• Bridge Maneuvering Systems
• Engine Monitoring Systems
• Alarm Monitoring Systems
• Power Management Systems
• Integrated Automation Systems
• Main Engine Actuators
• Fuel Injection Systems
• Vessel Safety Systems

4

SPARE PARTS SUPPORT

SM MARINE SERVICE™ provides support for sourcing and supply of:

• Governor Control Units
• CPU Boards
• Display Modules
• Communication Boards
• Power Supply Modules
• Actuator Drivers
• Interface Cards
• Keypads
• LCD Displays
• Governor Actuators
• Position Feedback Devices
• Control Cables

Both replacement units and reconditioned equipment may be available depending on stock availability and customer requirements.

REPAIR AND TECHNICAL SERVICES

SM MARINE SERVICE™ provides comprehensive support services for Nabtesco Governor Control Units.

Troubleshooting

Diagnosis of:

• Governor Alarms
• Speed Instability
• Actuator Errors
• Communication Failures
• Display Faults
• CPU Faults
• Position Feedback Problems
• Engine Speed Regulation Issues

Governor actuator failures can result from motor faults, controller faults, PCB failures, cable issues, and linkage adjustment problems.

Repair

Professional repair of control units, CPU boards, display assemblies, power supplies, communication modules, and governor electronics.

Calibration

Verification and adjustment of governor control parameters and actuator performance.

Testing

Complete functional testing and performance verification.

Overhaul

Inspection, cleaning, refurbishment, replacement of defective components, and system validation.

Technical Documentation Support

Support may be available for:

• User Manual
• Service Manual
• Installation Manual
• Wiring Diagram
• Adjustment Procedures
• Maintenance Documentation
• Spare Parts Information

Workshop and Onboard Service

Our engineers provide workshop repairs and onboard attendance services worldwide.

4

WHY CHOOSE SM MARINE SERVICE™

SM MARINE SERVICE™

Bangladesh Office
Samir Market, DT Road, Pahartali, Beside CDA Market, Chattogram, Bangladesh

China Warehouse and Support Center
Shanghai, China

SM MARINE SERVICE™ supplies both New Equipment and Reconditioned Equipment depending on customer requirements and budget.

We provide worldwide supply, sourcing, repair, calibration, technical support and spare parts services for marine automation, navigation, communication and marine electronic systems.

Website : https://www.smmarineservice.com

Email : info@smmarineservice.com

WhatsApp and Viber : +8801818929292

Marketing Contact: Nazmul Hasan Bhuiyan

Mobile WhatsApp and Viber : +8801730296909

CONCLUSION

The Nabtesco Governor Control Unit is a critical component within modern marine propulsion control systems, providing precise engine speed regulation, fuel management, actuator control, and engine protection. Its advanced digital control architecture helps improve fuel efficiency, enhance operational reliability, and support safe vessel operation. Nabtesco governor systems are specifically engineered to deliver stable and reliable control while integrating seamlessly with modern marine automation platforms.

For Nabtesco Governor Control Unit supply, repair, calibration, troubleshooting, spare parts, technical documentation support, reconditioned equipment, onboard service, and worldwide marine services, contact SM MARINE SERVICE™. Our experienced marine automation specialists support shipowners, ship managers, marine engineers, and vessel operators worldwide with professional governor system solutions.
