CLEANTRACK 1000 B
BRANNSTROM
Refurbished
The Brannstrom CleanTrack 1000 B is a fourth-generation Oil Discharge Monitoring Equipment (ODME) system developed for monitoring, recording, and controlling ballast and oily water discharge operations onboard tankers. The system is designed to comply with IMO Resolution MEPC.108(49), as amended by MEPC.240(65), and is approved for use with petroleum products, crude oils, and various biofuel blends.
The primary purpose of the CleanTrack 1000 B is to ensure that discharge operations remain within MARPOL environmental regulations while providing accurate monitoring and automatic recording of critical operational data. The system continuously calculates oil discharge performance and automatically controls discharge operations when limits are exceeded.
For shipowners, tanker operators, chief engineers, and marine superintendents, the CleanTrack 1000 B provides an essential layer of environmental protection and regulatory compliance. Accurate monitoring helps avoid environmental incidents, port state control deficiencies, detention risks, and costly penalties.
The CleanTrack 1000 B is a complete Oil Discharge Monitoring and Control System designed specifically for crude oil tankers, product tankers, and chemical tankers.
The system continuously collects information from multiple sources including:
Using this information, the system calculates the instantaneous oil discharge rate and determines whether discharge operations comply with MARPOL regulations. The system is designed to monitor, record, and control ballast discharge operations according to international environmental requirements.
One of the major advantages of the CleanTrack 1000 B is its compact design, allowing installation within hazardous cargo areas while reducing cabling, piping requirements, and bulkhead penetrations. This makes the system particularly attractive for retrofit projects and vessel upgrades.

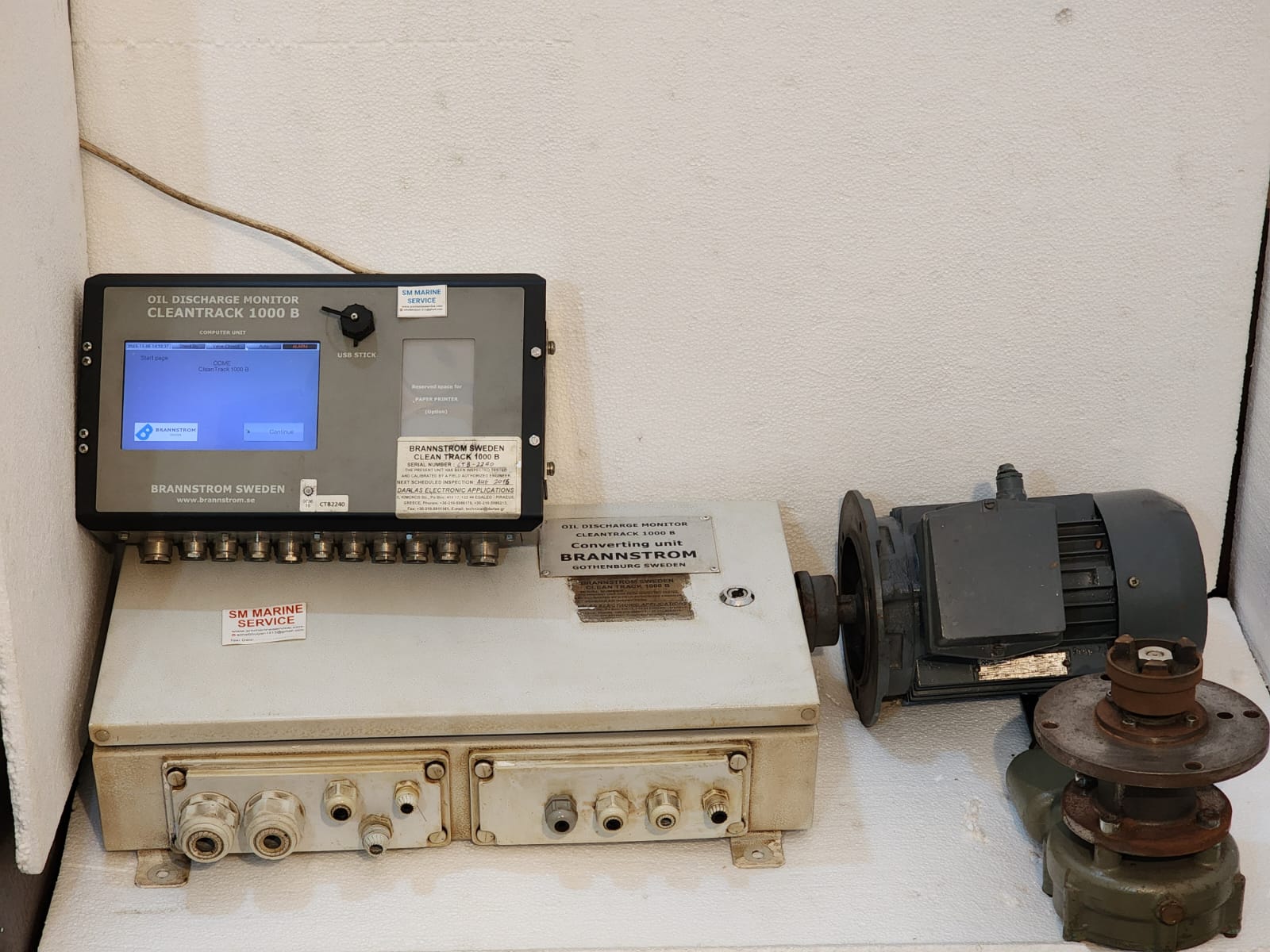

The displayed computer unit shown in the supplied image serves as the operator interface, providing access to system status, alarm monitoring, operational records, discharge calculations, USB data retrieval, configuration settings, and diagnostics.
The CleanTrack 1000 B is type-approved according to IMO Resolution MEPC.108(49) as amended by MEPC.240(65), ensuring compliance with international tanker discharge regulations.
The measuring principle utilizes transmitted and scattered light analysis within a measuring cell, allowing accurate detection of oil contamination while compensating for non-oil contaminants.
The system is specifically designed for installation within hazardous cargo areas and significantly reduces installation complexity compared with older-generation ODME systems.
Operational data, printer records, calibration information, and configuration files can be stored and retrieved through the integrated USB interface.
The detachable measuring cell can be easily removed and replaced with a calibrated unit, simplifying maintenance and reducing vessel downtime.
The system supports approved biofuel blends in addition to conventional petroleum products and crude oil applications.
The system includes extensive alarm management covering communication faults, sensor failures, discharge limits, flow abnormalities, GPS issues, sample pump faults, and measurement alarms.
| Parameter | Specification |
|---|---|
| Product Name | CleanTrack 1000 B |
| Manufacturer | Brannstrom Sweden AB |
| Equipment Type | Oil Discharge Monitoring Equipment (ODME) |
| Application | Tanker Environmental Compliance |
| Standard Compliance | IMO MEPC.108(49), MEPC.240(65) |
| Biofuel Approval | Supported |
| Data Storage | Integrated Logging |
| User Interface | LCD Touch Screen |
| Data Export | USB Interface |
| Communication | Integrated System Interfaces |
| Supply Voltage | 85–265 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | Approx. 30 W |
| Protection Rating | IP42 |
| Operating Temperature | 5°C to 50°C |
| Weight | Approx. 7 kg |
Technical data based on manufacturer documentation and operational manuals.
The Brannstrom CleanTrack 1000 B is primarily used onboard:
Monitoring ballast water discharge and ensuring compliance with environmental regulations.
Providing accurate discharge monitoring and operational recording.
Supporting environmental compliance during cargo and ballast operations.
Monitoring discharge activities during offshore loading and transportation operations.
Providing environmental monitoring and discharge management support.
The CleanTrack 1000 B can interface with:
The system continuously records operational information and provides detailed discharge records for inspections, audits, and regulatory verification.
SM MARINE SERVICE™ supports the supply and sourcing of:
Replacement units, refurbished assemblies, and reconditioned systems may be available depending on stock and customer requirements.
SM MARINE SERVICE™ provides complete support services for Brannstrom CleanTrack 1000 B systems.
Diagnosis of:
Professional repair of ODME computer units, electronic modules, communication boards, measuring cells, and associated control equipment.
Calibration and verification of oil concentration measurements, discharge calculations, and system performance.
Comprehensive functional testing to verify compliance and operational integrity.
Full inspection, cleaning, refurbishment, replacement of defective components, and operational testing.
Support may be available for:
Our engineers provide workshop repairs and onboard attendance worldwide for troubleshooting, calibration, maintenance, and commissioning.
SM MARINE SERVICE™
Bangladesh Office
Samir Market, DT Road, Pahartali, Beside CDA Market, Chattogram, Bangladesh
China Warehouse and Support Center
Shanghai, China
SM MARINE SERVICE™ supplies both New Equipment and Reconditioned Equipment depending on customer requirements and budget.
We provide worldwide supply, sourcing, repair, calibration, technical support and spare parts services for marine automation, navigation, communication and marine electronic systems.
Website : https://www.smmarineservice.com
Email : info@smmarineservice.com
WhatsApp and Viber : +8801818929292
Marketing Contact: Nazmul Hasan Bhuiyan
Mobile WhatsApp and Viber : +8801730296909
The Brannstrom CleanTrack 1000 B is a proven and highly respected Oil Discharge Monitoring Equipment system that helps tanker operators maintain compliance with MARPOL environmental regulations while ensuring accurate discharge monitoring and operational recording. Its compact design, advanced measuring technology, smart calibration features, and comprehensive alarm management make it one of the most practical ODME solutions available for both new installations and retrofit projects.
For Brannstrom CleanTrack 1000 B supply, repair, calibration, troubleshooting, spare parts, reconditioned equipment, onboard attendance, technical documentation support, and worldwide marine services, contact SM MARINE SERVICE™. Our experienced marine automation specialists support shipowners, tanker operators, ship managers, and marine engineers worldwide.
