Voyage Data Recorder (SVDR)
FURUNO Electric Co., Ltd.
Refurbished
The FURUNO VR-3000 and VR-3000S are marine voyage recording systems designed to continuously collect and preserve critical shipboard data for accident investigation, operational review and regulatory compliance.
The VR-3000 is a Voyage Data Recorder (VDR), while the VR-3000S is the Simplified Voyage Data Recorder (S-VDR) version. FURUNO’s official brochure confirms that the system architecture is built around a Data Collecting Unit (DCU), Data Recording Unit (DRU), Remote Alarm Panel and up to six microphones.

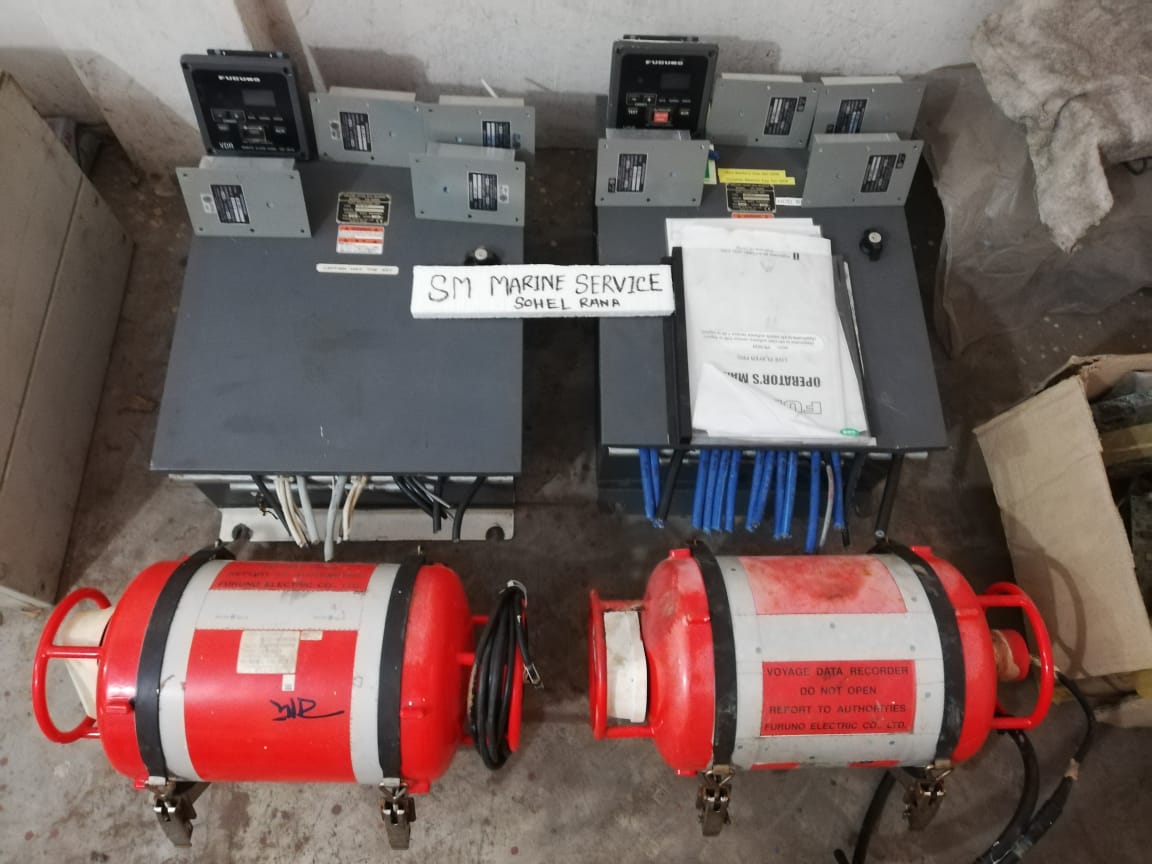

The supplied SM MARINE SERVICE™ image shows complete legacy FURUNO VDR assemblies including large recording/control cabinets and red protective recording capsules, which are among the most important replacement items in older VR-3000 installations.
Manufacturer: FURUNO Electric Co., Ltd.
Country of Origin: Japan
Models: VR-3000 / VR-3000S
Product Type: Voyage Data Recorder / Simplified Voyage Data Recorder
Marine Application: Recording of vessel navigation, communication, bridge audio and operational data
System Category: Marine Safety / Bridge Navigation Recording Equipment
Current Successor Family: FURUNO VR-7000 / VR-7000S
FURUNO currently markets the VR-7000/7000S as its active VDR/S-VDR platform.
The VR-3000 functions as the ship’s voyage-recording “black box.”
It collects data from navigation and bridge systems and stores that information in protected recording equipment so that events can be reconstructed after an accident or serious incident.
Depending on the vessel installation, recorded information can include:
• GPS position
• Date and time
• Ship speed
• Gyro heading
• Water depth
• Radar information
• Bridge audio
• VHF communication audio
• Steering commands
• Engine orders and responses
• Alarm conditions
• Door or hull-opening status
• Other connected navigation and machinery signals
The exact recorded channels depend on the vessel configuration and the VDR/S-VDR standard applicable to that installation.
FURUNO’s official brochure states that the VR-3000/3000S system includes the following core equipment:
The DCU collects navigation, sensor, audio and other vessel data before transferring it to the recording equipment.
The DRU stores the collected data in a protected recording arrangement.
The Remote Alarm Panel allows the bridge crew to monitor VDR operating status and receive system warnings.
The VR-3000/S supports up to six microphones, allowing bridge and relevant communication audio to be recorded.
The protective capsule is one of the most recognizable components of a marine VDR.
Its purpose is to preserve recorded data even in severe accident conditions so investigators can later recover information.
The red cylindrical units visible in the supplied photograph are characteristic protective recording capsules used in legacy Furuno VDR installations.
A damaged or failed capsule can require:
• Complete capsule replacement
• Capsule cable replacement
• Interface-board repair
• Recording-media diagnosis
• Connection testing
• System commissioning after replacement
Because the capsule is safety-critical, compatibility should always be confirmed by exact model and part number.
• Continuous voyage-data recording
• Navigation sensor recording
• Bridge audio recording
• VHF communication audio recording
• Radar/image recording capability depending on configuration
• Protected recording capsule
• Remote alarm/status monitoring
• Multiple microphone channels
• Modular interface architecture
• Suitable for merchant-vessel VDR/S-VDR installations
• Supports accident investigation and operational review
FURUNO specifically describes the VR-3000/S as a system consisting of data collection, protected recording, alarm monitoring and multiple bridge microphone inputs.
Depending on vessel configuration, a VR-3000 / VR-3000S installation may include:
• Data Collecting Unit (DCU)
• Data Recording Unit (DRU)
• Protective Recording Capsule
• Remote Alarm Panel
• Bridge Microphone Units
• VHF Audio Interface
• Radar Interface Module
• Navigation Sensor Interface
• Analogue Input Module
• Digital Input Module
• Power Supply Unit
• Backup Battery
• Internal Storage Media
• Processor Boards
• Communication Boards
• Interface PCBs
• Cables & Connectors
A properly configured VDR can receive data from systems such as:
GPS – position, time and course information.
Gyrocompass – vessel heading.
Speed Log – ship speed.
Echo Sounder – water depth.
Radar – navigational radar image/data.
AIS – target and vessel information.
VHF – bridge radio communication audio.
Bridge Microphones – conversations and audible alarms.
Autopilot / Steering System – steering-related information.
Engine Control System – engine orders and responses where interfaced.
This creates a synchronized timeline of vessel operation.
The VR-3000 and VR-3000S can be found aboard:
• Container Ships
• Bulk Carriers
• Oil Tankers
• Chemical Tankers
• LNG/LPG Carriers
• Passenger Ships
• Cargo Ships
• Offshore Vessels
• Merchant Ships
They are particularly relevant to ship owners and managers maintaining legacy Furuno bridge systems.
Inspect:
• Incoming power supply
• Fuses / circuit protection
• DCU power supply
• Internal power boards
• Connectors and cabling
Check:
• Capsule cable
• Capsule connector
• DCU/DRU interface
• Internal communication board
• Protective capsule status
Do not replace the capsule before confirming that the communication path is actually faulty.
Inspect:
• Microphone unit
• Microphone cable
• Audio input board
• Channel configuration
• Connector condition
Check microphone input levels, interface hardware and recording configuration.
Inspect radar video/interface connections and image-recording equipment.
Verify the external sensor first, then check the associated VDR interface module and cabling.
Potential causes can include:
• Internal storage failure
• Processor fault
• DCU/DRU communication fault
• Power problem
• Interface-board failure
Check panel power, communication cable and DCU interface before replacing the panel.
Possible service conditions can include:
• Recording failure
• Data input missing
• Protective capsule communication fault
• Microphone/audio input failure
• Storage-media fault
• Power-supply alarm
• Internal communication error
• Remote alarm-panel fault
Exact alarm wording should always be checked against the applicable Furuno VR-3000 manual and software revision.
• Test all bridge microphone channels periodically.
• Verify GPS, gyro, speed-log and echo-sounder inputs.
• Confirm radar/image recording where configured.
• Check protective capsule communication.
• Inspect backup battery condition.
• Keep DCU/DRU ventilation clean.
• Inspect interface cables and terminals.
• Carry out playback tests when permitted.
• Investigate intermittent recording alarms immediately.
• Ensure Annual Performance Tests are completed through appropriate service arrangements.
SM MARINE SERVICE™ can support sourcing of FURUNO VR-3000 and VR-3000S complete systems and spare parts, depending on stock availability.
Typical requirements include:
• Complete VR-3000 VDR
• Complete VR-3000S S-VDR
• Data Collecting Unit
• Data Recording Unit
• Protective Capsule
• Remote Alarm Panel
• Bridge Microphone
• Waterproof Microphone
• Interface Modules
• Radar Interface Components
• Navigation Data Interface Boards
• Audio Boards
• Processor Boards
• Power Supply
• Backup Battery
• Storage Media
• PCBs / Electronic Boards
• Cables & Connectors
• Internal Electronic Parts
Available condition may include:
New • Used • Tested Working • Refurbished • Reconditioned
FURUNO’s current VDR/S-VDR product line is the VR-7000 / VR-7000S.
The newer VR-7000 platform adds modern capabilities such as:
• Up to 30 days / 720 hours of internal SSD recording
• Radar and ECDIS image recording
• Modern LAN-based sensor integration
• Updated interface architecture.
For an older VR-3000 installation, a vessel generally has two options:
Option 1: Repair or replace the failed VR-3000 component.
Option 2: Upgrade the complete system to VR-7000 / VR-7000S when legacy support becomes impractical.
Legacy VDR systems are often deeply integrated with multiple bridge systems.
Replacing only one failed component can avoid major modifications to:
• Radar interfaces
• GPS wiring
• Gyro interfaces
• Speed-log connections
• Echo-sounder input
• Bridge microphone cabling
• VHF audio input
• Existing bridge console installation
For this reason, good tested VR-3000 spare parts remain valuable in the marine equipment market.
The VR-3000 is a marine Voyage Data Recorder designed to record critical vessel navigation, bridge audio and operating data.
The VR-3000S is the Simplified Voyage Data Recorder (S-VDR) version of the same product family.
FURUNO identifies the Data Collecting Unit, Data Recording Unit, Remote Alarm Panel and up to six microphones as major system elements.
Yes. The system supports multiple bridge microphone channels.
It is the protected recording capsule used to preserve recorded voyage information for later recovery.
Yes. Complete capsules and other VR-3000 components may be sourced subject to exact model and compatibility.
Used, tested, refurbished and reconditioned components may still be available through the marine spare-parts market.
The current Furuno product family is VR-7000 / VR-7000S.
SM MARINE SERVICE™ can support sourcing of recording units, capsules, microphones, interface boards, alarm panels and other Furuno VDR components.
Yes. Worldwide shipping can be arranged according to stock and destination.
FURUNO VR-3000 VDR / VR-3000S S-VDR is a professional marine voyage recording system consisting of Data Collecting Unit, Data Recording Unit, protective recording capsule, Remote Alarm Panel and bridge microphone equipment. SM MARINE SERVICE™ can support worldwide supply of complete systems, protective capsules, recording units, microphones, PCBs and other Furuno VDR spare parts in used, tested, refurbished and reconditioned condition.
The official FURUNO brochure provides system configuration and technical information for both the VR-3000 VDR and VR-3000S S-VDR.
Download FURUNO VR-3000 / VR-3000S Official PDF
FURUNO's current VDR/S-VDR family is the VR-7000 / VR-7000S.
FURUNO VR-7000 / VR-7000S Official Product Page
FURUNO's official VDR section provides current Voyage Data Recorder product and support information.
FURUNO Official VDR Information
