Voyage Data Recorder (SVDR)
FURUNO Electric Co., Ltd.
Refurbished
Manufacturer: FURUNO Electric Co., Ltd.
Country of Origin: Japan
Exact Model: VR-3000
Product Type: Voyage Data Recorder (VDR)
Related Model: VR-3000S Simplified Voyage Data Recorder (S-VDR)
Marine Application: Continuous recording of ship navigation, bridge audio, VHF communication, radar images and other safety-related voyage information.
The supplied SM MARINE SERVICE™ photograph shows the internal equipment of a FURUNO VR-3000-series Data Collecting Unit installation, including its processor/interface area, terminal connections, backup batteries and power control section.
The FURUNO VR-3000 Voyage Data Recorder is a marine safety recording system developed to preserve important information about a vessel's operation before and during an incident.
Similar in principle to an aircraft flight recorder, the VDR collects navigation data, bridge conversations, VHF communications, radar information and other required shipboard signals so investigators can reconstruct events following a maritime casualty.
FURUNO documentation identifies two closely related systems: the VR-3000 VDR and VR-3000S S-VDR. The main distinction is the amount of information required to be recorded.
The VR-3000 continuously receives information from various navigation, communication and bridge systems and stores the collected data for later retrieval.
According to FURUNO's official manual, the basic system consists of a Data Collecting Unit (DCU), Data Recording Unit (DRU), Remote Alarm Panel (RAP) and bridge microphones. The full VR-3000 additionally uses a Junction Box.
The DCU processes incoming information in chronological order before transferring essential information to the protected recording unit.
The protective DRU is particularly important because it is designed to preserve recorded information following a serious casualty.
The VR-3000 was engineered as a complete marine voyage recording platform. Important features include:
FURUNO states that the system was designed around relevant IMO and IEC VDR requirements of its generation.
| Item | VR-3000 |
|---|---|
| Equipment Type | Voyage Data Recorder |
| Main Recording Unit | Protected DRU |
| Main Data Collection | Data Collecting Unit |
| Standard Recording Period | 12 hours |
| Backup Storage | HDD |
| DCU–DRU Interface | IEEE 1394 |
| Time Reference | UTC synchronized |
| Emergency Backup | Battery-supported bridge audio recording |
| Bridge Audio Backup after Main Power Failure | Approx. 2 hours |
| Associated Model | VR-3000S S-VDR |
| Original Compliance | IMO A.861(20), IEC 61996 and relevant standards |
The exact configuration can vary depending on vessel installation and optional interfaces.
The VR-3010 is a key component of the VR-3000 installation. It houses the processing equipment, interfaces and backup power arrangement used to collect and process incoming vessel data.
The user's photograph provides a useful internal view of this type of data-collecting equipment.

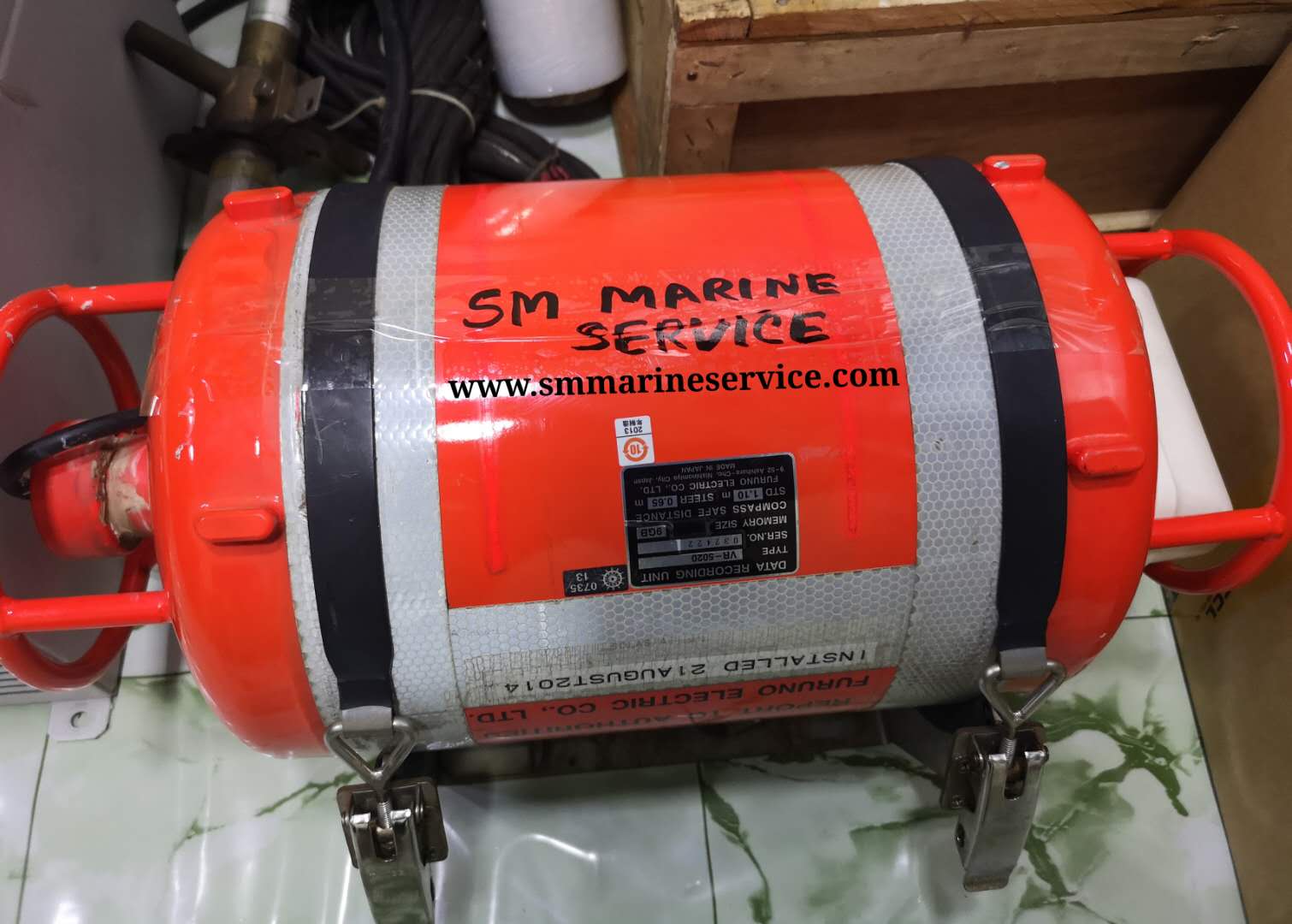

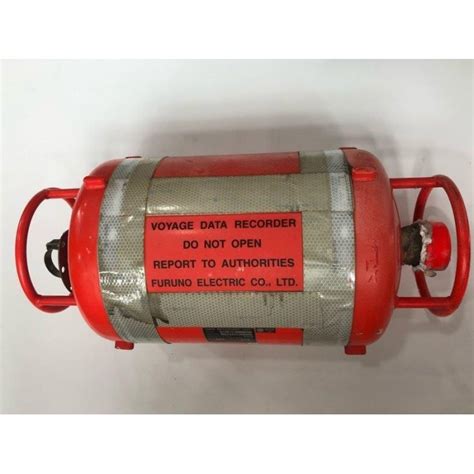

The protected VR-5020 DRU stores voyage information transferred from the DCU. The protective capsule and its underwater locating capability are intended to assist data recovery after an accident.
The RAP allows bridge personnel to monitor recorder condition. FURUNO's operating guide identifies SAVE, NORMAL and ERROR status indications.
Microphones capture bridge conversation and acoustic information. FURUNO lists models including VR-5011 and waterproof VR-3012W among VR-3000-series components/accessories.
The DCU incorporates backup batteries, while a backup hard disk provides an additional means of storing and retrieving recorded information.
The FURUNO VR-3000 can collect information from numerous shipboard systems, depending on vessel configuration and regulatory requirements.
Typical inputs include:
Gyrocompass heading • Ship position • Speed • Echo sounder/depth • Radar information • Bridge audio • VHF communication • Engine/propulsion status • Rudder information • Alarm information • Watertight/fire-door status and other required vessel data
This recorded information can be extremely valuable for casualty investigation, operational review and reconstruction of events.
Check AC and DC supplies, breakers, terminal connections and power distribution before suspecting processor failure.
The VR-3000 DCU incorporates separate indications/control associated with battery backup, DC supply and AC supply.
The Remote Alarm Panel and DCU provide an ERROR indication when the system detects an abnormal condition.
Engineers should inspect the system status and identify the affected recording or interface function rather than simply resetting the equipment.
FURUNO documentation notes that the SAVE indication can illuminate when the backup HDD is disconnected. Therefore, an HDD connection or hardware issue should be investigated when this indication occurs unexpectedly.
Communication between the DCU and protected DRU uses an IEEE 1394 connection. A damaged cable, loose connector, DRU problem or interface fault can interrupt recording.
FURUNO lists IEEE1394 Cable Assembly part 000-166-051-14 among VR-3000 parts.
Aging batteries are an important maintenance concern in older VR-3000 installations. Inspect battery condition and associated charging circuitry according to the maintenance schedule.
Poor or missing bridge audio can result from microphone failure, damaged wiring, interface faults or channel configuration problems.
When individual navigation data is absent while the rest of the VDR operates normally, inspect the relevant shipboard source, interface module, signal wiring and configuration.
A failed or deteriorated fan can cause thermal problems inside the DCU. FURUNO lists Fan Motor 109P0924W407, part 000-157-834-12 for the VR-3000 family.
FURUNO's simplified operating instructions document three important indications:
NORMAL – Green: Indicates normal operation.
ERROR – Red: Indicates that an error has been detected.
SAVE – Yellow: Associated with stopping recording onto the backup HDD; the indication can also illuminate when the backup HDD is disconnected.
The exact cause of an ERROR condition should always be diagnosed using the official operator/service procedures. Alarm codes should not be assumed.
Inspect the VR-3000 DCU, DRU, Remote Alarm Panel, bridge microphones and associated cabling during scheduled maintenance.
Check backup batteries for age and condition and replace them according to manufacturer/service requirements.
Keep ventilation paths and cooling fans clean.
Inspect IEEE 1394 and sensor/interface connections for looseness, corrosion or physical deterioration.
Confirm that bridge microphones remain unobstructed and functional.
Test system alarms and indicators periodically according to vessel procedures.
Verify that recorded data can be retrieved using the correct FURUNO playback/data-extraction procedure.
Any work involving the protective DRU, configuration or statutory VDR functionality should be carried out by appropriately qualified personnel.
Typical FURUNO VR-3000 spare parts and replacement requirements can include:
VR-3010 Data Collecting Unit • VR-5020 Data Recording Unit • VR-3016 Remote Alarm Panel • VR-5011 Bridge Microphone • VR-3012W Waterproof Microphone • Backup HDD • Backup Batteries • Power Supply Components • Processor/Interface Electronics • PCB Assemblies • Fan Motor • IEEE1394 Cable • Junction Box • VHF Interface Unit IF-5200 • Cables • Connectors • Internal Electronic Parts
Verified FURUNO parts include 000-157-834-12 Fan Motor 109P0924W407 and 000-166-051-14 IEEE1394 Cable Assembly.
SM MARINE SERVICE™ can support sourcing of New, Used, Refurbished, Reconditioned and Tested Working FURUNO VR-3000 equipment and spare parts, depending on availability.
The VR-3000 is now a legacy system. FURUNO officially lists the VR3000 as No Longer Available and recommends the newer VR7000 for current replacement requirements.
However, many vessels may still have legacy VR-3000 installations in service. Maintaining an existing installation can create continued demand for VR-3010 DCUs, VR-5020 recording capsules, VR-3016 panels, microphones, interface boards, HDDs, batteries, cables and other replacement parts.
Any complete-system replacement should consider current statutory and class requirements rather than assuming that an older component can simply be exchanged for a different VDR generation.
What is the FURUNO VR-3000?
The VR-3000 is a FURUNO Voyage Data Recorder designed to continuously record important navigation, communication and bridge information for casualty investigation.
Who manufactures the VR-3000?
The system was manufactured by FURUNO Electric Co., Ltd., Japan.
What is the difference between VR-3000 and VR-3000S?
The VR-3000 is a full VDR, while VR-3000S is a Simplified Voyage Data Recorder. FURUNO explains that the principal difference is the amount of information required to be recorded.
Is the FURUNO VR-3000 still manufactured?
FURUNO currently identifies the VR3000 as No Longer Available and recommends VR7000 as the newer product route.
Where can I buy FURUNO VR-3000 spare parts?
SM MARINE SERVICE™ can support sourcing of legacy VR-3000 complete units and individual replacement components subject to availability.
Can I buy a used or refurbished VR-3000?
Used, tested, refurbished or reconditioned VR-3000 components can be suitable for legacy-system support when their condition and compatibility have been properly verified.
What does the VR-3000 record?
Depending on configuration, it records essential navigation/status information, bridge conversations, VHF communication and radar information.
What is the replacement for FURUNO VR-3000?
FURUNO's current support page recommends the VR7000 after marking VR3000 no longer available.
Where can I download the FURUNO VR-3000 manual?
Official FURUNO operator and installation documentation is available below.
Can SM MARINE SERVICE™ supply VR-3000 worldwide?
Yes, SM MARINE SERVICE™ supports worldwide marine equipment sourcing and shipping, subject to equipment and spare-parts availability.
The FURUNO VR-3000 Voyage Data Recorder (VDR) is a legacy marine safety recording system designed to continuously capture important vessel navigation, bridge audio, VHF, radar and operational information. Major system components include the Data Collecting Unit, protected Data Recording Unit, Remote Alarm Panel, bridge microphones, interface equipment, backup HDD and batteries. SM MARINE SERVICE™ supports worldwide sourcing of FURUNO VR-3000 complete units and replacement spare parts.
