VOLCANO FLAME DETECTOR RDV-1005-200 RELAY
VOLCANO
New product
The VOLCANO Flame Detector Relay RDV-1005-200 is a critical component used in marine boiler and burner management systems for continuous flame supervision and combustion safety. Manufactured by Volcano Co., Ltd., a globally recognized supplier of marine combustion equipment, this relay ensures safe boiler operation by monitoring flame conditions and initiating protective actions when abnormal combustion conditions are detected.
Marine auxiliary boilers, exhaust gas economizers, thermal oil heaters, and incinerators depend on reliable flame monitoring systems to maintain safe and efficient combustion. The RDV-1005-200 relay works together with flame sensors and burner control systems to verify flame presence during ignition, normal operation, and shutdown sequences.
By preventing fuel accumulation and detecting flame failure immediately, the VOLCANO flame detector relay helps reduce operational risks, improve boiler reliability, and maintain compliance with marine safety requirements.
The VOLCANO RDV-1005-200 Flame Detector Relay is designed to receive flame signals from the flame sensing system and process them through an electronic detection network. When a valid flame signal is detected, the relay maintains burner operation. If the flame signal disappears or falls below the acceptable threshold, the relay initiates safety shutdown procedures.

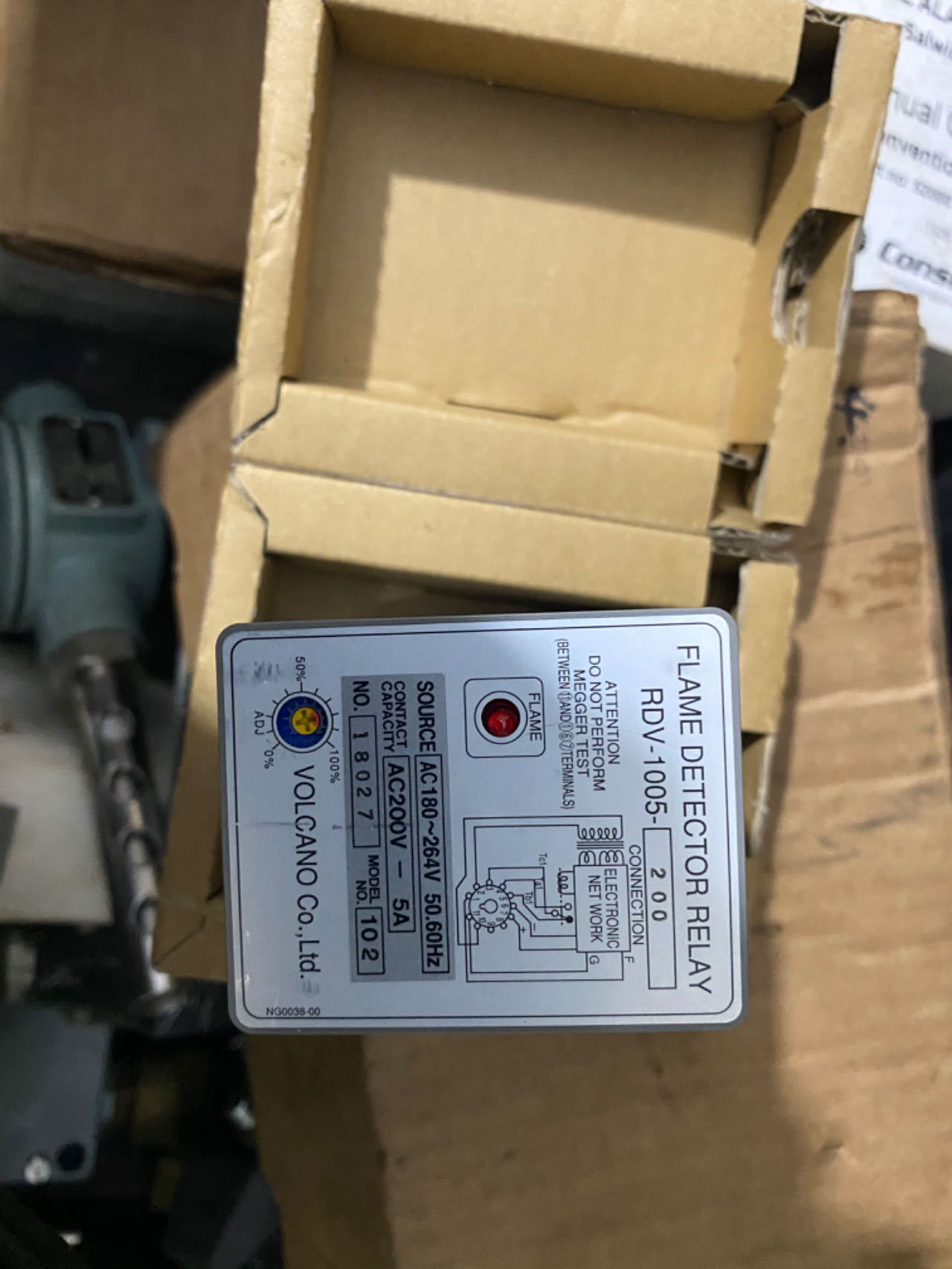

The relay shown in the product image includes:
The unit forms an essential part of the burner safety chain used in marine boiler automation systems.
The RDV-1005-200 continuously supervises burner flame conditions and verifies stable combustion throughout boiler operation.
The relay rapidly detects flame loss and immediately activates protective shutdown sequences to prevent hazardous fuel accumulation.
Built-in adjustment functionality allows optimization of flame detection performance according to burner operating conditions.
The electronic detection network is designed for dependable operation in marine engine room environments.
A dedicated flame indicator enables engineers to monitor flame detection status during operation and troubleshooting.
The relay can be integrated with burner management systems, ignition systems, and combustion control circuits commonly used onboard ships.
Reliable flame supervision contributes directly to safe and efficient boiler operation while reducing risks associated with combustion failures.
| Parameter | Specification |
|---|---|
| Product Name | Flame Detector Relay |
| Model | RDV-1005-200 |
| Manufacturer | Volcano Co., Ltd. |
| Equipment Type | Flame Monitoring Relay |
| Supply Voltage | AC 180–264V |
| Frequency | 50/60 Hz |
| Contact Rating | AC 200V, 5A |
| Application | Boiler Flame Supervision |
| Detection Method | Electronic Flame Monitoring |
| Installation | Burner Control System |
| Industry | Marine and Industrial |
| Function | Flame Detection and Safety Shutdown |
Specifications should be verified against the applicable Volcano technical manual and system configuration.
The VOLCANO RDV-1005-200 Flame Detector Relay is widely used in marine combustion systems including:
Supports auxiliary boiler combustion safety and reliable steam generation.
Used in boiler burner systems for cargo and machinery support operations.
Provides flame supervision within auxiliary boiler and thermal oil heating systems.
Ensures safe burner operation within vessel heating systems.
Supports boiler combustion monitoring and safety protection functions.
Used in marine heating systems requiring reliable burner management.
Provides dependable flame monitoring for utility boilers and process heating equipment.
Ensures safe operation of onboard steam generation systems.
Supports heating and utility systems requiring reliable combustion monitoring.
Used in auxiliary boiler and heating applications.
The relay may be integrated with:
SM MARINE SERVICE™ provides sourcing and supply support for:
We support ship owners, ship managers, shipyards, offshore operators, and marine engineers worldwide.
SM MARINE SERVICE™ offers professional services for marine boiler automation and combustion control equipment including:
Technical support may include:
Samir Market, DT Road, Pahartali, Beside CDA Market, Chattogram, Bangladesh
Shanghai, China
SM MARINE SERVICE™ supplies both New Equipment and Reconditioned Equipment depending on customer requirements and budget.
We provide worldwide supply, sourcing, repair, calibration, technical support and spare parts services for marine automation, navigation, communication and marine electronic systems.
Website : https://www.smmarineservice.com
Email : info@smmarineservice.com
WhatsApp and Viber : +8801818929292
Marketing Contact: Nazmul Hasan Bhuiyan
Mobile WhatsApp and Viber : +8801730296909
The VOLCANO Flame Detector Relay RDV-1005-200 is an essential safety component for marine boiler and burner management systems, ensuring reliable flame supervision and protecting vessels from combustion-related hazards. Its dependable performance, adjustable sensitivity, and integration capability make it a valuable part of marine boiler automation systems worldwide.
For VOLCANO RDV-1005-200 supply, spare parts, troubleshooting, repair services, technical documentation, reconditioned equipment, and worldwide marine support, contact SM MARINE SERVICE™. We provide complete marine automation, boiler control, combustion control, navigation, communication, and electronic equipment solutions for the global shipping industry.
