Marine ECDIS Systems
Japan Radio Co., Ltd. (JRC)
Refurbished
The JRC JAN-9201 is a professional Electronic Chart Display and Information System (ECDIS) manufactured by Japan Radio Co., Ltd. (JRC), Japan. It is designed for voyage planning, route monitoring and safe navigation aboard commercial vessels.
The JAN-9201 features a 26-inch WUXGA color display with 1920 × 1200 resolution, high-speed chart processing and JRC's jGUI user interface. JRC confirms that the system conforms to relevant IMO ECDIS performance requirements and supports major ENC services.
Manufacturer: Japan Radio Co., Ltd. (JRC)
Country of Origin: Japan
Exact Model: JAN-9201
Product Type: Electronic Chart Display and Information System (ECDIS)
Display: 26-inch WUXGA Color LCD
Resolution: 1920 × 1200 pixels
Marine Application: Voyage planning, route monitoring and bridge navigation
Related Model: JRC JAN-7201 (19-inch ECDIS)

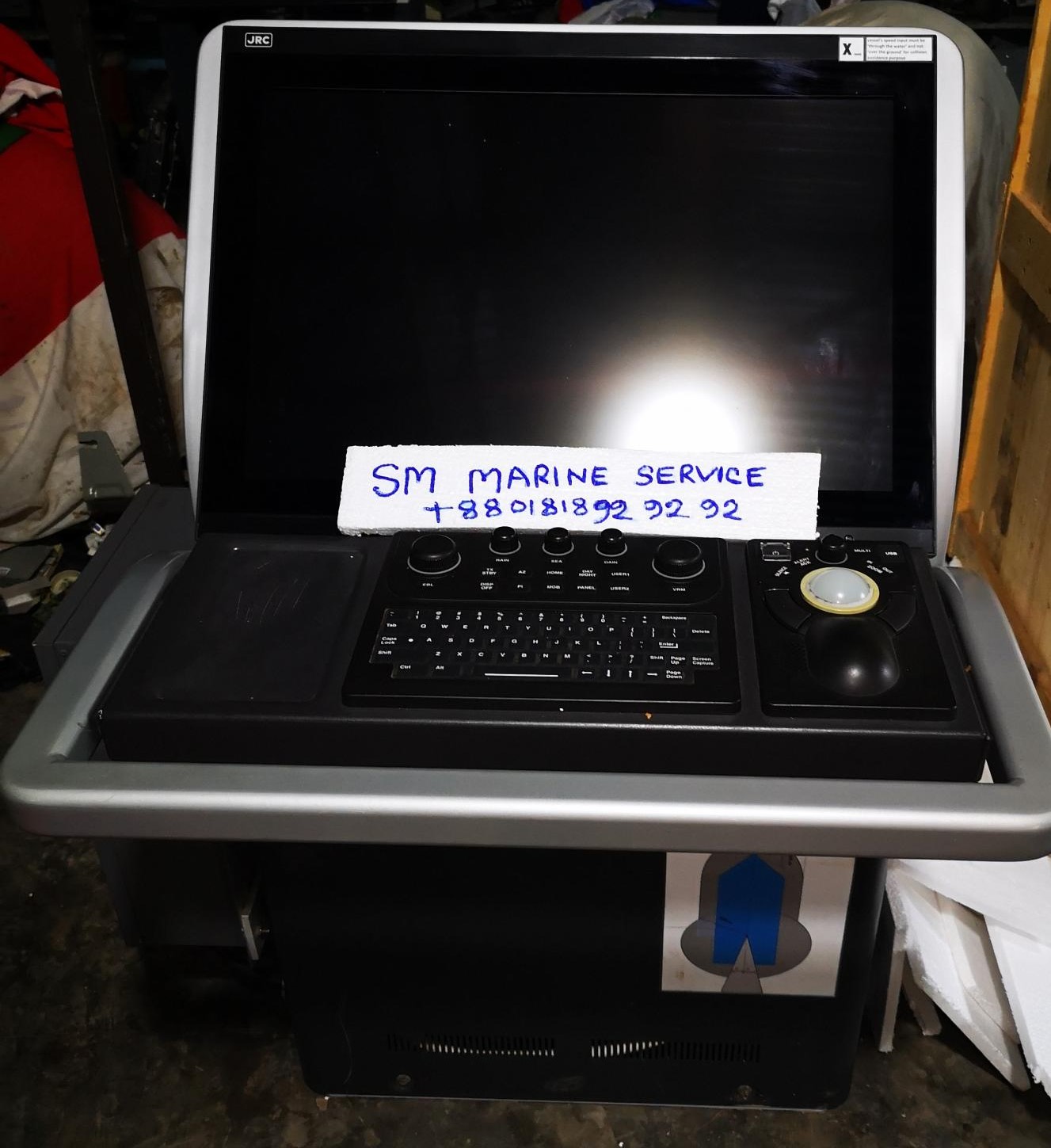

The equipment shown in the supplied stock photograph matches the characteristic JAN-9201 family console arrangement with large display, keyboard controls and trackball operating section.
The JAN-9201 provides electronic navigational chart display together with voyage-planning and route-monitoring functions.
It can combine navigational chart information with data from shipboard systems such as AIS and radar/target tracking, helping bridge officers maintain situational awareness. The system also provides safety functions to warn operators when approaching potentially dangerous areas.
JRC designed the JAN-9201 with an icon-based jGUI interface to simplify operation and keep important navigational information in consistent positions on the display.
• 26-inch WUXGA color LCD display
• 1920 × 1200 pixel resolution
• High-speed electronic chart drawing
• JRC jGUI intuitive user interface
• ENC and raster chart support
• Route planning and route safety checking
• Up to four routes displayed during route editing
• AIS target display
• Target Tracking (TT) integration
• Optional radar overlay
• True Motion and Relative Motion display
• North Up, Course Up, Head Up and Waypoint Up modes
• Multi-window chart display
• Navigation-data and logbook playback
• Self-diagnostic function
• Remote maintenance function
• Optional Track Control System support
JRC also provides software-license-based expansion for selected optional functions.
Model: JAN-9201
Display: 26-inch WUXGA Color LCD
Resolution: 1920 × 1200 pixels
Main Memory: 2 GB
Storage: SSD × 2
Optical Drive: DVD Drive × 1
Power Supply: 100–115 VAC / 220–240 VAC, 50/60 Hz, or 24 VDC
Rated Power Consumption: Approx. 240 VA
Chart Scale: 1:1,000 to 1:20,000,000 for WUXGA
Range: 0.125 / 0.25 / 0.5 / 0.75 / 1.5 / 3 / 6 / 12 / 24 / 48 / 96 NM
Operating Temperature: -15°C to +55°C
The JAN-9201 supports S-57/S-63 ENC data and services including AVCS and NAVTOR, while raster-chart support includes ARCS.
The JAN-9201 is a modular ECDIS installation. Important documented components include:
• NWZ-208 – 26-inch Display Unit
• NDC-1590 / NDC-1590A – Central Control Unit
• NBD-913 – Power Supply Unit
• NCE-5605 – Trackball Operation Unit
• NCE-5625 – Optional Keyboard Operation Unit
• NQE-1143 – Optional Junction Box
• NQA-2443/A – Sensor LAN Switch Unit
• CWB-1595 – 26-inch Desktop Frame
• CWA-246 – 26-inch Display Mount Kit
These exact model numbers are especially valuable when searching for JRC JAN-9201 replacement parts.
The JAN-9201 provides both True Motion (TM) and Relative Motion (RM) operation.
Supported navigational functions include:
• Route creation and graphical editing
• Waypoint addition and deletion
• Alternative route creation
• Route copying and connection
• CSV route import/export
• Route safety checking
• Own-ship position monitoring
• Course-deviation monitoring
• Water-depth and obstacle monitoring
• Prohibited-area approach monitoring
• Waypoint and arrival-time monitoring
The system can display up to 500 AIS targets, expandable to 1,000 through an optional function, and supports up to 200 TT targets under the specified configuration.
The JRC JAN-9201 is suitable for bridge navigation installations aboard:
• Container Ships
• Bulk Carriers
• Oil & Chemical Tankers
• LNG/LPG Carriers
• Cargo Ships
• Passenger Ships
• Offshore Vessels
• Other SOLAS-class commercial vessels
It functions as a central bridge-navigation tool for electronic chart presentation, voyage planning and continuous route monitoring.
Check incoming AC/DC supply, circuit protection, cabling and the NBD-913 Power Supply Unit before suspecting the central processor.
Confirm display power and connections between the NWZ-208 display and central control equipment. A display fault should be distinguished from a complete processor or power-supply failure.
Check the NDC-1590/A central control unit, storage devices and power condition. Software or SSD-related problems require diagnosis before replacing hardware.
Inspect the navigation sensor interface and verify that the external position sensor is providing valid data to the ECDIS.
Check the gyro interface, cabling and input configuration. The ECDIS depends on valid external heading information.
Verify AIS input, interface configuration and communication cabling before assuming a JAN-9201 processor failure.
Inspect the NCE-5605 trackball unit, NCE-5625 keyboard where installed, associated cables and connectors.
Check chart permits, ENC media/data, licensing and software compatibility before attempting hardware repair.
Because navigation equipment is safety-critical, component replacement and software servicing should be carried out by appropriately qualified personnel.
The JAN-9201 provides safety monitoring for conditions including route deviation, approaching dangerous or prohibited areas, waypoint monitoring and other navigational conditions.
Exact alarm wording can depend on software/configuration, so alarm codes should be checked against the applicable JRC instruction manual rather than assumed.
• Keep the display and control surfaces clean and dry.
• Inspect trackball and keyboard operation periodically.
• Check ventilation openings for dust accumulation.
• Inspect power and signal connectors.
• Verify GPS, gyro, speed log and AIS sensor inputs.
• Maintain valid and updated electronic navigational charts.
• Back up appropriate route/user data according to vessel procedures.
• Monitor SSD and central control performance.
• Check the installed ECDIS software/version status during scheduled service.
JRC maintains an official ECDIS software/type-approval status page. As of its published status information, JAN-9201 software versions through Application 01.60 are documented.
SM MARINE SERVICE™ can support sourcing of JRC JAN-9201 ECDIS complete units and replacement components, depending on availability.
Common requirements include:
• Complete JRC JAN-9201 ECDIS
• NWZ-208 Display Unit
• NDC-1590 / NDC-1590A Central Control Unit
• NBD-913 Power Supply Unit
• NCE-5605 Trackball Operation Unit
• NCE-5625 Keyboard Operation Unit
• NQE-1143 Junction Box
• NQA-2443/A Sensor LAN Switch
• Processor and electronic modules
• SSD / storage-related components
• PCBs and internal electronics
• Interface modules
• Cables and connectors
SM MARINE SERVICE™ can support sourcing of new, used, refurbished, reconditioned and tested working equipment, depending on stock availability.
The JAN-9201 remains relevant because it is a capable IMO-compliant ECDIS platform with modern electronic-chart, route-planning, AIS/TT integration and safety-monitoring functions.
Importantly, JRC still maintains an official JAN-9201/7201 product page and software/type-approval information, making the JAN-9201 different from many older unsupported legacy ECDIS models.
JRC JAN-9201 is a 26-inch Electronic Chart Display and Information System designed for shipboard voyage planning and route monitoring.
The JAN-9201 is manufactured by Japan Radio Co., Ltd. (JRC), Japan.
The JAN-9201 uses a 26-inch WUXGA color LCD with 1920 × 1200 resolution.
SM MARINE SERVICE™ can support worldwide supply and sourcing of JAN-9201 complete systems and replacement components subject to stock availability.
Yes. Display units, central control units, power supplies, trackball units, keyboard units, interface equipment and other components may be sourced depending on availability.
Yes. Used, tested working, refurbished and reconditioned JAN-9201 equipment may be available.
One major difference is display size: JAN-9201 uses a 26-inch WUXGA display, while JAN-7201 uses a 19-inch SXGA display.
Yes. JRC specifies radar overlay as an optional software-licensed function requiring the appropriate interface arrangement.
Yes. The system supports AIS target presentation and can display up to 500 AIS targets as standard, with expansion to 1,000 available as an option.
Yes. Worldwide marine-equipment sourcing and shipping can be arranged according to availability and destination.
JRC JAN-9201 ECDIS is a 26-inch WUXGA Electronic Chart Display and Information System manufactured by Japan Radio Co., Ltd. for professional ship navigation, route planning and route monitoring. SM MARINE SERVICE™ can supply complete JAN-9201 systems and spare parts in new, used, refurbished, reconditioned or tested working condition, subject to availability.
