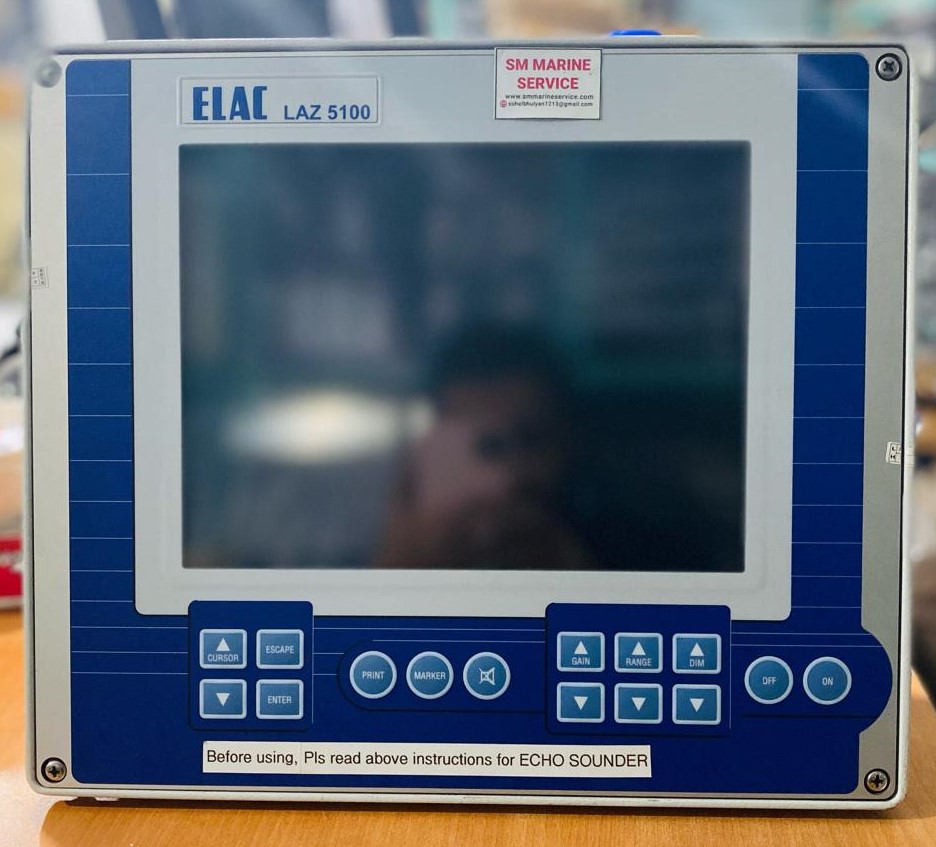

ELACK ECHOSOUNDER LAZ 5100
ELACK
Refurbished
ELAC LAZ 5100 Echo Sounder | ELAC Echo Sounder System | Marine Depth Sounder, Transducer, Display Unit, Spare Parts, Repair & Supply | SM MARINE SERVICE™
The ELAC LAZ 5100 Echo Sounder is a high-performance marine depth sounding system developed by ELAC Nautik GmbH, Germany, a globally respected manufacturer of hydrographic and marine navigation equipment. Designed for commercial shipping, offshore vessels, naval ships, and research vessels, the LAZ 5100 provides continuous and highly accurate water depth measurements to enhance navigational safety.
The system uses advanced ultrasonic pulse-echo technology to measure the distance between the vessel's keel and the seabed. A hull-mounted transducer transmits acoustic pulses into the water and receives the returning echoes, while the processor calculates the exact depth and displays the information in real time on the bridge.
Known for its German engineering, reliable operation, and robust construction, the ELAC LAZ 5100 is widely installed on vessels that require dependable under-keel clearance monitoring in ports, coastal waters, rivers, channels, and offshore operations.
SM MARINE SERVICE™ supplies new, used, and professionally reconditioned ELAC LAZ 5100 Echo Sounder systems, including display units, processor units, transducers, power supply modules, interface boards, spare parts, repair services, and worldwide technical support.
| Item | Details |
|---|---|
| Manufacturer | ELAC Nautik GmbH |
| Country of Origin | Germany |
| Product Model | LAZ 5100 |
| Product Type | Marine Echo Sounder |
| Measuring Principle | Ultrasonic Pulse-Echo |
| Primary Function | Continuous Water Depth Measurement |
| Marine Application | Navigation Safety & Under-Keel Clearance Monitoring |
| Installation | Bridge Display & Hull-Mounted Transducer |
The ELAC LAZ 5100 is a professional marine navigation instrument that continuously measures and displays the water depth beneath a vessel. It is designed to help bridge officers maintain safe under-keel clearance and avoid grounding during navigation in shallow waters and restricted areas.
Unlike manual sounding methods, the LAZ 5100 automatically provides continuous digital depth information with high accuracy and fast response. This makes it an essential navigation aid for commercial ships operating in ports, coastal waters, rivers, dredging zones, and offshore projects.
The system is suitable for both new vessel installations and retrofit applications and can be integrated with other bridge navigation equipment to improve operational awareness.
The ELAC LAZ 5100 Echo Sounder operates using the internationally proven ultrasonic pulse-echo principle.
The operating sequence is as follows:
This cycle repeats continuously, providing accurate real-time depth information regardless of vessel speed or normal sea conditions.
The ELAC LAZ 5100 Echo Sounder is designed with precision electronic and acoustic modules to deliver continuous, highly accurate, and dependable seabed depth measurements. Every component is engineered to withstand demanding marine environments while ensuring reliable long-term operation.
The display unit provides real-time water depth, echo profile, alarm status, operating modes, and system diagnostics. Its high-contrast marine display ensures excellent readability in bright daylight, nighttime operations, and adverse weather conditions.
The transceiver serves as the central processing unit. It generates ultrasonic transmission pulses, receives reflected echoes, processes acoustic signals, calculates water depth, and communicates with the bridge display.
Installed below the vessel's hull, the transducer converts electrical pulses into ultrasonic sound waves and receives the reflected echoes from the seabed. Proper transducer performance is essential for achieving accurate depth measurements.
The signal processing board amplifies weak echo signals, removes background electrical noise, performs digital filtering, and ensures stable, high-precision depth calculations.
The marine-grade power supply converts shipboard input voltage into stable operating voltages for all electronic circuits while protecting the system from voltage fluctuations and electrical disturbances.
The LAZ 5100 incorporates programmable shallow-water and deep-water alarms, enabling bridge officers to receive immediate warnings whenever preset safety limits are exceeded.
The communication interface enables integration with modern navigation equipment, allowing depth information to be shared with Integrated Bridge Systems (IBS), Voyage Data Recorders (VDR), navigation computers, and other compatible marine systems.
Note: Specifications may vary depending on software version, transducer type, and vessel configuration.
| Specification | Details |
|---|---|
| Manufacturer | ELAC Nautik GmbH |
| Model | LAZ 5100 |
| Country of Origin | Germany |
| Product Type | Marine Echo Sounder |
| Measuring Principle | Ultrasonic Pulse-Echo |
| Display | Marine Digital Display |
| Measurement | Continuous Real-Time Depth |
| Transducer | Hull-Mounted Ultrasonic Type |
| Alarm Functions | Programmable Shallow & Deep Water Alarms |
| Communication | Standard Marine Interfaces |
| Installation | Bridge Console & Hull Transducer |
| Application | Commercial Ships & Offshore Vessels |
The ELAC LAZ 5100 Echo Sounder is widely installed on commercial vessels where continuous and accurate depth information is essential for navigational safety.
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| No depth displayed | Transducer failure or damaged cable | Inspect transducer and cable connections |
| Weak echo signal | Marine growth on transducer | Clean the transducer surface |
| Incorrect depth reading | Incorrect draft offset or calibration | Verify configuration and recalibrate |
| Blank display | Power supply or fuse failure | Check power input, fuse, and PSU |
| Continuous alarm | Alarm settings incorrect | Reconfigure alarm parameters |
| Communication fault | Interface cable failure | Inspect communication wiring |
| Intermittent readings | Loose connectors | Tighten all electrical connections |
| Electrical interference | Poor grounding or shielding | Verify grounding and cable shielding |
Routine inspection and preventive maintenance significantly reduce downtime and improve measurement accuracy.
To maximize equipment reliability, marine engineers should perform routine maintenance.
Proper preventive maintenance extends equipment life and improves navigational safety.
The ELAC LAZ 5100 Echo Sounder remains a trusted navigation instrument because it provides:
Its dependable performance has made it a preferred echo sounding solution for commercial fleets worldwide.
It continuously measures the water depth beneath the vessel, helping navigators maintain safe under-keel clearance.
The system uses ultrasonic pulse-echo technology to calculate the distance between the vessel and the seabed.
Common spare parts include:
Yes. Many electronic modules, including processor boards, power supplies, interface boards, and display assemblies, can often be repaired depending on their condition.
Yes. We supply complete systems, replacement spare parts, professionally reconditioned units, repair services, technical support, and worldwide sourcing solutions.
The ELAC LAZ 5100 Echo Sounder is a professional German-engineered marine depth sounding system developed for continuous and accurate seabed measurement. Its advanced ultrasonic technology, reliable electronics, and durable marine construction make it an ideal solution for commercial shipping, offshore operations, and research vessels requiring dependable under-keel clearance monitoring.
For installation, commissioning, troubleshooting, and preventive maintenance, always consult the official ELAC LAZ 5100 Operator's Manual, Installation Manual, Service Manual, and Spare Parts Catalogue for your exact equipment version. Manufacturer-approved documentation helps ensure safe operation, proper calibration, and maximum equipment reliability.
The ELAC LAZ 5100 Echo Sounder represents the quality and precision associated with German marine engineering. Designed for continuous operation under demanding maritime conditions, it delivers highly accurate depth information that enhances navigational safety and operational efficiency.
Whether your vessel requires a complete LAZ 5100 system, replacement display, processor, transducer, electronic PCB, spare parts, repair services, or technical support, SM MARINE SERVICE™ is ready to provide reliable solutions for customers worldwide.
