VISATRON VN215/87 Plus Measuring Head

Manufacturer

Schaller Automation GmbH & Co. KG

Country of Origin

Germany

Product Type

Oil Mist Detector (OMD) Measuring Head

Marine Application

Marine Diesel Engine Crankcase Monitoring & Oil Mist Detection Systems

---

Product Introduction

The VISATRON VN215/87 Plus Measuring Head is a critical component of the Schaller Automation Oil Mist Detection (OMD) system. Designed specifically for marine diesel engines, this measuring head continuously monitors oil mist concentration inside the engine crankcase and provides early warning of potentially dangerous operating conditions.

Oil mist formation is often the first indication of bearing overheating, lubrication failure, excessive friction, or internal mechanical damage. Early detection is essential for preventing crankcase explosions and avoiding costly engine repairs.

The VISATRON VN215/87 Plus has become one of the most trusted oil mist detection solutions used onboard merchant vessels, offshore installations, and marine power plants worldwide.

Product Image

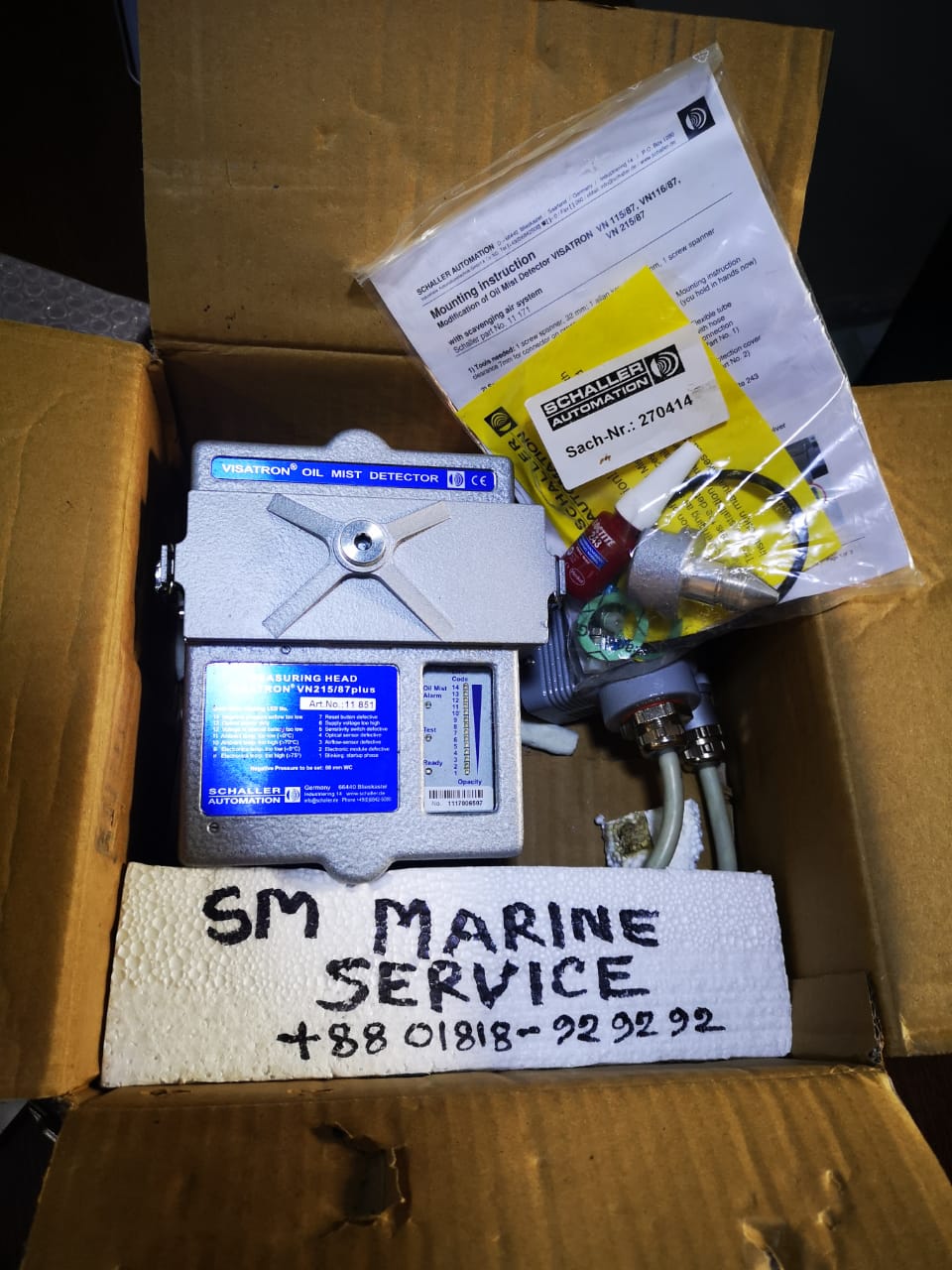

Your supplied VISATRON VN215/87 Plus Measuring Head clearly shows the complete measuring head assembly supplied with installation accessories, documentation, and service components.

---

What Is VISATRON VN215/87 Plus?

The VN215/87 Plus is the optical measuring head used within the VISATRON VN87 Plus Oil Mist Detection System.

Its primary function is to:

• Continuously monitor crankcase atmosphere
• Detect oil mist particles
• Measure oil mist concentration
• Generate alarm signals
• Provide early engine protection

The system utilizes advanced optical technology to detect even small increases in oil mist concentration before dangerous conditions develop.

This early warning allows engineers to take corrective action and avoid catastrophic engine failures.

Related System Images

---

How the VISATRON VN215/87 Plus Works

The measuring head continuously receives sampled crankcase air through the VISATRON monitoring system.

Inside the measuring chamber:

1. Air enters the optical measuring chamber.
2. A light source illuminates the sample.
3. Oil mist particles scatter light.
4. Sensors analyze the scattered light intensity.
5. The system calculates oil mist concentration.
6. Alarm thresholds are continuously monitored.

When preset alarm limits are exceeded, the monitoring unit immediately activates warning alarms and identifies the affected engine section.

---

Main Features

Advanced Optical Detection Technology

Provides highly accurate oil mist measurement.

Early Warning Protection

Detects dangerous conditions before major engine damage occurs.

Continuous Monitoring

Operates 24 hours a day without interruption.

High Reliability

Designed for harsh marine engine room environments.

Compact Construction

Easy installation within existing VISATRON systems.

Classification Society Approved

Accepted by major marine classification societies worldwide.

Long Service Life

Built for continuous operation on marine diesel engines.

Product & Component Images

---

Main Components

1. Measuring Chamber

The central optical measurement section.

Functions

• Oil mist analysis
• Light scattering measurement
• Concentration calculation

---

2. Optical Sensor Module

Provides oil mist detection capability.

Functions

• Light detection
• Signal generation
• Measurement processing

---

3. Light Source Assembly

Produces controlled optical illumination.

Functions

• Particle detection
• Measurement stability

---

4. Electronic Processing Circuit

Processes measurement signals.

Functions

• Data calculation
• Alarm generation
• Diagnostic functions

---

5. Electrical Connection Interface

Provides communication with the monitoring system.

Functions

• Power supply connection
• Data communication

---

6. Housing Assembly

Protects internal components.

Functions

• Environmental protection
• Mechanical durability

---

Marine Applications

The VISATRON VN215/87 Plus is commonly installed on:

Main Propulsion Engines

• MAN B&W Engines
• Wärtsilä Engines
• Sulzer Engines
• Mitsubishi Marine Engines

Auxiliary Engines

• Generator Engines
• Emergency Diesel Generators

Vessel Types

• Container Ships
• Bulk Carriers
• Oil Tankers
• Chemical Tankers
• LNG Carriers
• Offshore Support Vessels
• Ro-Ro Ships

The measuring head forms an essential part of the vessel's engine safety system.

Marine Installation Images

---

Common Problems & Troubleshooting

Oil Mist Alarm Activated

Possible Causes

• Bearing overheating
• Lubrication failure
• Mechanical friction
• Internal engine damage

Corrective Actions

• Reduce engine load
• Check bearing temperatures
• Inspect lubrication system
• Follow engine manufacturer's procedures

---

Sensor Contamination

Possible Causes

• Oil deposits
• Dirt accumulation

Corrective Actions

• Clean measuring chamber
• Inspect optical components

---

Communication Failure

Possible Causes

• Wiring fault
• Connector damage
• Electronic malfunction

Corrective Actions

• Verify wiring
• Check connectors
• Test communication circuits

---

False Alarm Conditions

Possible Causes

• Dirty optical chamber
• Calibration drift
• Sample contamination

Corrective Actions

• Clean sensor assembly
• Verify calibration
• Inspect sampling system

---

Maintenance Tips

Daily Checks

• Verify normal operation
• Confirm no active alarms

Weekly Checks

• Inspect wiring connections
• Verify system status

Monthly Checks

• Inspect optical chamber
• Test alarm functionality

Quarterly Maintenance

• Clean measuring components
• Verify communication signals

Annual Maintenance

• Full operational testing
• Calibration verification
• Replacement of worn parts if necessary

Maintenance Images

---

Why Ships Still Use VISATRON VN215/87 Plus

The VISATRON VN215/87 Plus remains highly respected because:

• Proven German engineering
• Accurate oil mist detection
• Fast alarm response
• Long service life
• Low maintenance requirements
• Worldwide spare parts support
• Excellent reliability record
• Compliance with marine safety regulations

Thousands of vessels continue operating VISATRON systems successfully due to their reliability and effectiveness.

---

Frequently Asked Questions (FAQ)

What is the function of the VISATRON VN215/87 Plus?

It measures oil mist concentration within marine engine crankcases and provides early warning of dangerous operating conditions.

Is the VN215/87 Plus a complete OMD system?

No. It is the measuring head component used within the VISATRON VN87 Plus Oil Mist Detection System.

Why is oil mist monitoring important?

Oil mist accumulation can lead to crankcase explosions and severe engine damage.

Can the measuring head be serviced onboard?

Yes. Routine cleaning, inspection, and maintenance can be performed by qualified personnel.

Does the unit require calibration?

Periodic verification and maintenance are recommended according to manufacturer guidelines.

---

Short Product Description

The VISATRON VN215/87 Plus Measuring Head from Schaller Automation Germany is an advanced oil mist detection sensor used in marine diesel engine crankcase monitoring systems. Utilizing optical measurement technology, the unit continuously monitors oil mist concentration and provides early warning of dangerous engine conditions. It is an essential safety component for protecting marine engines from crankcase explosions and catastrophic failures.

---
