Rutter RUT-01029 NMEA Module
Rutter Technologies Inc.
New product
The Rutter RUT-01029 NMEA Module is a marine navigation data interface associated with Rutter Voyage Data Recorder (VDR) and Simplified Voyage Data Recorder (S-VDR) installations. It is designed to collect serial navigation and sensor data from compatible shipboard equipment and provide that information to the VDR recording architecture.
For vessel operators, technical superintendents and marine electronics engineers, reliable NMEA data acquisition is important for maintaining the integrity of recorded voyage information. A defective interface module, failed communication channel or wiring problem can result in missing sensor data and VDR alarms.
SM MARINE SERVICE™ supplies marine navigation and automation equipment, including Rutter VDR spare parts, from its sourcing network in Bangladesh and China. Replacement inquiries can be submitted through www.smmarineservice.com.
|
Product Detail |
Identification |
|---|---|
|
Brand |
RUTTER |
|
Manufacturer |
Rutter, Canada |
|
Product Name |
NMEA Module |
|
Model |
RUT-01029 |
|
Equivalent identifier on label |
RUT-01029-AA |
|
Related refurbished code |
RUT-01029-AA-X (confirm configuration) |
|
Serial Number |
NM02-003011 |
|
Product Type |
Marine NMEA serial data acquisition interface |
|
Nominal Channel Count |
8 NMEA channels |
|
Supply Voltage |
10–30 V DC |
|
Visible Interfaces |
RS422, RS232, RJ45 Ethernet, plug-in terminal blocks |
|
Indicators |
PWR and channels 1–8 |
|
Markings |
CE; wheel-mark symbol with 0736/09 |
|
Country of Manufacture |
Made in Canada |
|
Unit Condition |
Used, original; functional testing not independently established |
The label identifies RUT-01029 and states that the unit is equivalent to RUT-01029-AA. The separate RUT-01029-AA-X designation should be treated as a related market identifier, not automatically assumed to be identical in every configuration.
The RUT-01029 is an interface module used to receive serial data from navigation and other compatible shipboard equipment. NMEA 0183 and related IEC 61162 serial communication arrangements are widely used for transferring navigation information between marine instruments.
Within a VDR installation, the interface can form part of the data acquisition arrangement, receiving incoming navigation sentences and passing data toward the recorder through the system communication network.
The exact data flow, supported sentence types, input channel settings and VDR compatibility depend on the installation configuration and system documentation.
A typical arrangement can be understood as follows:
The RUT-01029 provides several functions relevant to marine navigation data collection and VDR integration.
Eight NMEA input channels: Collects serial navigation data from multiple compatible shipboard sources.
NMEA 0183 / IEC 61162 support: Designed for marine navigation data communication.
Ethernet communication: Transfers acquired data to the VDR data management system.
RS422 and RS232 connections: Provides serial communication interfaces as indicated on the front panel.
Individual channel indicators: LEDs marked 1–8 support basic channel activity observation.
Wide-range DC supply: The photographed module is marked 10–30 V DC.
Modular construction: Metal enclosure, detachable terminal connectors and mounting bracket support installation in marine electronic equipment cabinets.
The Rutter VDR-100G2 installation documentation describes NMEA input modules that multiplex up to eight NMEA 0183 streams and transmit data over serial and Ethernet connections.
|
Specification |
Details |
|---|---|
|
Manufacturer |
Rutter |
|
Model |
RUT-01029 |
|
Label equivalent |
RUT-01029-AA |
|
Function |
NMEA serial data acquisition |
|
Number of channels |
8 |
|
Input supply |
10–30 V DC |
|
Navigation data |
NMEA 0183 / IEC 61162 |
|
Serial interfaces |
RS422 and RS232 |
|
Network interface |
Ethernet RJ45 |
|
Status indicators |
PWR, channels 1–8 |
|
Mounting |
Bracket-mounted enclosure |
|
Enclosure |
Black metal housing |
|
Origin |
Canada |
|
Internal PCB number |
Not clearly visible in the supplied photographs |
|
Current consumption |
Not verified |
|
Dimensions and weight |
Not verified |
|
Exact baud-rate settings |
Installation/configuration dependent |

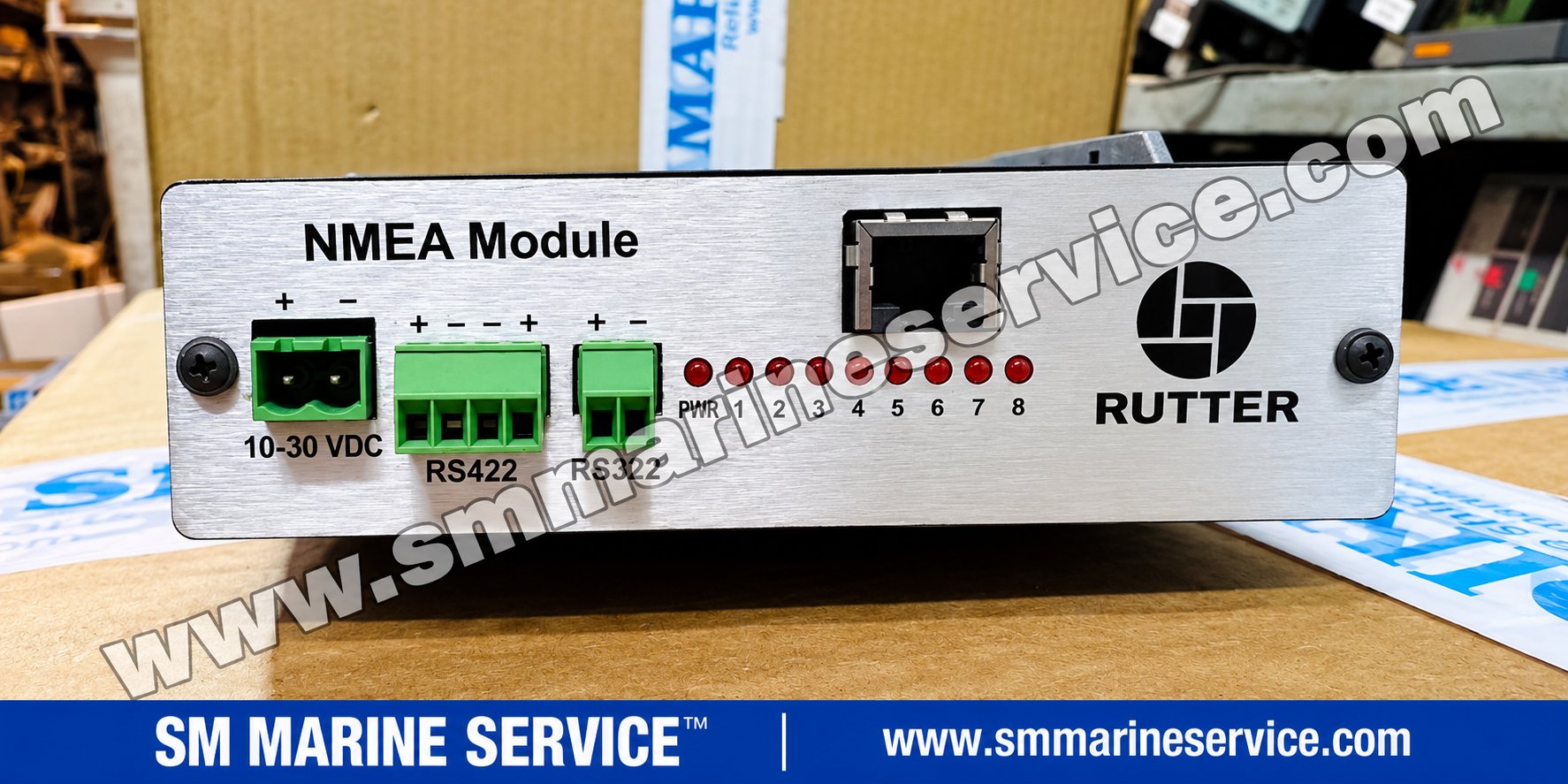

Technical distinction: The photographed front panel identifies the power, serial and network connectors, but the detailed input wiring, signal direction and channel configuration must be checked against the installation documentation. Do not infer terminal functions from connector shape alone.
This is the primary assembly identified on the manufacturer's label. It serves as an interface between navigation sensors and the VDR recording system.
The RUT-01029-AA-X designation appears in a published Rutter spare-parts catalogue as a refurbished NMEA module associated with the VDR-100 family. Replacement suitability must be checked against the existing installation.
The visible hardware includes a two-pole DC power connector, RS422 and RS232 terminal connections, and additional green terminal blocks for field wiring.
Replacement terminal blocks should match the original connector pitch, electrical ratings and pin configuration.
The RJ45 network connection is used within the VDR communication architecture. Network settings and the receiving recorder configuration must match the installed system.
The module includes a power indicator and numbered indicators for channels 1–8. These provide useful visual information during fault investigation, although the precise interpretation of each indicator state should follow the applicable service documentation.
|
Part Number |
Description |
|---|---|
|
RUT-01005-EA |
Video interface module |
|
RUT-01014-AA |
Data analog interface module |
|
RUT-01015-AA |
Data discrete interface module |
|
RUT-01050-12 |
Audio module designation supplied for sourcing inquiry; verify exact assembly |
|
RUT-03590-DA |
G3 Data Management Module |
|
RUT-02447 |
Final Recording Medium capsule |
|
RUT-01018-AA |
Outdoor microphone assembly |
|
RUT-01019-AA |
Indoor microphone assembly |
These are related VDR system components, not interchangeable replacements for the RUT-01029. Published Rutter spare-parts catalogues identify several of these assemblies by part number.
The Rutter NMEA Module is principally associated with marine voyage data recording and navigation data acquisition.
In a full VDR installation, the NMEA interface can help collect data from navigation instruments for storage alongside other voyage information.
Compatible S-VDR systems may also use NMEA input modules to acquire mandatory or additional sensor information.
Depending on the installed VDR configuration and available interfaces, NMEA data sources may include:
GPS / GNSS receivers
Gyrocompasses and heading sensors
Speed logs
Echo sounders
AIS equipment
Wind instruments
Other compatible navigation or machinery data interfaces
Some radar, ECDIS and autopilot systems may provide relevant serial data, but that does not mean the RUT-01029 can directly record their complete display images or proprietary information.
The module is associated with Rutter VDR-100 installations, particularly G2/G2S and G3/G3S system families. Compatibility with a particular vessel must be confirmed using the VDR model, module revision and system configuration.

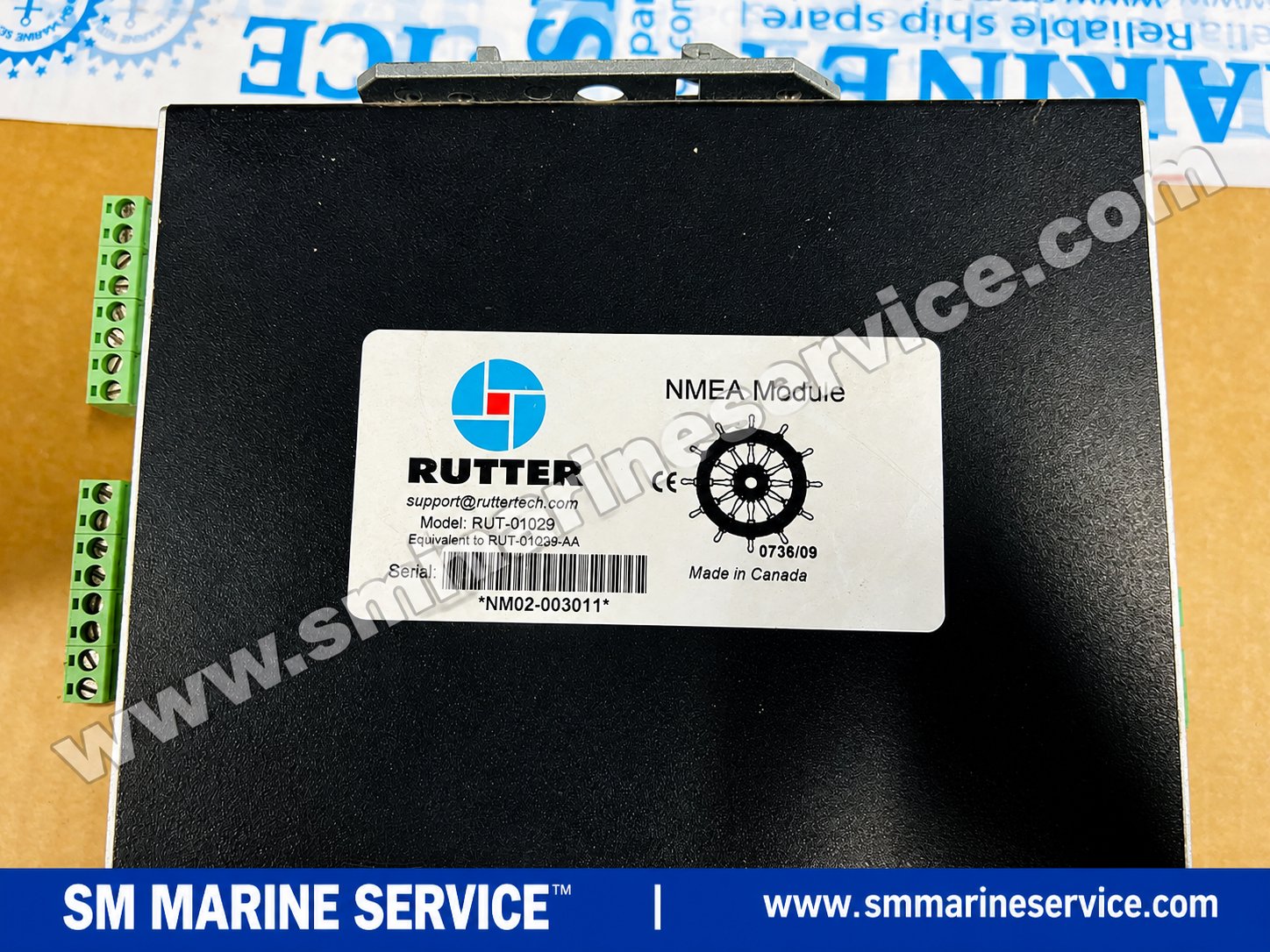

The rear manufacturer label on the supplied equipment provides valuable information for purchasing and technical verification.
Manufacturer label details
RUTTER
NMEA Module
Model: RUT-01029
Equivalent to RUT-01029-AA
Serial: NM02-003011
Made in Canada
CE / Wheel-mark identification: 0736/09
rutter-rut-01029-nmea-module-nameplate.jpg. ALT: “Rutter RUT-01029 NMEA Module manufacturer label with model and serial number.”When requesting a replacement, customers should compare the exact label details rather than relying only on a general description such as “Rutter NMEA board.”
|
Symptom |
Possible Cause |
Recommended Check |
|---|---|---|
|
No PWR indicator |
Missing DC supply, power wiring fault or internal failure |
Verify the supply voltage and polarity against the installed wiring |
|
One NMEA channel inactive |
Sensor output issue, wiring fault or configuration mismatch |
Check source output and channel wiring |
|
Multiple channels inactive |
Supply, communication or module fault |
Inspect common power and network connections |
|
VDR reports missing navigation data |
Source, interface, network or recorder configuration issue |
Trace the complete data path |
|
Ethernet communication lost |
Network cable, IP configuration or interface fault |
Verify physical connection and network settings |
|
Intermittent sensor data |
Loose terminal, noise, grounding or signal quality issue |
Inspect connectors and assess signals using appropriate test equipment |
|
Module replaced but data missing |
Incorrect configuration or incompatible replacement |
Compare original and replacement settings |
A missing NMEA sentence at the VDR does not automatically prove that the RUT-01029 is defective. The problem may originate at the sensor, serial wiring, power supply, Ethernet network or VDR data processing system.
Qualified marine electronics personnel should investigate the installation using approved test procedures. Before disconnecting wiring or replacing the module, follow the vessel's electrical isolation and equipment maintenance requirements.
The photographed module has visible PWR and 1–8 indicators.
The exact flash patterns and fault meanings are not established from the supplied photographs. Therefore, these indicators should not be assigned undocumented error codes.
At the VDR level, operators may encounter warnings concerning missing navigation data, disconnected sensors or communication faults. The precise alarm wording varies by recorder model and configuration.
An annual VDR performance test may identify missing or unreliable recorded data, but a failed test requires system-level diagnosis rather than automatic replacement of the NMEA module.
Regular inspection and careful configuration management can help reduce unexpected communication problems.
Inspect the enclosure and mounting hardware for damage or looseness.
Check power and signal terminal connections during authorized maintenance.
Keep connectors free from moisture, contamination and corrosion.
Examine the RJ45 cable and network connection for mechanical damage.
Maintain records of channel assignments and network configuration.
Verify incoming NMEA data following any sensor replacement or wiring modification.
Preserve the original module identification and system settings before replacing hardware.
Conduct functional verification after maintenance.
Avoid altering channel configuration or rewiring an operational VDR without an approved maintenance plan.
SM MARINE SERVICE™ assists international customers with sourcing Rutter VDR and S-VDR equipment, including the RUT-01029 NMEA Module, related interface assemblies and other marine navigation electronics.
The photographed RUT-01029 is identified by the supplier as a used, original unit. Functional test results, current availability and exact delivery arrangements should be confirmed when requesting a quotation.
Customers are encouraged to provide:
Required model: RUT-01029 or RUT-01029-AA.
Existing module label and serial number.
Installed Rutter VDR system model.
Any hardware or configuration requirements.
Required quantity and destination country.
Relevant fault information if the request concerns a failed unit.
Send inquiries through SM MARINE SERVICE™ or email info@smmarineservice.com.
Many commercial vessels continue to operate with installed Rutter VDR systems. Maintaining the existing equipment can require original interface modules, particularly when a replacement must match established wiring, recorder communication and system configuration.
There is also an important lifecycle consideration: a 2021 service notice identified RUT-01029-AA among older VDR modules affected by end-of-life support and declining availability of critical parts. This makes exact replacement identification and planning particularly important.
For some vessels, sourcing a compatible spare may be appropriate. For others, a planned VDR upgrade may be the more sustainable option. The decision should consider technical compatibility, support status, vessel requirements and the advice of the responsible service provider.
What is the Rutter RUT-01029?
It is a marine NMEA input interface module used with compatible Rutter VDR and S-VDR recording systems.
Who manufactures the RUT-01029?
The photographed unit is branded RUTTER and marked Made in Canada.
How many NMEA channels does it support?
The module is identified as an eight-channel NMEA interface, with front-panel indicators numbered 1 through 8.
What is the input voltage?
The supplied photograph shows 10–30 V DC.
What is the difference between RUT-01029 and RUT-01029-AA?
The manufacturer's label states that the photographed RUT-01029 is equivalent to RUT-01029-AA. Installation-specific compatibility should still be confirmed.
What is RUT-01029-AA-X?
It is a related refurbished NMEA module designation listed in a published spare-parts catalogue.
Can this module be used with a Rutter VDR-100G2 or VDR-100G3?
It is associated with these system families, but compatibility depends on the particular recorder installation and configuration.
Why is my VDR missing GPS or gyro data?
Potential causes include sensor output failure, incorrect wiring, interface configuration, network communication faults or a defective module. Proper diagnosis is required.
Does the RJ45 port mean the module supports ordinary internet connectivity?
No. The RJ45 connection is used for the equipment's Ethernet communication within the applicable system. It should not be treated as an internet service connection.
Is the RUT-01029 still supported?
A published 2021 service notice listed the RUT-01029-AA among older modules affected by end-of-life support. Customers should verify present support and replacement options for their installation.
Can I purchase a used Rutter NMEA module?
SM MARINE SERVICE™ can receive inquiries for the photographed used unit and assist with sourcing requests, subject to current availability and condition confirmation.
What details should I send before ordering?
Send the original label photograph, model and serial number, VDR system type, required quantity and destination.
The Rutter RUT-01029 NMEA Module is an eight-channel marine navigation data interface designed for use with compatible Rutter Voyage Data Recorder (VDR) and Simplified Voyage Data Recorder (S-VDR) systems. The unit supports NMEA 0183 / IEC 61162 data acquisition and features RS422, RS232, Ethernet connectivity, channel status indicators and a 10–30 V DC power input. The photographed unit is identified as RUT-01029, equivalent to RUT-01029-AA, serial number NM02-003011, manufactured in Canada. SM MARINE SERVICE™ welcomes inquiries for used Rutter NMEA modules, replacement units and related VDR spare parts for international marine customers.
