Beijer X2 Marine 7-B2 Alfa Laval HMI
Beijer Electronics AB
Refurbished
The Beijer Electronics X2 marine 7-B2 – Alfa Laval Variant is a marine-grade Human Machine Interface (HMI) operator panel configured for use with an Alfa Laval marine control application. The photographed unit displays the Alfa Laval startup screen and a PureBallast OPC UA communication message, supporting its identification as a PureBallast ballast water treatment system (BWTS) operator interface.
The rear nameplate confirms Part No. 630003005, Revision 3, Serial No. 256911-00861, and 24 V DC / 0.6 A input rating.
The Beijer X2 marine family is designed for demanding marine environments, providing touchscreen interaction between shipboard personnel and connected automation systems. In a PureBallast installation, the HMI provides an operator-facing interface to the control system, with the available functions determined by the installed application software.
SM MARINE SERVICE™ supports worldwide enquiries for Beijer Electronics marine HMI panels, Alfa Laval PureBallast control components and BWTS spare parts at www.smmarineservice.com.
Product image placement: Insert your original SM MARINE SERVICE™ photograph showing the blue Alfa Laval front bezel and powered-on display. Suggested ALT text: “Beijer X2 marine 7-B2 Alfa Laval PureBallast HMI 630003005 front display”.
|
Parameter |
Details |
|---|---|
|
Manufacturer |
Beijer Electronics |
|
Product |
X2 marine 7-B2 HMI |
|
Variant |
X2 marine 7-B2 – Alfa Laval |
|
Part Number |
630003005 |
|
Hardware Revision |
3 |
|
Serial Number |
256911-00861 |
|
Application Identified |
Alfa Laval PureBallast |
|
Display Type |
Touchscreen HMI |
|
Nominal Display Size |
7 inches (X2 marine 7 family) |
|
Input Voltage |
24 V DC |
|
Rated Input Current |
0.6 A |
|
Power Supply Class |
Class 2 |
|
Operating Temperature Marking |
−10°C to +60°C |
|
Enclosure Marking |
Type 4X / Type 12 (indoor) |
|
UL File |
E482459 |
|
Other Markings |
cULus, CE, FCC, KC, IIoT READY |
|
Design / Assembly |
Designed in Sweden; assembled in Taiwan |
|
Condition |
Used; photographed powered on |
|
Software Version |
Not confirmed |
|
Full System Function Test |
Not confirmed |
Important: The photographed HMI powers on and displays an application screen. This demonstrates visible startup and display operation, but it does not establish that the touchscreen, communication interfaces or complete PureBallast system functions have passed testing.
The Beijer X2 marine 7-B2 is an industrial touchscreen operator interface from the X2 marine product family.
An HMI provides a graphical connection between the operator and the machinery control system. Rather than directly controlling every pump, valve or sensor, the HMI normally exchanges information with a PLC or other automation controller.
Depending on the installed application, the operator may use it to view equipment status, acknowledge alarms, select operating modes and monitor system processes.
In the Alfa Laval configuration shown here, the HMI is associated with the PureBallast ballast water treatment system.
The OEM-specific variant is particularly important because the panel hardware, installed runtime application, configuration and communications must all be compatible with the vessel's existing system.
A standard-looking Beijer HMI is therefore not necessarily a ready-to-install replacement for an Alfa Laval-configured unit.
The X2 marine 7 family uses a compact color touchscreen suitable for marine operator interfaces.
The commonly published standard-family resolution is 800 × 480 pixels, although the exact OEM variant specification should be verified against its applicable hardware documentation.
The front display clearly shows Alfa Laval branding, while the message references PureBallastOPCUA.
This establishes a connection between the photographed panel's installed software and the PureBallast application.

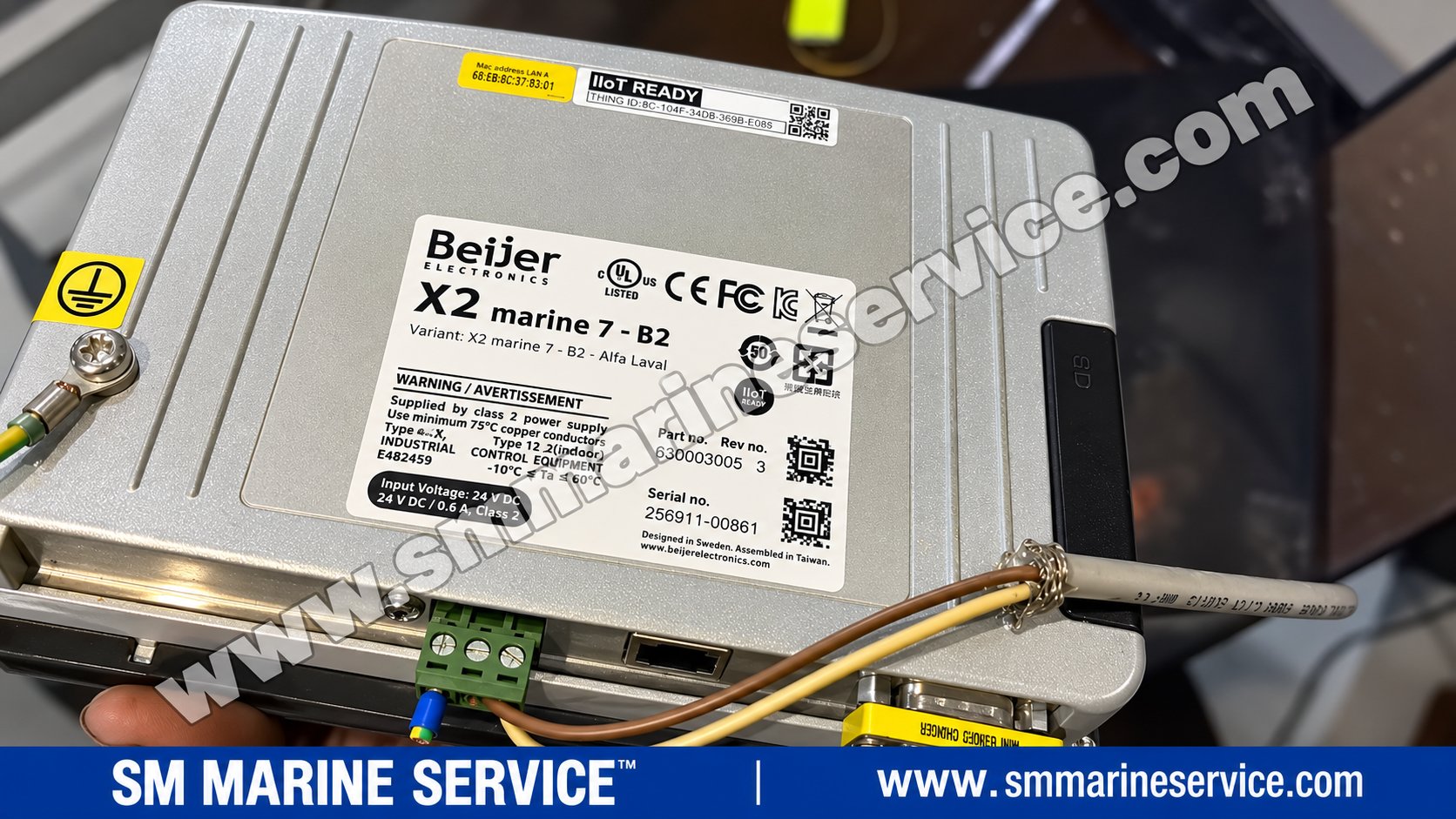

The rear nameplate specifies:
Input Voltage: 24 V DC / 0.6 A, Class 2
A compatible regulated supply is required. The actual supply arrangement must follow the applicable installation instructions.
An RJ45 Ethernet port is visible on the rear housing.
Ethernet may be used for communication with the associated automation system, including the network connection referenced by the PureBallast OPC UA error message.
A D-sub connector is visible on the rear assembly.
The standard X2 marine family supports serial communication options, but the precise pin assignment and configured interface must be confirmed for this unit.
An SD-marked access cover is visible on the rear housing.
Removable media can be relevant to application maintenance and data handling, subject to the manufacturer's supported procedures.
The rear housing is metallic, with a clearly marked protective earth connection.
The nameplate also carries enclosure and industrial-control-equipment markings.
These details are important for installation, electrical safety and environmental suitability.
Product image placement: Insert your original close-up rear-nameplate photograph. Suggested ALT text: “Beijer Electronics X2 marine 7-B2 Alfa Laval part 630003005 revision 3 serial number and 24V DC label”.
The following table distinguishes specifications confirmed from the photographed OEM label from standard X2 marine 7 family specifications published by Beijer Electronics.
|
Specification |
Details |
|---|---|
|
Exact OEM variant |
X2 marine 7-B2 – Alfa Laval |
|
Exact part number |
630003005 |
|
Revision |
3 |
|
Input supply |
24 V DC / 0.6 A, Class 2 |
|
Operating temperature |
−10°C to +60°C |
|
Display size |
7-inch class |
|
Display technology |
TFT-LCD with LED backlight (standard family) |
|
Resolution |
800 × 480 pixels (standard family) |
|
Touch technology |
Resistive (standard family) |
|
Application memory |
1.5 GB (standard family) |
|
Ethernet |
10/100 Base-T RJ45 (standard family) |
|
Serial interface |
RS-232 / RS-422 / RS-485 options (standard family) |
|
External storage |
SD / SDHC support (standard family) |
|
USB |
USB 2.0 (standard family) |
|
Marine backlight dimming |
Standard-family feature |
|
Standard-family dimensions |
204 × 143 × 50 mm |
|
Standard-family weight |
Approximately 0.8 kg |
|
Front sealing |
IP65 / NEMA 4X/12 for standard family |
|
Rear sealing |
IP20 for standard family |
|
Exact installed application version |
Not verified |
The standard-family power consumption is published as 14.4 W maximum, consistent with the photographed unit's 24 V × 0.6 A rating. This does not establish that every hardware or software detail of the OEM variant is identical.
This is the exact part number printed on the supplied product.
For a replacement enquiry, 630003005 should be treated as the primary purchasing identifier.
The label specifies hardware revision 3. The revision is relevant when checking compatibility with installed firmware, application software and system requirements.
Other revisions should not be assumed interchangeable without confirmation.
Beijer identifies 630002505 as the standard X2 marine 7 product.
This is a related hardware-family reference, not a verified plug-and-play replacement for the Alfa Laval OEM unit.
The manufacturer's product range also includes X2 marine 7 HB, 7 SC, 7 HB SC and larger marine display models.
These have differing capabilities, including variations in communications and control functionality.
They should not be ordered as direct substitutes without checking the original application requirements.
A three-position removable terminal connector is visible in the photographs. The exact wiring assignment should be verified before installation.
The RJ45 and D-sub interfaces are relevant to the HMI's communication with the connected system.
No internal PCB assembly number is visible. The housing has not been opened in the supplied photographs, so no internal circuit-board part number can be verified.
The photographed HMI displays the Alfa Laval startup screen and a PureBallast communication message.
In a compatible BWTS installation, the operator interface may provide access to operating sequences, equipment status, process measurements, alarm indications and system information.
The precise features depend on the PureBallast version and the application installed on the HMI.
A PureBallast HMI can serve as the operator-facing display during ballast water treatment operations, communicating with the system controller rather than independently performing the treatment process.
The HMI may present alarm and diagnostic information from the connected PureBallast system.
Alarm handling and data exchange depend on the system architecture and software configuration.
The X2 marine hardware family is also relevant to marine automation installations requiring compact touchscreen operator interfaces.
However, the photographed Alfa Laval-specific unit should be treated as an OEM-configured component rather than a generic preprogrammed HMI.
For replacement enquiries involving Alfa Laval PureBallast displays, contact SM MARINE SERVICE™ through www.smmarineservice.com.
Potential causes include incorrect supply voltage, damaged wiring, loose power terminals or internal electronic failure.
Check the approved power-supply arrangement and terminal identification before diagnosing the HMI itself.
Possible causes include touchscreen damage, contamination, application freezing or internal interface problems.
A visible image on the display does not necessarily confirm correct touchscreen operation.
Backlight deterioration, brightness configuration or hardware failure may affect display visibility.
Inspect the power supply and permitted display settings before replacing the unit.
An incomplete startup may involve application corruption, incompatible configuration, storage problems or a communication dependency.
A backup of the original approved application is valuable when replacing an HMI.
An Ethernet fault can prevent the HMI from exchanging information with the PureBallast controller or connected services.
Check the approved network arrangement, cable condition, controller availability and communication configuration.

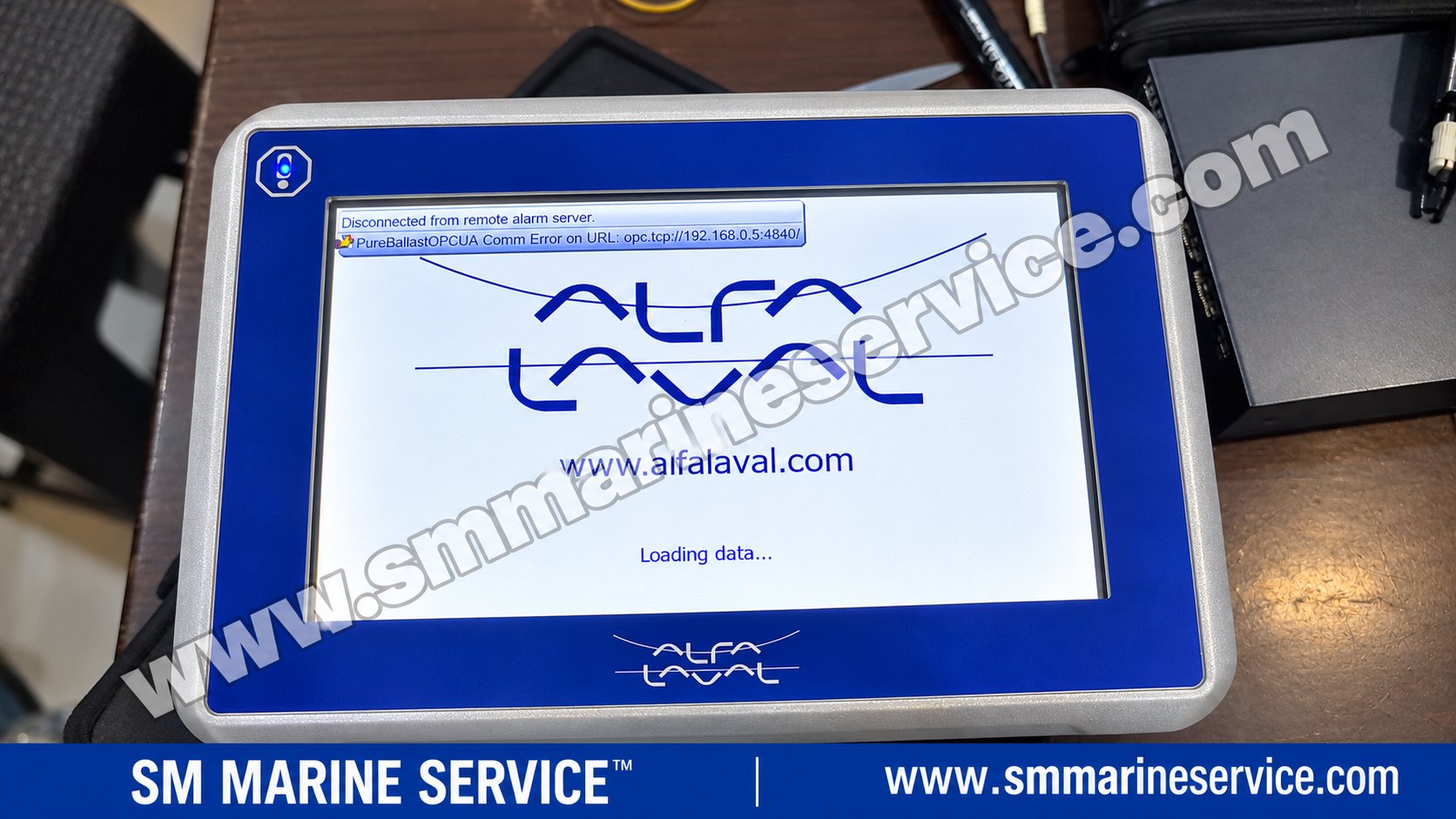

The supplied powered-on photograph displays:
Disconnected from remote alarm server.
PureBallastOPCUA Comm Error on URL: opc.tcp://192.168.0.5:4840/
Exact message visible on the photographed HMI.
This message indicates that the application is unable to establish or maintain the expected communication with the referenced OPC UA endpoint.
OPC UA is an industrial communication technology commonly used for exchanging data between automation systems and software applications.
The displayed address identifies a private network endpoint on port 4840.
Possible explanations include:
The HMI is operating separately from the vessel's PureBallast control network.
The connected server or controller is not running.
An Ethernet cable or network connection is missing.
Network settings do not match the intended system.
The OPC UA service or its security configuration requires attention.
Important testing interpretation: If the HMI is powered on a workbench without the corresponding PureBallast controller, a communication error is an expected possibility. The photograph does not prove a defective HMI, but it also does not establish that the complete communication system has been tested successfully.
Product image placement: Insert the original SM MARINE SERVICE™ powered-on screen photograph showing the Alfa Laval logo and PureBallast OPC UA message. Suggested ALT text: “Alfa Laval PureBallast Beijer X2 marine 7-B2 HMI OPC UA communication error display”.
Maintenance of marine HMI panels should follow the manufacturer's approved procedures and the vessel's automation maintenance requirements.
Recommended considerations include inspection of the power connector, protective earth, Ethernet cable, serial connection and mounting arrangement.
The display should be cleaned using suitable non-abrasive materials, avoiding liquids entering the enclosure.
Where supported and authorized, the operator application, firmware version, communication configuration and relevant settings should be backed up before replacement or major maintenance.
Do not assume that copying an SD card alone is sufficient to reproduce the complete OEM application.
Before returning a replacement panel to service, verify display operation, touchscreen response, communication, alarms and the relevant PureBallast control functions.
SM MARINE SERVICE™ supports international enquiries for the Beijer Electronics X2 marine 7-B2 Alfa Laval HMI, Part No. 630003005, along with related marine touchscreen operator panels and ballast water treatment system spare parts.
The photographed unit is described as used and powered on, with the display and application startup visible.
Complete operational testing, touchscreen functionality, PLC communication and application compatibility require separate confirmation.
Customers may enquire about:
Complete Beijer 630003005 Alfa Laval HMI assemblies
Matching OEM-configured X2 marine operator panels
Standard Beijer X2 marine 7 family hardware
Compatible HMI accessories and connection components
Alfa Laval PureBallast control-system spare parts
Marine automation displays and replacement operator interfaces
New, used, refurbished and reconditioned equipment may be requested for sourcing, subject to actual availability and verification.
Please provide the exact part number, revision, serial number, Alfa Laval PureBallast system version, installed software version if known, and photographs of the front and rear labels.
For this photographed unit, the key identification details are:
Beijer X2 marine 7-B2 – Alfa Laval / Part No. 630003005 / Rev. 3 / Serial No. 256911-00861.
Visit www.smmarineservice.com to submit a replacement HMI or BWTS spare-parts enquiry.
A marine HMI is more than a touchscreen display. It contains or runs the operator application used to communicate with the vessel's installed automation system.
Two panels from the same hardware family may have different OEM software, firmware, communication settings and access permissions.
Consequently, replacing an Alfa Laval PureBallast HMI with an unconfigured standard Beijer panel may not restore the required functionality.
The correct replacement should be checked against the original part number, revision and approved application configuration.
The standard X2 marine 7 hardware remains listed as active in Beijer's product information; the lifecycle status of the specific Alfa Laval OEM part 630003005 has not been independently confirmed.
It is a marine touchscreen operator panel configured for an Alfa Laval application, identified in the supplied photographs with PureBallast software.
630003005.
Revision 3.
The nameplate specifies 24 V DC / 0.6 A, Class 2.
The photographed display shows Alfa Laval branding and a PureBallast OPC UA communication message, supporting its identification as a PureBallast-associated HMI.
The rear housing has an RJ45 Ethernet port, and the displayed OPC UA message references a network endpoint.
It means the application cannot communicate successfully with the configured OPC UA endpoint at the time shown.
No. A disconnected controller, missing network or unavailable server can produce a similar error.
Not automatically. The standard panel and Alfa Laval OEM variant require a compatibility and software review.
The photographed unit visibly loads an Alfa Laval application screen. Availability of a complete licensed, operational and compatible application must be confirmed separately.
It is shown powered on with the display operating. Full touchscreen and system communication testing are not established by the photographs.
Contact SM MARINE SERVICE™ at info@smmarineservice.com or visit www.smmarineservice.com.
The Beijer Electronics X2 marine 7-B2 – Alfa Laval Variant, Part No. 630003005, Revision 3, is a 7-inch marine touchscreen HMI associated with the Alfa Laval PureBallast ballast water treatment system. The photographed unit features a 24 V DC input, Ethernet connectivity, serial interface, SD access and an Alfa Laval-branded operator display. It is identified by Serial No. 256911-00861 and is shown powered on with a PureBallast OPC UA communication message. SM MARINE SERVICE™ supports worldwide enquiries for used marine HMI panels, compatible replacement displays and BWTS automation spare parts, subject to availability and technical verification.
