JRC NCE-8520A Marine Public Address & Talkback Controller with Hand Microphone

The JRC NCE-8520A Controller is a shipboard public address and talkback control panel designed for communication between the vessel's bridge and designated onboard stations or announcement zones.

Manufactured under the JRC (Japan Radio Co., Ltd.) brand, this equipment provides a convenient operating interface for selecting communication zones, making voice announcements, monitoring audio activity and accessing designated emergency and alarm controls.

The photographed unit includes a JRC hand microphone, analog audio-level meter, integrated speaker grille, illuminated function controls and six selectable station positions.

For vessel operators maintaining an existing JRC public address system, identifying the exact NCE-8520A model is important when sourcing a replacement bridge panel or associated communication spare parts.

SM MARINE SERVICE™ supports international enquiries for JRC marine communication equipment and related replacement components through www.smmarineservice.com.

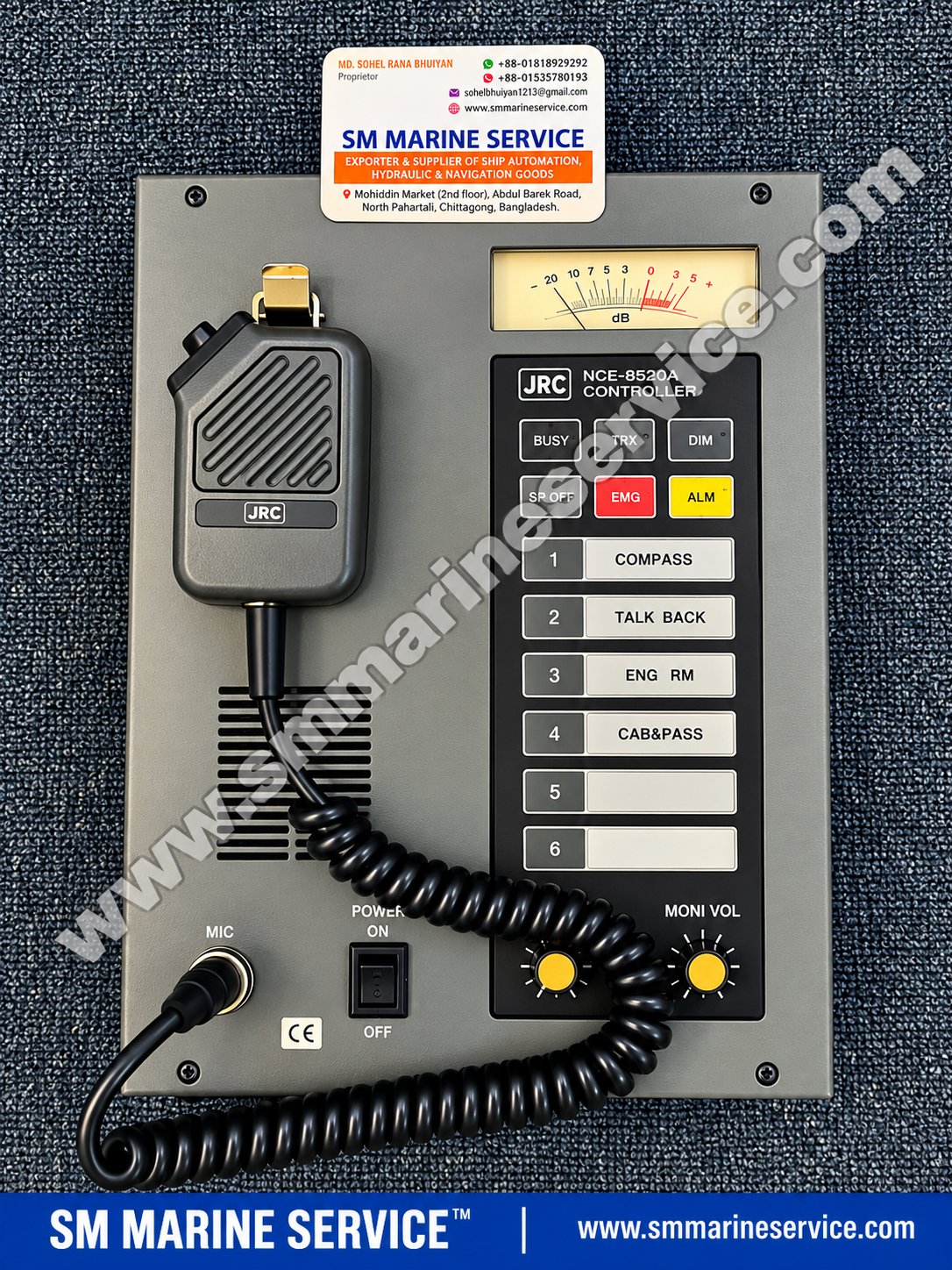

JRC NCE-8520A marine PA and talkback controller. The supplied SM MARINE SERVICE™ photograph shows the front-panel layout, hand microphone, zone selectors and monitoring controls.

Product Information

What Is the JRC NCE-8520A Controller?

The JRC NCE-8520A serves as an operator interface within a vessel's public address and talkback communication arrangement.

A typical marine public address system consists of microphone stations, control panels, audio amplification equipment, zone-selection circuits, loudspeakers and associated cabling.

The bridge officer uses the controller to select the intended communication destination and transmit speech through the microphone.

Depending on the installed system configuration, the equipment may support communication with stations such as the engine room, compass deck and other designated shipboard areas.

The NCE-8520A photograph also shows a TALK BACK selection, indicating a dedicated talkback function within the panel's station arrangement.

The exact two-way communication sequence, priority logic and alarm broadcasting arrangement depend on the connected JRC system and vessel wiring.

Main Features of the JRC NCE-8520A

Six Station / Zone Selection Buttons

The front panel contains six numbered selection positions. Four are labelled for particular shipboard locations or communication functions:

These labels reflect the photographed unit. Actual zone connections must be verified against the vessel's installed PA wiring.

Hand Microphone with Coiled Cord

The controller includes a JRC-branded hand microphone connected by a coiled cable. The microphone provides the operator's speech input and is intended for convenient bridge-console use.

The microphone's exact model and impedance cannot be established from the front photograph alone.

Analog Audio-Level Meter

An illuminated analog meter is marked in dB, with a visible scale extending approximately from −20 to +5 dB.

The meter helps the operator observe the relevant audio level during system operation. Its exact measuring point and calibration are not confirmed for this model.

Emergency and Alarm Controls

The front panel contains two prominent controls:

EMG — Emergency

ALM — Alarm

These are intended for emergency-related and alarm-related PA functions. The exact priority, broadcast coverage, alarm tone and activation sequence must be checked against the connected system.

Talkback and Audio Monitoring

The panel includes a speaker grille, a MONI VOL control and a dedicated TALK BACK station selection.

These support the controller's monitoring and talkback arrangement, subject to the installed system configuration.

Additional Front-Panel Controls

The following markings are clearly visible:

The second yellow rotary control is visible, but its label is partly obscured by the microphone cable. Its exact function should be confirmed from the unit or associated drawing.

Related JRC NCE-8000A public address controller family. This is a reference model, not proof of direct replacement compatibility with NCE-8520A.

Marine-market records identify JRC NCE-8000 and NCE-8000A as public address controllers, with NVT-200 dynamic microphones appearing in their documentation and spare-parts descriptions.

These are useful related-model search terms, but the NCE-8000 and NCE-8000A should not be described as interchangeable with the NCE-8520A without checking their electrical connections, mounting arrangement and associated PA equipment.

NCE-8520A and the JRC NVA Public Address System

A historical JRC public address system instruction-book record contains drawing references specifically identifying the NCE-8520A controller, including outline and schematic drawing entries. This provides a stronger model-specific documentary reference than relying on the NCE-8000 family alone.

Separately, JRC NVA-1800MKII-series documentation describes microphone broadcasting, emergency broadcasting, talkback and remote controller arrangements. Those references establish the broader operating context of JRC marine PA systems, but their exact operating instructions must not automatically be applied to the NCE-8520A.

Main Technical Specifications

Technical identification note: Published specifications for the NCE-8000/NCE-8000A, including microphone impedance and weight, should not be presented as NCE-8520A specifications.

Main Components & Associated Part Numbers

JRC NCE-8520A Complete Controller

The main replacement item is the complete NCE-8520A panel, including the control interface and internal electronics.

Hand Microphone Assembly

The photograph confirms a JRC hand microphone and coiled cable. The exact microphone model is not visible.

NVT-200 and NVT-200A are documented microphone references associated with related JRC public address equipment, not confirmed identifiers for this photographed microphone.

Internal Controller PCB

The controller contains electronic circuitry for its operating functions, but no internal PCB number can be identified without a rear or internal photograph.

A buyer searching for a replacement board should provide the actual PCB marking and revision rather than ordering by a presumed number.

Analog Level Meter

The panel-mounted dB meter is a potential replacement component if the indicator mechanism or its associated circuit fails.

Station Selector and Function Buttons

The station buttons, emergency/alarm controls and related switches are important parts of the operator interface.

Their exact replacement part numbers are not verified.

Internal Monitor Speaker

The front speaker grille indicates an integrated monitoring arrangement. Speaker impedance and rating require confirmation from the installed assembly.

Marine & Industrial Applications

The JRC NCE-8520A is relevant to vessel communication systems used aboard merchant ships and other marine installations.

Bridge Public Address Announcements

The bridge officer can use a PA controller to direct announcements to selected shipboard areas through the associated amplifier and speaker network.

Bridge-to-Engine-Room Communication

The ENG RM and TALK BACK labels make engine-room communication and talkback particularly relevant functions for this panel.

Compass Deck Communication

The COMPASS position identifies a designated compass-deck communication destination in the photographed configuration.

Cabin and Passageway Announcements

The CAB & PASS position identifies an announcement zone for cabins and passageways.

Emergency Communication

The EMG and ALM controls are relevant to emergency and alarm communication. Their integration with the vessel's statutory alarm and announcement arrangements must be verified.

Typical Vessel Types

The equipment category is relevant to public address installations on cargo ships, bulk carriers, tankers, container ships, offshore support vessels and other ships fitted with compatible JRC systems.

This does not establish that every vessel type uses the exact NCE-8520A model.

Common Problems & Troubleshooting

Marine PA controllers operate in demanding environments where vibration, humidity, electrical disturbances and frequent use can affect microphones, switches, wiring and electronic assemblies.

The following are practical diagnostic considerations for the JRC NCE-8520A, not confirmed fault diagnoses for the photographed unit.

No Power to the Controller

If the panel does not power on, check the approved supply voltage, upstream protection, power switch, cable connections and associated PA system power supply.

Do not apply a voltage taken from another JRC controller model without checking the NCE-8520A wiring documentation.

Microphone Not Working

Possible causes include a damaged microphone element, broken coiled cord, faulty push-to-talk switch, loose microphone connector or an upstream audio circuit problem.

Check whether the fault occurs on every selected zone or only one destination.

No Sound from the Selected Zone

Verify the selected station, microphone operation, PA amplifier status, speaker-line condition and any system priority or mute arrangement.

A failed loudspeaker circuit can cause an apparent controller fault even when the controller is functioning correctly.

Talkback Not Working

Check the TALK BACK selection, connected station, speaker/microphone wiring and system switching arrangement.

A two-way communication fault may be caused by the remote station or cabling rather than the bridge panel.

BUSY or TRX Function Abnormal

Check the system's current operating mode and whether another microphone station or higher-priority source is active.

The exact behavior of the BUSY and TRX controls requires confirmation from the NCE-8520A operating documentation.

Analog dB Meter Not Moving

Potential causes include missing audio signal, meter movement failure, faulty meter-driving electronics or wiring faults.

Do not assume that an unmoving meter proves the PA amplifier is defective.

EMG or ALM Button Failure

Emergency and alarm functions should be tested only under an approved vessel test procedure, with relevant personnel informed beforehand.

Check the switch, associated indication, control wiring and PA system logic. Avoid unintentionally activating live shipboard alarms.

Monitor Speaker Has No Sound

Check monitor-volume adjustment, SP OFF state, internal speaker connection and monitoring electronics.

Common Alarms & Fault Indicators

The photographed panel has several clearly labelled controls and indicators:

These are verified front-panel markings, but their exact lamp states, priorities and fault meanings are not established from the photograph alone.

No model-specific error codes have been verified.

Maintenance Tips

Regular maintenance should focus on the microphone, coiled cable, front-panel buttons, audio meter, speaker grille, mounting fasteners and rear connectors.

Keep the microphone cable free from excessive twisting and strain. Clean the panel using appropriate electronics-safe methods, without allowing liquid into switches or openings.

During planned maintenance, qualified technicians should verify the operation of each configured zone, the talkback function, monitoring controls and audio levels.

Emergency and alarm tests should follow the vessel's approved procedures.

Before disconnecting or replacing the controller, isolate the relevant electrical supply and record the original cable connections.

Spare Parts & Replacement Availability

SM MARINE SERVICE™ supports international sourcing enquiries for the JRC NCE-8520A Public Address / Talkback Controller and related JRC marine communication equipment.

Relevant spare-parts enquiries may include:

• Complete JRC NCE-8520A controller with microphone

• JRC hand microphone and coiled cable assemblies

• Internal controller PCB and audio circuit assemblies

• Front-panel switches and station-selection buttons

• Analog audio-level meter and monitor speaker

• Related JRC NCE-8000 / NCE-8000A controllers and NVT-series microphones, subject to exact model identification

Customers can enquire about new, used, refurbished or reconditioned equipment, subject to confirmed condition and availability.

For an accurate quotation, please provide the NCE-8520A model photograph, rear nameplate, connected PA amplifier/system model, microphone details, number of configured zones and any available PCB identification.

Visit SM MARINE SERVICE™ for marine communication, navigation and automation spare-parts sourcing.

Why Existing Ships Still Require JRC PA Controllers

An existing vessel's PA installation may have been designed around particular JRC controllers, amplifier interfaces, cable arrangements and zone-selection logic.

Replacing a failed controller with a modern but electrically different unit can require modifications to the communication system.

For this reason, a correctly matched replacement controller may be preferable when the remaining equipment is operational.

The NCE-8520A should not be described as officially discontinued without manufacturer confirmation. The need for legacy replacements does not by itself establish discontinuation.

Frequently Asked Questions (FAQ)

What is the JRC NCE-8520A?

It is a marine public address and talkback controller used as an operator interface for shipboard voice communication.

Who manufactures the NCE-8520A?

It is a JRC-branded product associated with Japan Radio Co., Ltd.

Does the NCE-8520A include a microphone?

The photographed assembly includes a JRC hand microphone with a coiled cable.

How many station-selection buttons are provided?

Six numbered positions are visible. Four are labelled COMPASS, TALK BACK, ENG RM and CAB & PASS.

Can it be used for engine-room communication?

The photographed panel includes an ENG RM selection and a TALK BACK function. Actual communication depends on the connected system.

Does the controller have emergency and alarm controls?

Yes. EMG and ALM buttons are visible, although their exact operating sequences depend on the installation.

Is the NCE-8520A the same as the NCE-8000A?

No. They are different model identifiers. Direct interchangeability has not been verified.

Can the JRC NVT-200 microphone replace the microphone shown?

Not without confirming the microphone model, connector, wiring and electrical compatibility.

What is the NCE-8520A supply voltage?

The exact electrical supply has not been verified for this model.

What should I check if there is no microphone sound?

Check the microphone, push-to-talk switch, cable, connector, station selection, amplifier and associated wiring.

Can I purchase a used NCE-8520A?

SM MARINE SERVICE™ can assist with used-equipment sourcing enquiries. Actual availability and testing status must be confirmed.

How can I request a quotation?

Send photographs of the controller and nameplate, the associated PA system model and the required quantity to info@smmarineservice.com or WhatsApp +88 01818 929292.

Short Product Description

The JRC NCE-8520A Marine Public Address and Talkback Controller is a bridge communication control panel featuring a JRC hand microphone, analog dB level meter, six station-selection positions, emergency and alarm controls, monitor speaker and volume adjustment. The photographed configuration identifies COMPASS, TALK BACK, ENG RM and CAB & PASS stations. Designed for use within a compatible shipboard public address system, the controller provides a practical interface for onboard voice communication and announcements. SM MARINE SERVICE™ supports worldwide enquiries for complete NCE-8520A replacement units, microphone assemblies and related JRC marine communication spare parts, subject to availability and compatibility confirmation.
