WÄRTSILÄ X-PMU-000 / X-PMU-001 Power Monitoring Unit – Marine Generator & Automation Module
The WÄRTSILÄ X-PMU Power Monitoring Unit is an electronic module used in marine and power-generation control systems for monitoring generator electrical parameters and communicating power information to associated engine or automation systems.
The photographed units are marked WÄRTSILÄ APSS SRL and X-PMU-000 on the front. Another identification label shows P.N. X-PMU-001, so both designations should be checked when sourcing a replacement.
What Does the X-PMU Do?
In Wärtsilä power-control documentation, a Power Monitoring Unit (PMU) can measure or calculate electrical information such as:
Phase Current • Main Voltage • Frequency • Active Power • Reactive Power • Apparent Power • Power Factor • Active / Reactive Energy • Harmonic Content
Wärtsilä documentation also shows PMU power information being used within speed/load-control arrangements, where a power signal can be sent to the engine speed controller.
In simple terms, the PMU helps the automation system understand how much electrical load the generator is carrying.
Typical Marine Applications
A Wärtsilä X-PMU may be associated with:
Marine Generator Sets
Auxiliary Diesel Generators
Power Plant Engines
Generator Load Control
Speed & Load Control Systems
Power Management Systems
Switchboard Monitoring
Marine Engine Automation
It can therefore be important when troubleshooting generator load, power feedback or automation-system problems.
Related Wärtsilä Automation Equipment
The image above is a later Wärtsilä automation module reference and is not the same X-PMU model, but it illustrates the broader Wärtsilä marine automation and control-module family.
X-PMU-000 and X-PMU-001 Identification
The photographed equipment gives two important references:
Front Designation: X-PMU-000

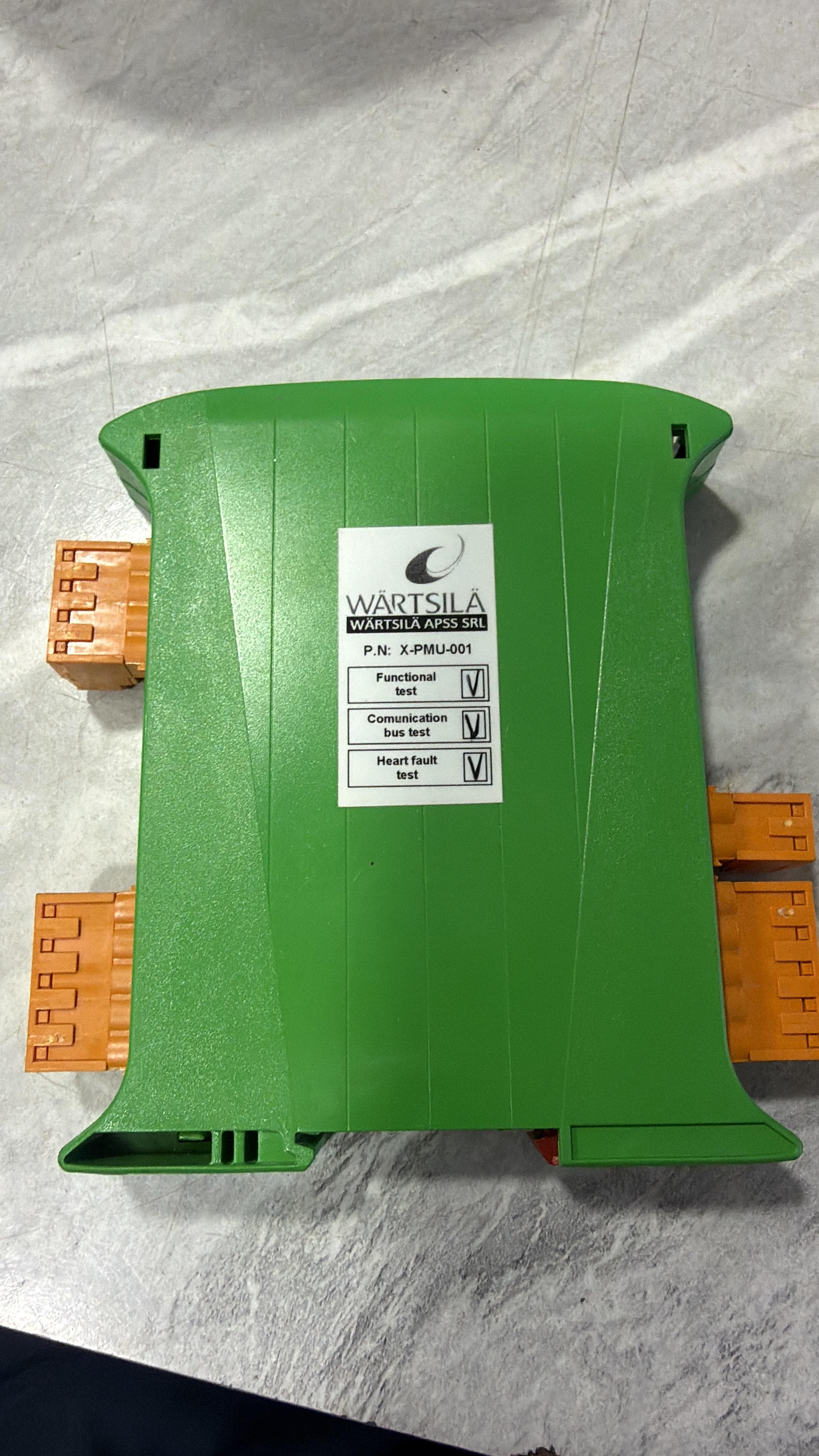

Part Number Label: X-PMU-001
When ordering, buyers should therefore send photographs of both front and rear labels rather than relying on only one number.
The visible unit also has status markings related to:
TX / RX communication
230 V
24 V
Low insulation indication
and another label records checks for:
Functional Test
Communication Bus Test
Heart Fault Test
These markings suggest the module is part of a monitored electrical/control communication environment rather than a simple standalone power meter.
Common Problems & Troubleshooting
Typical problems around a Power Monitoring Unit can include:
No PMU Power – check supply voltage, terminals and upstream protection.
No Power Signal – check current/voltage measurement inputs, signal wiring and output loop.
Communication Fault – inspect communication wiring, connectors and associated controller.
Incorrect Generator Load Reading – compare PMU values with switchboard instruments and verify current/voltage sensing.
4–20 mA Signal Failure – check loop wiring, receiving controller and PMU output.
A Wärtsilä training document notes that PMU signal failure can affect the power signal supplied to speed/load control, so troubleshooting should include the complete signal chain rather than only the PMU.
Spare Parts & Replacement Availability
SM MARINE SERVICE™ can support sourcing of Wärtsilä marine automation and generator-control electronics, subject to exact part number and stock availability.
Typical requirements may include:
X-PMU-000 Power Monitoring Unit
X-PMU-001 Module
Wärtsilä PMU
Generator Power Monitoring Module
Engine Load Control Module
Power Management Modules
Generator Control Electronics
Automation PCB Cards
Communication Modules
Power Supply Modules
Available conditions:
New • Used • Refurbished • Reconditioned • Tested Working
For the correct replacement, send the front label, rear part number, connector photographs and vessel/generator details.
Why Original X-PMU Units Are Still Needed
Many vessels and power plants continue operating with older Wärtsilä control systems. When one electronic module fails, replacing the complete automation architecture may be expensive and time-consuming.
A correctly matched replacement X-PMU can therefore be valuable for maintaining an existing generator or engine-control installation.
Wärtsilä continues to use advanced monitoring and control systems throughout its marine portfolio, where monitoring electrical and machinery operating conditions supports reliable operation and preventive maintenance.
FAQ
What is Wärtsilä X-PMU?
It is a Power Monitoring Unit associated with generator/power measurement and control-system applications.
What does PMU mean?
PMU means Power Monitoring Unit in the Wärtsilä power-control context.
Is X-PMU-000 the same as X-PMU-001?
The supplied unit displays X-PMU-000 on the front and X-PMU-001 as a part-number reference. Exact replacement compatibility should therefore be verified from all labels and system documentation.
Can it be used for generator load control?
Wärtsilä documentation shows PMU power measurements being used in speed and load-control systems.
Can SM MARINE SERVICE™ supply used X-PMU modules?
Yes, depending on stock, new, used, refurbished, reconditioned and tested-working units can be sourced.
Short Product Description
WÄRTSILÄ APSS SRL X-PMU-000 / X-PMU-001 Power Monitoring Unit for marine generator, electrical power monitoring, engine load control and automation systems. SM MARINE SERVICE™ supplies Wärtsilä PMU modules, generator control electronics, automation cards and related marine spare parts in new, used, refurbished and reconditioned condition with worldwide shipping and sourcing support.
