MITSUI BMS-2000 Bridge Control Unit
Mitsui / Mitsui Zosen System
Refurbished
The MITSUI BMS-2000 Bridge Control Unit forms part of the vessel's marine diesel main engine remote-control and manoeuvring system.
It connects the ship's Bridge / Wheelhouse control functions with the broader engine remote-control architecture so that the main engine can be operated remotely from the navigating bridge.
Mitsui E&S Systems Research describes the BMS-2000 family as a remote-control system for low-speed marine diesel engines developed around safety, reliability, ease of operation and maintenance. The BMS-2000 platform had already exceeded 500 delivered sets before the BMS-2000 II generation was introduced.

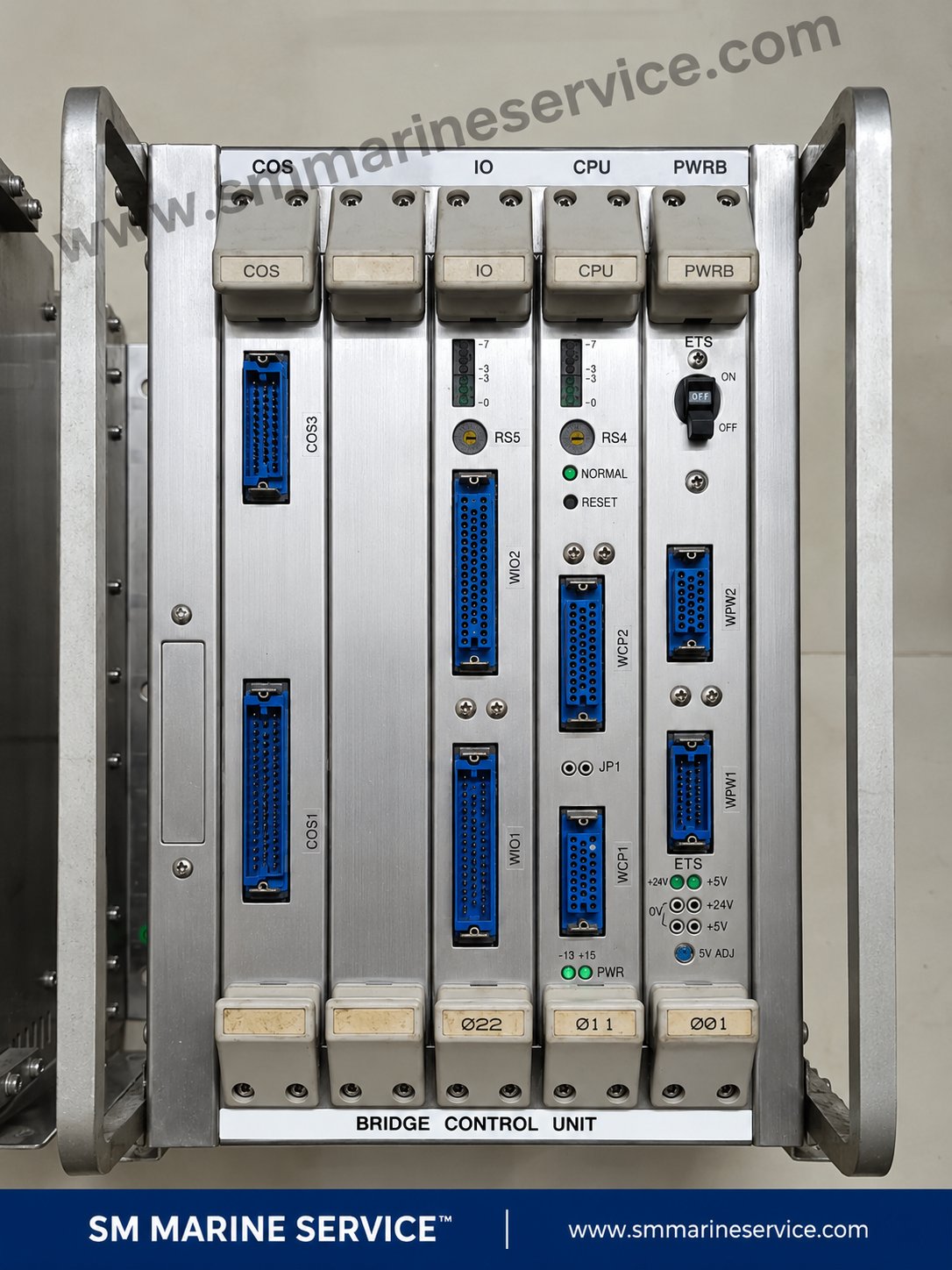

The photographed unit is visibly marked:
BRIDGE CONTROL UNIT
and contains:
COS • IO • CPU • PWRB
with PWRB also carrying an ETS designation.
This matches published BMS-2000 bridge-side system documentation showing bridge equipment communicating through I/O, CPU (ETS) and PWRB sections.
Manufacturer Family: Mitsui Zosen System Research / Mitsui E&S Systems Research
System: BMS-2000
Equipment: Bridge Control Unit
Category: Marine Main Engine Remote Control / Ship Manoeuvring Automation
Location: Bridge / Wheelhouse
Visible Modules: COS, IO, CPU, PWRB
Associated Subsystem: ETS – Engine Telegraph System
Application: Low-speed marine diesel main engine remote operation
Country: Japan
A separate verified BMS-2000 hardware listing identifies a BCU-1 Bridge Control Unit carrying NK Type Approval No. A-426. This confirms BCU-1 as one documented BMS-2000 bridge-control-unit designation, although the exact BCU type of the photographed SM MARINE SERVICE™ unit cannot be confirmed without its rear/nameplate.
The Bridge Control Unit is one of the electronic interfaces between the Wheelhouse / Bridge command equipment and the engine remote-control system.
A modern propulsion-control arrangement needs to communicate commands such as:
START
STOP
AHEAD
ASTERN
ENGINE SPEED ORDER
CONTROL POSITION
TELEGRAPH ORDER
while simultaneously receiving feedback and safety information from the engine-control architecture.
Published BMS-2000 manoeuvring documentation specifically divides operation into:
Control Room Control
Bridge Control
Engine Side Control
and describes bridge control as part of a complete electric-pneumatic manoeuvring system for Mitsui-MAN B&W engines.
Under Bridge control, the remote-control system can automatically execute key main-engine manoeuvring functions.
BMS-2000 IV documentation describes Bridge Control as automatically handling:
Starting
Stopping
Speed Regulation
Reversing
through the main telegraph command system.
Therefore, a failure in bridge-control hardware can directly affect the vessel's ability to command propulsion remotely from the wheelhouse.
The photographed rack contains a COS module and connector designations such as COS1 / COS3.
It forms part of the control/command signal handling architecture.
Because BMS-2000 configurations can vary by vessel and generation, exact COS-board functionality and interchangeability should be verified using the vessel's wiring drawings and board identification.
The IO / I-O Module handles digital or other interface signals between system electronics and associated equipment.
On a propulsion-control system, these may relate to:
The exact I/O assignment is vessel-specific.
The CPU processes system logic and communications.
The photographed unit shows:
CPU
RS4
NORMAL
RESET
together with multipin connectors.
BMS-2000 manuals contain CPU settings and configuration information, which means a replacement CPU should not automatically be treated as plug-and-play simply because its appearance matches.
The PWRB is the Bridge-side power/interface module.
The photographed PWRB section visibly shows:
ETS
+24V
+5V
0V
5V ADJ
as well as connector references.
Published BMS-2000 wheelhouse signal documentation similarly shows a PWRB module as part of the Bridge-side architecture.
ETS stands for the Engine Telegraph System.
In the BMS architecture, the telegraph system provides command communication among locations such as:
Bridge ↔ Control Room ↔ Engine Side
The current BMS-2000 IV manufacturer description also explicitly defines ETS as the communication system between the Bridge, Control Room and Engine Side.
The Bridge Control Unit generally operates as part of a larger wheelhouse arrangement rather than as a standalone device.
A BMS-2000 wheelhouse installation can include:
Bridge Control Unit
Main Telegraph Transmitter
Wheelhouse Display
Order Indicator
Bridge Operating Panel
Telegraph Logger
Alarm / Indication Equipment
A BMS-2000II equipment drawing index specifically lists the Bridge Control Unit, W/H Display, Bridge Operating Panel, Telegraph Transmitter Panel, Order Indicator, Telegraph Logger and Bridge Power Switch Panel as bridge-installed equipment.
This related BMS-2000II wheelhouse display is from the SM MARINE SERVICE™ website, so there is no competitor-image copyright concern.
The BMS-2000II display shown above contains alarm/status indications such as:
SHUT DOWN
SLOW DOWN REQUEST
CRITICAL SPEED
FUEL CAM ABNORMAL
SYSTEM FAILURE
SPEED LIMIT
IMPERFECT W/H CONTROL CONDITION
LOAD UP PROGRAM
IMPOS. START
ETS FAILURE
These terms are extremely useful when engineers search Google by alarm description rather than by the hardware name.
That is why this blog includes both product keywords and fault-condition keywords.
Depending on generation, the BMS family combines several major functions.
For later systems, Mitsui identifies:
Responsible for remote main-engine control, including start, stop and reversing operations.
Safety system intended to protect the main engine.
Provides command communication among Bridge, Control Room and Engine Side.
These systems work together rather than as isolated components.
The BMS platform has existed in several generations.
Relevant search names include:
BMS-2000
BMS-2000 II
BMS-2000 III
BMS-2000 IV
Mitsui records show that BMS-2000 II was developed and began sales in 2004.
The current Japanese manufacturer page describes BMS-2000 IV as the later-generation marine engine remote-control system and notes that the BMS series had exceeded 4,500 cumulative sets by April 2025.
That very large installed base explains why used, refurbished and replacement BMS hardware remains commercially important.
BMS-2000 systems are strongly associated with large low-speed diesel propulsion engines.
One published BMS-2000 manual specifically covers a:
MITSUI-MAN B&W 7S50ME-B9.3
installation.
Another BMS-2000 II manoeuvring document describes an electric-pneumatic system based on Mitsui-MAN B&W K/L/S-MC-type diesel engines.
Therefore, search terms based on engine families—such as MAN B&W MC, ME, ME-B or Mitsui MAN B&W remote control—can also lead buyers toward BMS-2000 components.
BMS-2000 systems may be encountered aboard:
Bulk Carriers
Container Ships
Oil Tankers
Chemical Tankers
LNG / LPG Carriers
General Cargo Vessels
Large Merchant Ships
Other vessels using compatible low-speed main propulsion engines
The exact bridge-control architecture varies according to ship specification and engine generation.
First inspect:
Bridge power supply → PWRB module → +24V / +5V indication → connectors → control wiring
Do not immediately replace the CPU.
A failed power module or missing supply can make other cards appear faulty.
Possible checks include:
Because CPU parameters can be system-specific, record jumper/settings information before replacing a board.
An ETS FAILURE indicates a problem associated with the Engine Telegraph System.
Investigation may include:
Bridge Telegraph → BCU → Communication Link → Control Room → Engine Side
The current BMS family explicitly uses ETS for Bridge/Control Room/Engine Side communications.
This is an important documented BMS alarm.
Later BMS documentation shows that certain conditions can block changeover from Control Room to Bridge and generate an Imperfect Bridge Control Condition alarm.
Therefore, this alarm does not automatically prove the Bridge Control Unit itself is defective.
Interlocks and external conditions also need checking.
Potential investigation areas include:
The remote-control manual demonstrates that main-engine starting involves multiple command and feedback stages rather than one single output from the BCU.
Check:
Before changing the IO card:
A missing field contact can appear identical to an I/O-card problem.
Because this equipment directly participates in propulsion control:
Replacement and testing should be performed by competent marine automation personnel.
SM MARINE SERVICE™ can support sourcing for MITSUI / MSR BMS-2000 main engine remote-control equipment, subject to model, revision and stock.
Typical requirements may include:
BMS-2000 Bridge Control Unit
BCU / BCU-1 Bridge Control Unit
BMS-2000 Main Control Unit
BMS-2000 Back-Up Control Unit
BMS-2000 Control Room Unit
CPU Module / CPU PCB
IO / I-O Module
COS Module
PWRB Power Module
PWRA Power Module
EPS Module
ETS Components
Wheelhouse Display
Control Room Display
Bridge Operating Panel
Main Telegraph Transmitter
Telegraph Receiver
Telegraph Logger
Order Indicator
Relay Panel
Power Unit
Servo Panel
Bridge Control Box
Marine Automation PCB Cards
Available condition depending on stock:
New • Used • Refurbished • Reconditioned • Tested Working
For exact identification, please send:
Unit Name + System Type + PCB / Module Name + Part Number + Revision + Rear Nameplate + Connector Photo + Vessel Main Engine Model
This distinction is particularly important because the two racks can look extremely similar.
The Bridge Control Unit is part of the normal Wheelhouse control architecture.
The Back-Up Control Unit is associated with maintaining alternate control under defined system failures.
Therefore:
Bridge Control Unit ≠ Back-Up Control Unit
and modules should not be assumed interchangeable merely because both racks contain COS, IO, CPU and power modules.
Power modules can even have different designations such as:
PWRB – Bridge side
PWRA – other control-unit configurations
depending on installation.
Older commercial vessels can remain in service for many years while the electronic control system ages.
Replacing the entire propulsion-control architecture may require:
Therefore a correct replacement Bridge Control Unit, CPU, IO or power module can be commercially valuable.
The BMS family also has a very large historic installed base, which continues to generate demand for genuine replacement and tested used components.
You do not need to know the exact board name before contacting SM MARINE SERVICE™.
Send us:
Clear Product Photo
Rear Nameplate
PCB Label
Connector Side Photo
Part Number
System Generation
Main Engine Type
Required Quantity
We can check available stock and sourcing options.
Typical searches we support include:
BMS-2000 Bridge Control Unit
BMS-2000 CPU
BMS-2000 IO Card
BMS-2000 PWRB
BMS-2000 PWRA
BMS-2000 Back-Up Control Unit
BMS-2000 Main Control Unit
BMS-2000 Wheelhouse Display
BMS-2000 Telegraph Equipment
BMS-2000 II / III / IV Spare Parts
It is part of a marine main-engine remote-control system used to process Bridge/Wheelhouse propulsion commands and communicate with other engine-control equipment.
The photographed unit clearly shows:
COS • IO • CPU • PWRB
and the PWRB section also includes ETS marking.
ETS = Engine Telegraph System, responsible for command communication among Bridge, Control Room and Engine Side in the BMS architecture.
BCU-1 is a documented BMS-2000 Bridge Control Unit designation, but the photographed unit's actual rear nameplate is not visible. Therefore its exact BCU subtype should be confirmed from the nameplate before ordering.
Possibly, but part number, revision, programming and configuration must be checked first.
Do not assume so. Similar-looking hardware may have different system roles or configuration.
PWRB is the Bridge-side power/interface module designation visible in this unit and also appears in published BMS-2000 wheelhouse architecture.
It is a documented control-condition alarm. Some system conditions can prevent transfer to Bridge control, so the alarm should be investigated together with interlocks and system status rather than immediately replacing the BCU.
Yes. Published manuals document BMS-2000 on Mitsui-MAN B&W low-speed diesel installations.
Yes. Subject to stock, SM MARINE SERVICE™ can source new, used, refurbished, reconditioned and tested-working marine automation equipment.
Requirements can be checked across the BMS family, but compatibility must be verified by exact type, revision and application.
Yes. SM MARINE SERVICE™ supports worldwide marine equipment sourcing and international shipment.
MITSUI / MSR BMS-2000 Bridge Control Unit for marine diesel main engine remote control and manoeuvring systems. The assembly includes COS, IO, CPU and PWRB modules and interfaces with Bridge/Wheelhouse propulsion and Engine Telegraph System functions. SM MARINE SERVICE™ supplies BMS-2000 bridge control units, BCU modules, CPUs, IO cards, power modules, displays, main control units, backup control units and related marine automation spare parts in new, used, refurbished and reconditioned condition, subject to availability, with worldwide shipping and technical support.
A publicly accessible BMS-2000 manual includes the Wheelhouse signal-system architecture and shows Bridge-side I/O, CPU (ETS) and PWRB equipment.
View BMS-2000 Operating Manual PDF
The available BMS-2000 instruction manual includes Bridge starting logic, control system diagrams, CPU-related information, system architecture and equipment drawings.
View BMS-2000 Instruction Manual
The official manufacturer page describes the BMS-2000 II / EMS-200 II system, including Wheelhouse and Control Room displays, backup control, classification approvals and system architecture.
Official Mitsui E&S Remote Control System Information
