MITSUI BMS-2000 Back-Up Control Unit
Mitsui / Mitsui Zosen System
Refurbished
The MITSUI BMS-2000 Back-Up Control Unit is a critical component within the marine diesel Main Engine Remote Control System used aboard commercial vessels.

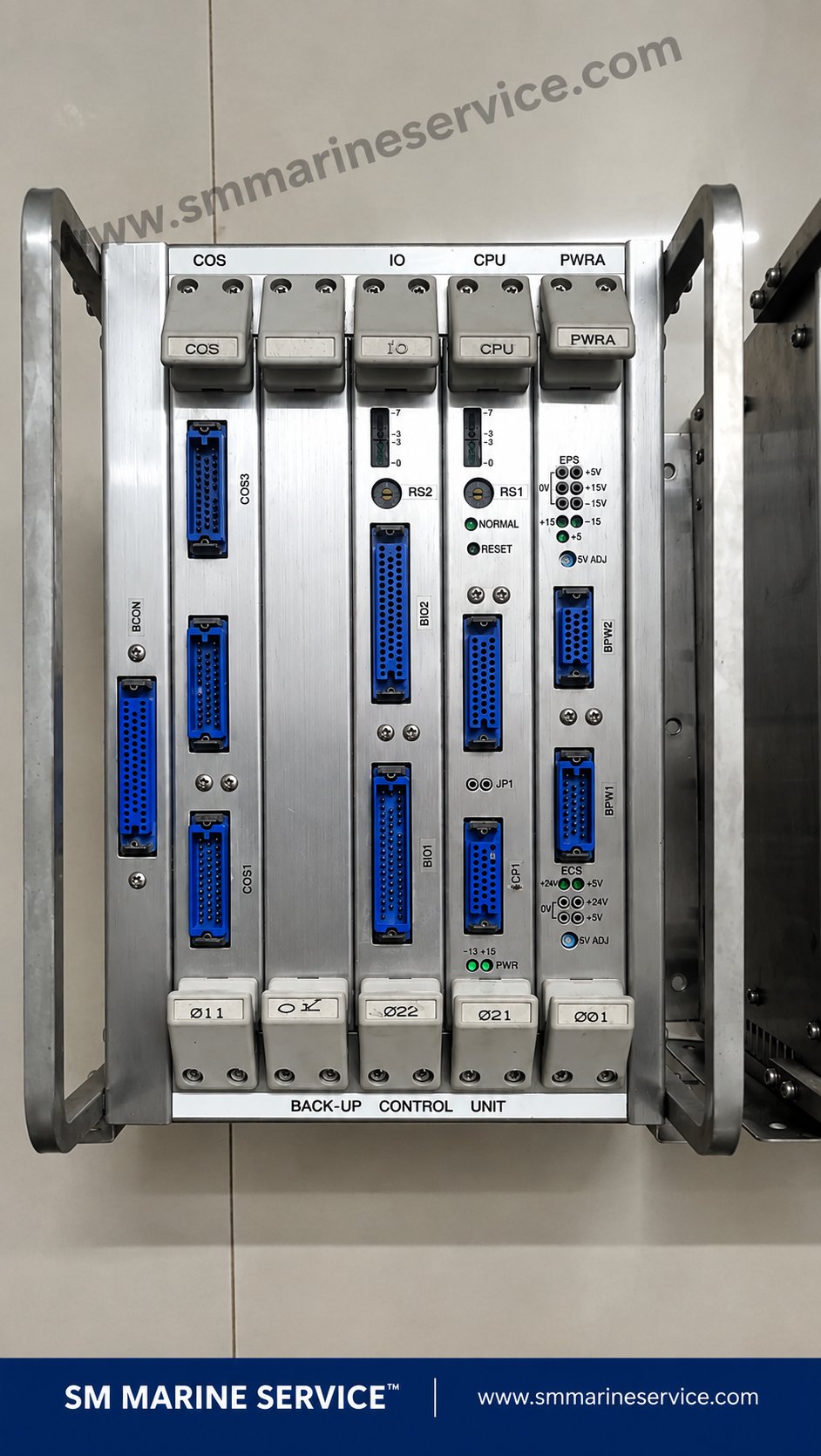

The photographed assembly is clearly marked:
BACK-UP CONTROL UNIT
and contains front-access modules identified as:
COS • IO • CPU • PWRA
with status LEDs, multipin connectors and power-monitoring points.
BMS-2000 documentation describes the Back-Up Control System (BUCS) as a dedicated control path that allows continued main-engine operation from the Control Room when certain failures occur in the normal Remote Control System.
This makes the unit highly important for vessel maneuvering safety and redundancy.
Manufacturer Family: Mitsui / Mitsui Zosen System Research / Mitsui E&S Systems Research
System: BMS-2000
Equipment: Back-Up Control Unit
System Category: Marine Main Engine Remote Control / Maneuvering System
Application: Marine diesel main engine automation
Installation Area: Typically Control Room / Engine Control Room depending on vessel arrangement
Visible Modules: COS, IO, CPU, PWRA
Function: Backup operation of main engine control when normal remote-control functions are impaired
Official Mitsui E&S Systems Research material describes BMS-2000 and later BMS-2000 II as marine diesel-engine remote-control systems for low-speed diesel engines, with backup control included as a standard safety feature in later variants.
The BMS-2000 is a marine main engine remote control and maneuvering system.
Its job is to allow the ship's main propulsion engine to be controlled from remote stations such as:
Wheelhouse / Bridge
Engine Control Room
Engine Side / Local Station
Depending on generation and vessel configuration, BMS-2000 documentation identifies major functional subsystems such as:
Remote Control System (RCS)
Engine Protecting System (EPS)
Engine Telegraph System (ETS)
Engine Maneuvering System (EMS)
Electronic Governor System / associated speed control
Back-Up Control System (BUCS)
Older BMS-2000 system documentation describes five major subsystems, while later BMS-2000 III documentation explicitly includes the backup control system as a dedicated subsystem.
The remote-control system can handle key propulsion commands including:
Starting
Stopping
Speed Regulation
Ahead / Astern Reversing
Control Position Changeover
Engine Protection Interaction
Telegraph Communication
BMS-2000 III documentation states that its remote-control system performs full automatic control from the Bridge and manual remote control from the Control Room.
This is why BMS-2000 hardware remains a critical marine automation spare-part category.
The Back-Up Control Unit is not simply a spare electronic box sitting inside the panel.
It is part of the ship's redundancy strategy.
BMS-2000 III documentation states that when a CPU abnormality or RCS power failure is detected, the Back-Up Control System in the Control Room can allow the main engine to continue running similarly to normal Control Room operation.
This is extremely important during maneuvering.
A failure of the primary remote-control electronics should not automatically leave the vessel without a practical control path.
The backup system therefore helps preserve controlled propulsion operation under defined fault conditions.
The photographed unit shows several identifiable sections.
The COS designation is associated with control/changeover functions within the BMS-2000 hardware architecture.
Because exact board-function mapping can vary between system generation and vessel specification, replacement should be based on the original board label, drawing and system configuration rather than the front acronym alone.
The IO / I/O module handles input/output signal exchange between the control system and associated machinery signals.
BMS-2000 manuals include dedicated I/O status pages and PCB references for digital inputs and outputs.
Typical signals can include:
The CPU is the processing element of the controller.
The BMS-2000 manual includes dedicated CPU board settings and programming/jumper information, showing that CPU configuration is system-specific.
Therefore, a visually identical CPU board should not automatically be assumed to be ready for another vessel without checking programming and configuration.
PWRA is the power-related module in the rack.
The photographed unit shows voltage-status points and indicators around the PWRA section.
Loss of correct supply voltage can create system faults that may appear to be CPU or I/O failures, which is why power verification should be one of the first troubleshooting steps.
A BMS-2000 installation can contain a substantial number of modules and panels rather than one single control box.
Documented and commercially encountered components include:
Back-Up Control Unit
Main Control Unit
Bridge Control Unit
Control Room Operating Panel
Wheelhouse Display
Control Room Display
Relay Panel / Relay Unit
Servo Panel
Power Unit
Switch ON/OFF Control Unit
Main Telegraph Receiver
Order Indicator
Speed Control Components
Engine-Side Local Panel
Commercial listings of MSR BMS-2000 equipment confirm separate products such as backup control unit, bridge control unit, main control unit, relay panel and servo panel.
That is why this blog targets the complete BMS-2000 spare-parts family, not only the photographed rack.
Marine purchasing departments may search for slightly different designations depending on vessel age.
Common search families include:
BMS-1500
BMS-2000
BMS-2000 II
BMS-2000 III
BMS-2000 IV
Mitsui E&S Systems Research states that the original BMS-2000 entered development/sales in 1997 and that BMS-2000 II followed in 2004.
Its product information also notes that BMS-2000 had been delivered in more than 500 sets before the BMS-2000 II generation and that the later system retained the original concept while incorporating newer electronics and standard backup control.
This long installed base helps explain continuing demand for replacement boards and complete used control units.
BMS-2000 systems are associated with low-speed marine diesel main-engine control.
They may be found aboard:
Bulk Carriers
Container Ships
Oil Tankers
Chemical Tankers
General Cargo Ships
LNG / LPG Carriers
Large Merchant Vessels
Other ships using compatible low-speed diesel propulsion systems
Published manuals show BMS-2000 variants used with Mitsui-MAN B&W diesel engines, including large two-stroke applications.
One particularly valuable SEO and technical relationship is:
BMS-2000 ↔ Mitsui MAN B&W Main Engine
A published BMS-2000 III manual covers a MITSUI-MAN B&W 7S50ME-B9.3 installation, while a documented field case references a MITSUI MAN B&W 6S50MC-C engine with BMS-2000 III control.
Therefore, engineers searching by engine model rather than controller model may still need BMS-2000 spare parts.
Under normal remote operation, the main remote-control system handles the Bridge/Control Room commands.
When selected critical abnormalities occur, backup control can provide an alternate operating route.
For BMS-2000 III, documentation specifically identifies:
CPU abnormality
or
RCS power failure
as conditions where the Backup Control System can be used from the Control Room.
This does not mean every possible system fault can be bypassed through backup control.
The correct changeover procedure and system condition must follow the vessel's manual.
Documented BMS-2000 system indications include items such as:
System Failure
RCS Failure
EPS Failure
ETS Failure
Power Failure
Start Failure
Slow Down Request
Shut Down
Speed Limit
Imperfect Bridge Control Condition
Communication Failure
Analog Input / Output Source Failure
Pick-Up Abnormal
Revolution Detecting Abnormal
C/R Dial Abnormal
Speed Block
The manuals also show dedicated system-failure and communication-status screens for tracing faults across the remote-control architecture.
Check:
Do not replace the CPU board before verifying the power rails.
Possible investigation areas include:
BMS-2000 documentation specifically includes CPU abnormality among system failure causes.
Inspect:
CPU → IO → Control Room Panel → Bridge Units → associated communication lines
The BMS-2000 manual includes a communication-status display showing links between Bridge, Control Room, engine-side devices and the backup system.
Check:
A missing field signal should not immediately be blamed on the IO card.
Potential causes can involve:
A documented BMS-2000 III case showed an astern-start failure caused by a faulty position-detection magnetic switch rather than a central CPU failure.
This is a good example of why systematic troubleshooting is essential.
BMS-2000 III documentation lists causes such as:
RCS CPU abnormal
Analog I/O source failure
Communication failure
Pick-up abnormal
Revolution detecting abnormal
C/R dial abnormal.
For reliable operation:
Because the BMS-2000 directly affects propulsion control, service should be performed by qualified marine automation personnel in accordance with vessel procedures.
SM MARINE SERVICE™ can support sourcing for a wide range of MITSUI / MSR BMS-2000 marine main engine control equipment, subject to exact model and stock availability.
Potential requirements include:
BMS-2000 Back-Up Control Unit
BMS-2000 Main Control Unit
BMS-2000 Bridge Control Unit
BMS-2000 Control Room Unit
CPU Module / CPU PCB
IO / I-O Module
PWRA Power Module
COS Module
EPS PCB
Power Unit
Relay Unit / Relay Panel
Servo Panel
Bridge Control Box
Wheelhouse Display
Control Room Display
Main Telegraph Receiver
Order Indicator
Switch ON/OFF Control Unit
Control Panels
Connectors and associated control cards
Available conditions can include:
New • Used • Refurbished • Reconditioned • Tested Working
For old BMS-2000 electronics, the following information is especially useful:
Unit Name + Board Name + Type + Part Number + Drawing Number + PCB Revision + Photos + Vessel Engine Model + Existing Fault
This is much safer than ordering only by appearance.
BMS-2000 CPU and control boards may use system-specific settings.
The manual includes jumper, communication-termination and programming configuration information for CPU boards.
Therefore:
same-looking board ≠ guaranteed interchangeable board
Before fitting a replacement, verify:
Type / Part Number
Revision
CPU programming
Jumpers / DIP settings
Communication configuration
System generation
Vessel-specific application
Many commercial vessels remain in service for decades.
The vessel's propulsion engine may still be mechanically healthy while aging remote-control electronics begin to fail.
A complete propulsion-control-system replacement can involve:
Therefore, sourcing an original compatible CPU, IO module, backup unit or control panel can be an effective solution for maintaining an existing installation.
Mitsui's own history shows the BMS-2000 platform has been in marine service since the late 1990s and was later developed into multiple successor generations.
Even if the exact component name is unknown, customers can contact SM MARINE SERVICE™.
Send:
Clear Front Photo
Rear / Connector Photo
Nameplate
PCB Label
Part Number
System Model
Main Engine Type
Quantity Required
We can use this information to help identify and source the correct component.
Typical buyer enquiries include:
BMS-2000 CPU
BMS-2000 IO Board
BMS-2000 Power Module
BMS-2000 Backup Control Unit
BMS-2000 Main Control Unit
BMS-2000 Bridge Control Unit
BMS-2000 Display
BMS-2000 Relay Panel
BMS-2000 Control Panel
Mitsui Main Engine Remote Control Spare Parts
It is a marine diesel main-engine remote-control system used to operate and monitor main-engine maneuvering functions from remote control stations.
It is part of the backup control system designed to provide an alternate control path from the Control Room under defined failures of the normal remote-control system.
BMS-2000 III documentation specifically describes use during CPU abnormality or RCS power failure, according to the correct changeover procedure.
The photographed rack visibly identifies COS, IO, CPU and PWRA modules.
Yes. Published BMS-2000 documentation covers Mitsui-MAN B&W main-engine installations.
It should not be assumed. Programming, jumpers, revision and system configuration need verification.
No. Subject to availability, SM MARINE SERVICE™ can support complete control units as well as CPU cards, IO modules, power modules, displays and other associated components.
Requirements can be checked across BMS-2000 family variants, depending on exact part number, configuration and stock.
Yes, subject to availability, requirements may be supplied in new, used, refurbished, reconditioned or tested-working condition.
Often yes. Clear photographs of the front, rear, PCB labels, connectors and installed system help identification, although exact compatibility still needs verification.
Yes. SM MARINE SERVICE™ supports worldwide marine-equipment sourcing and shipping.
MITSUI / MSR BMS-2000 Back-Up Control Unit for marine diesel main engine remote control and maneuvering systems. The rack includes control modules such as COS, IO, CPU and PWRA and forms part of the BMS-2000 backup-control architecture used to support main-engine operation under defined remote-control failures. SM MARINE SERVICE™ supplies BMS-2000 complete units, CPU cards, IO modules, power modules, bridge units, main control units, displays, relay panels and related marine automation spare parts in new, used, refurbished and reconditioned condition, subject to availability, with worldwide shipping and technical sourcing support.
A publicly accessible BMS-2000 III manual contains sections covering:
Remote Control System
Backup Control
Engine Protecting System
Power Sources
Communication Status
System Failures
CPU Board Settings
Spare Parts List
View BMS-2000 III Instruction Manual
A separate BMS-2000 operating manual describes the five subsystem architecture, including ECS, EPS, ETS, EMS and governor control.
View BMS-2000 Operating Manual PDF
The manufacturer's current information page describes the BMS-2000 heritage and BMS-2000 II marine diesel main-engine remote control system.
Official Mitsui E&S Remote Control System Information
