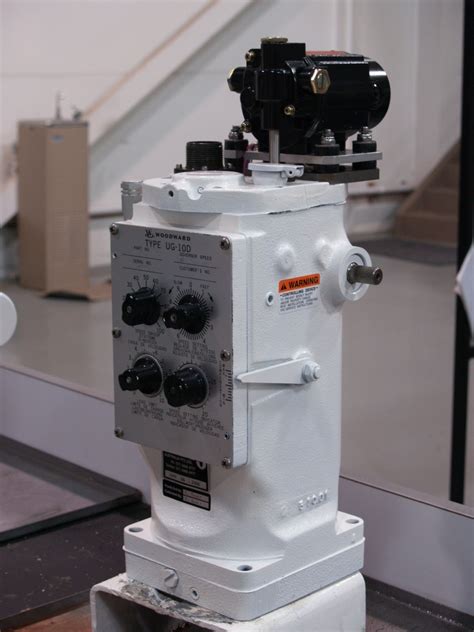

The WOODWARD UG-10D E8526-650 is a mechanical-hydraulic dial governor designed for precise engine-speed and fuel-control regulation.
Woodward's UG Dial Governor family uses mechanical speed sensing together with hydraulic amplification to move the engine fuel-control linkage as operating load changes. The governor can be used in isochronous operation or with adjustable droop for applications such as parallel generator load sharing.
The photographed unit is identified directly from its nameplate as:
Manufacturer: WOODWARD
Type: UG-10D
Part No.: E8526-650
Product Type: Mechanical-Hydraulic Dial Governor
Application: Diesel Engine / Generator Engine Speed Control
When generator or engine load increases, engine speed tends to decrease. The governor responds by increasing fuel delivery.
When load decreases and engine speed tends to rise, the governor reduces fuel delivery.
This continuous mechanical-hydraulic regulation helps maintain:
The Woodward manual describes the UG Dial Governor as a mechanical-hydraulic governor for controlling diesel, gas and dual-fuel engines and steam turbines.
The characteristic front control panel provides direct adjustment of important governor functions.
Used to establish the required relationship between engine speed and load, particularly important when generators operate in parallel.
Allows the required operating speed to be adjusted.
Limits governor output and therefore helps restrict maximum fuel delivery/load according to the application.
Provides a reference for the governor speed-setting position.
The internal compensation system helps stabilize governor response and reduce undesirable speed oscillation or hunting.
The engine drives the governor input shaft. Internal flyweights sense rotational speed while the speeder spring establishes the desired operating point.
When speed changes, the governor's pilot-valve system controls hydraulic oil flow to the power piston. The resulting output-shaft movement changes the engine fuel-control linkage.
In simplified form:
Engine Speed → Flyweights → Pilot Valve → Hydraulic Oil → Power Piston → Governor Output Shaft → Fuel Rack → Engine Speed Correction
This mechanical-hydraulic arrangement is one reason the UG family has remained useful on marine and industrial engines for many years.
Typical WOODWARD UG-10D components include:
Drive Shaft • Oil Pump • Flyweight Assembly • Speeder Spring • Pilot Valve • Power Piston • Output Shaft • Speed-Droop Mechanism • Speed-Setting Mechanism • Load-Limit Mechanism • Compensation System • Oil Reservoir • Oil Sight Glass • Bearings • Bushes • Oil Seals • O-Rings • Gaskets
Exact replacement parts should always be selected according to the governor's complete part number and serial number.
Woodward specifically recommends providing the part number and serial number from the nameplate when ordering replacement parts.
WOODWARD UG governors can be encountered on:
Marine Auxiliary Engines • Diesel Generator Engines • Main Engines where specified • Emergency Generators • Pump-Driving Engines • Industrial Diesel Engines • Gas Engines • Dual-Fuel Engines
Typical vessels include:
Bulk Carriers • Container Ships • Oil Tankers • Chemical Tankers • LNG/LPG Carriers • General Cargo Ships • Offshore Vessels • Tugboats • Passenger Ships • Fishing Vessels
Possible causes include incorrect compensation adjustment, contaminated governor oil, fuel-linkage problems, internal wear or pilot-valve problems.
Check the speed setting, governor drive condition, linkage adjustment and engine fuel system.
Inspect governor oil condition, internal hydraulic operation, pilot valve and mechanical fuel linkage.
Check shaft seals, gaskets, O-rings, sight-glass connections and housing sealing points.
Verify speed droop adjustment, generator controls, governor calibration and mechanical linkage.
Do not automatically assume the governor is defective. Check engine condition, fuel system, generator loading and governor settings together.
Woodward's official manual contains dedicated installation, operation, adjustment and troubleshooting guidance for the UG Dial Governor family.
SM MARINE SERVICE™ can support sourcing of:
Complete WOODWARD UG-10D Governor • E8526-650 Replacement Governor • UG-10D Spare Parts • Seal Kits • Gasket Kits • Bearings • Bushes • Pilot Valve Components • Power Piston Components • Drive Shaft • Output Shaft • Oil Sight Glass • Speed-Setting Components • Speed-Droop Components • Load-Limit Components • Internal Governor Parts
Available condition may include:
New • Used • Tested Working • Refurbished • Reconditioned • Professionally Overhauled
A UG-10D with another part number should not automatically be considered a direct replacement for E8526-650.
Before ordering, confirm:
Type + Part Number + Serial Number + Governor Speed Range + Engine Maker/Model + Drive Arrangement + Rotation + Output Shaft + Fuel Linkage
UG governors remain valuable on existing marine engines because they provide robust mechanical-hydraulic control without requiring modern software-based programming.
Replacing an existing governor with the correctly matched UG-10D can also avoid modification of the engine's:
Governor Drive • Fuel Linkage • Mounting • Speed-Control System • Generator Load-Sharing Arrangement
This is particularly important for older vessels where the original engine and generator control system remains in service.
For customers searching different UG-10D specifications, SM MARINE SERVICE™ also lists another WOODWARD UG-10D E8526-785 Marine Governor.
WOODWARD UG-10D E8526-785 Marine Governor – Spare Parts, Repair & Manual
The E8526-785 should not automatically be treated as interchangeable with the E8526-650 on this page. Exact part number, speed range and configuration should be matched.
SM MARINE SERVICE™ also supports the smaller WOODWARD UG-8L governor family:
WOODWARD UG-8L Marine Governor – Spare Parts, Supplier, Repair & Troubleshooting
These internal links help buyers searching for different Woodward governor configurations while creating a stronger WOODWARD Governor SEO cluster across the website.
Customers maintaining older marine engines frequently require governors together with pressure-monitoring and pneumatic-control equipment.
NAGANO KE-21 Pneumatic Pressure Transmitter – Marine Spare Parts Supplier
The NAGANO KE-21 page provides another internal connection to marine engine-room instrumentation and automation equipment available through SM MARINE SERVICE™.
The UG-10D is a mechanical-hydraulic dial governor designed to regulate the speed and fuel control of engines and other prime movers.
The nameplate on the supplied product photograph identifies Part No. E8526-650.
No. Part number, speed range, drive configuration, rotation, output arrangement and engine application should be verified before replacement.
Possible causes include incorrect compensation, contaminated oil, mechanical linkage problems, pilot-valve issues or internal wear.
Yes. The UG family is serviceable, and Woodward documentation includes replacement-parts and maintenance information.
SM MARINE SERVICE™ can support sourcing of WOODWARD marine governors, replacement units and governor spare parts for international customers, subject to availability.
Depending on stock, used, tested, refurbished, reconditioned and professionally overhauled governor units can be supplied.
Yes. Worldwide marine spare-parts shipping and equipment sourcing support are available.
The WOODWARD UG-10D E8526-650 is a mechanical-hydraulic dial governor designed for reliable diesel-engine and generator speed control. The UG-10D incorporates speed setting, adjustable droop, load-limit and compensation functions for stable engine operation. SM MARINE SERVICE™ supports worldwide sourcing of WOODWARD UG-10D governors, replacement units and spare parts in new, used, tested, refurbished, reconditioned and overhauled condition, subject to availability.
This is the official Woodward manual covering UG-5.7, UG-8 and UG-10 Dial Governors, including installation, operation, adjustment, maintenance and troubleshooting information.
Download Official WOODWARD UG Dial Governor Manual 03040 PDF
Woodward also identifies separate publications for UG governor oils, booster servomotors, shutdown solenoids and UG Dial repair procedures.
