WOODWARD UG-10D E8526-785 Marine Hydraulic Governor

The WOODWARD UG-10D, part number E8526-785, is a high-output mechanical-hydraulic dial governor designed for precise control of diesel engines, gas engines, dual-fuel engines, generator engines and other prime movers.

The photographed unit has a governor speed range of 920–1060 rpm and is equipped with a top-mounted electric speed-adjusting or synchronizing motor. Its front panel provides direct adjustment and indication of speed droop, speed setting, load limit, idle setting and compensation.

This combination makes the UG-10D particularly suitable for generator applications where stable frequency, remote speed matching and controlled load sharing are required.

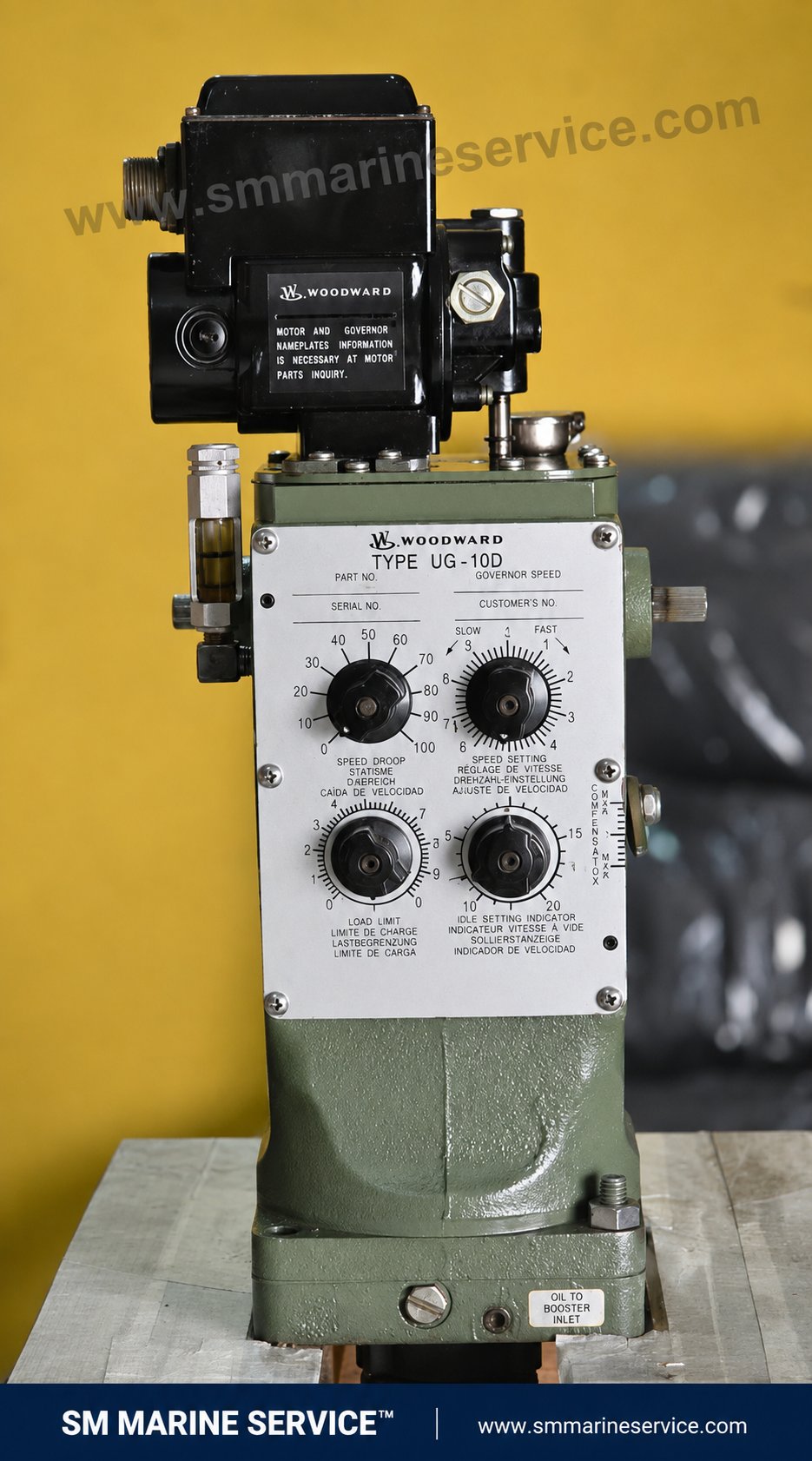

Complete WOODWARD UG-10D dial governor, part number E8526-785, with electric speed-adjusting motor, oil sight glass and front control panel.

Product Information

The exact motor voltage, frequency, wiring and gear ratio must be verified from the separate motor nameplate before connection.

Product Introduction

An engine governor must maintain the required speed even when the load changes.

When electrical load is applied to a generator, the engine tends to slow down. The UG-10D responds by moving the engine fuel-control linkage toward increased fuel delivery.

When the load is removed, engine speed tends to rise. The governor reduces fuel delivery until the selected speed is restored.

The WOODWARD UG-10D helps maintain:

• Stable engine speed
• Stable generator frequency
• Controlled load acceptance
• Correct parallel-generator load sharing
• Smooth acceleration and deceleration
• Reliable idle and rated-speed settings
• Maximum-fuel limitation
• Remote synchronization

What Is the WOODWARD UG-10D?

The UG-10D is the dial-control version of the Woodward UG-10 mechanical-hydraulic governor.

“UG” refers to Woodward’s Universal Governor family, while “10” identifies the higher-output model within the UG-5.7, UG-8 and UG-10 series. The “D” identifies the dial-type control panel.

Compared with lever-style governors, a UG dial governor provides clear front-panel controls for:

• Speed droop
• Speed setting or synchronizer
• Load limit
• Idle-speed indication
• Compensation adjustment

These controls allow marine engineers to monitor and adjust essential governor functions without opening the governor housing.

Exact Nameplate Identification

The original nameplate confirms:

• Type: UG-10D
• Part No.: E8526-785
• Serial No.: 26041581
• Governor Speed: 920–1060 rpm

The serial number identifies this individual governor. Replacement matching should primarily use the complete model, part number, speed range, motor details and physical configuration.

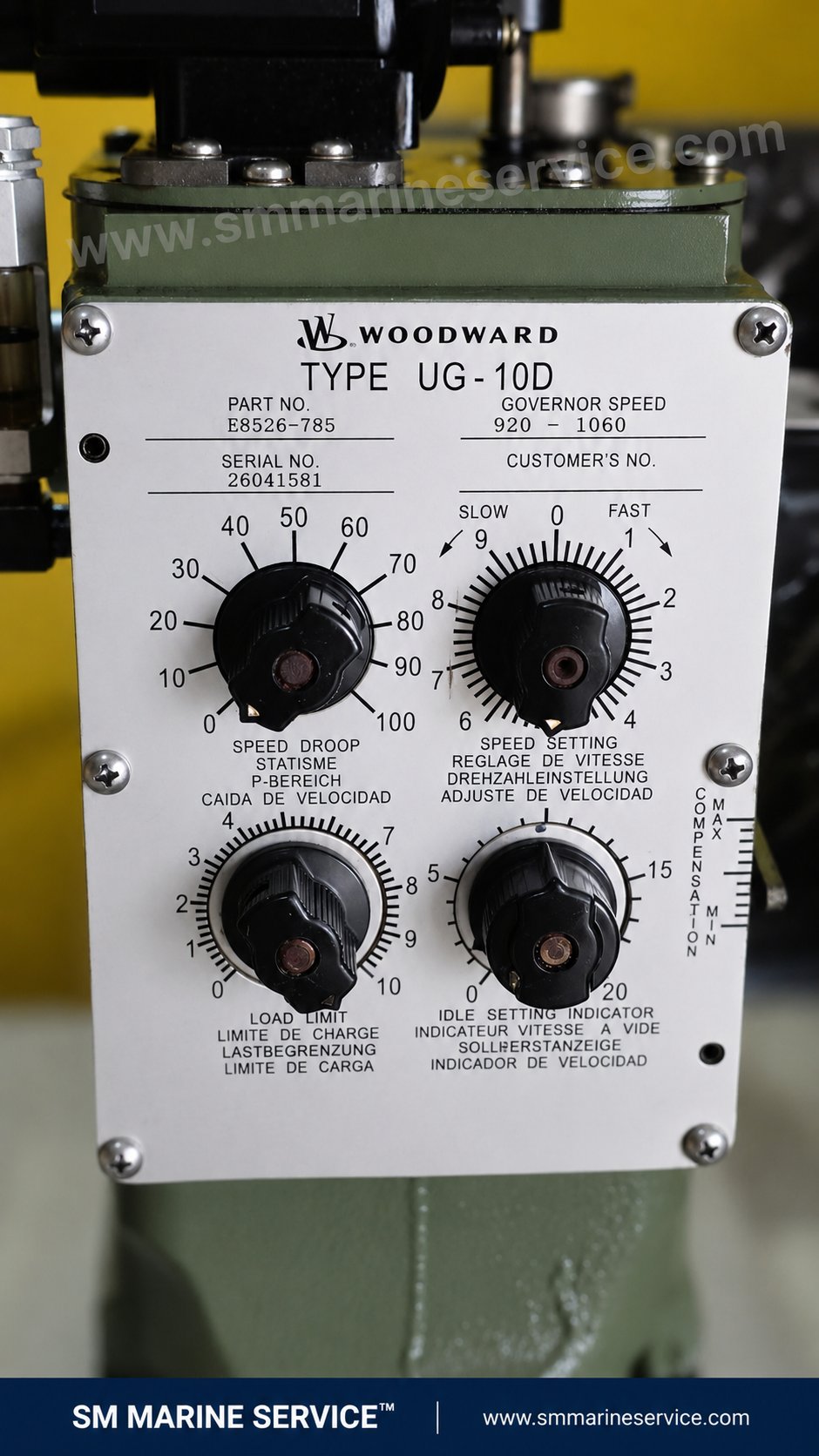

Close-up confirming WOODWARD UG-10D, part number E8526-785, serial number 26041581 and governor speed range 920–1060 rpm.

How the WOODWARD UG-10D Works

The UG-10D combines centrifugal speed sensing with hydraulic power amplification.

The basic operating sequence is:

1. The engine rotates the governor drive shaft.
2. The governor oil pump produces internal hydraulic pressure.
3. The flyweight or ballhead assembly senses drive speed.
4. The speeder spring establishes the selected operating speed.
5. A change in engine speed moves the pilot-valve mechanism.
6. The pilot valve controls oil flow to the power piston.
7. The power piston rotates the governor output shaft.
8. The output shaft moves the engine fuel-control linkage.
9. The compensation system stabilizes the response.
10. The governor returns to equilibrium when the selected speed is restored.

When Load Increases

• Engine speed starts to decrease.
• Flyweight force is reduced.
• The pilot valve moves.
• Hydraulic oil acts on the power piston.
• The output shaft increases fuel delivery.
• Engine speed recovers.

When Load Decreases

• Engine speed starts to increase.
• Flyweight force increases.
• The pilot valve moves in the opposite direction.
• The power piston reduces fuel delivery.
• Engine speed returns toward the selected value.

Main Features

• High-output mechanical-hydraulic governor
• Dial-type front control panel
• Governor speed range of 920–1060 rpm on this exact unit
• Electric remote speed-adjusting motor
• Manual speed setting
• Adjustable speed droop
• Adjustable load limit
• Idle-speed setting and indication
• Compensation adjustment
• Independent internal oil system
• External oil-level sight glass
• Mechanical fuel-control output
• Isochronous operation capability
• Droop operation for generator load sharing
• Suitable for marine and industrial engines
• Serviceable internal mechanical and hydraulic parts
• Proven Woodward UG-series design
• No software programming required

Main Technical Specifications

The values belonging specifically to this unit are its part number and 920–1060 rpm speed range. Other UG-10 family data should be confirmed against the correct Woodward manual and engine application.

Front Panel Controls Explained

1. Speed Droop

The Speed Droop control is graduated from 0 to 100.

Droop allows engine speed to reduce proportionally as load increases. It is essential when generators operate in parallel and need to divide real load correctly.

An incorrect droop setting may cause:

• Poor load sharing
• One generator taking excessive load
• Hunting between generators
• Unstable frequency
• Reverse-power conditions
• Difficulty transferring load

2. Speed Setting

The Speed Setting control changes the governor’s desired operating speed.

It is used to:

• Increase or decrease engine speed
• Match generator frequency
• Synchronize an incoming generator
• Adjust generator load when operating in droop mode

The top-mounted motor can operate this mechanism remotely.

3. Load Limit

The Load Limit restricts the maximum travel of the governor output shaft toward increased fuel.

It can be used to:

• Prevent excessive fuel delivery
• Limit engine loading
• Reduce overload risk
• Control smoke during acceleration
• Assist with shutdown when moved toward zero, depending on configuration

The load-limit setting must not be changed without understanding the engine’s fuel-linkage requirements.

4. Idle Setting Indicator

The Idle Setting Indicator helps establish or observe the low-speed setting of the governor.

Incorrect adjustment can cause:

• Idle speed too low
• Engine stalling
• Idle speed too high
• Difficulty transferring from idle to rated speed
• Incorrect starting behavior

5. Compensation Adjustment

The compensation needle and indicator control the governor’s transient response.

Proper compensation provides a fast response without continuous hunting or excessive overshoot.

Electric Speed-Adjusting Motor

The black assembly mounted on top is the governor’s electric speed-adjusting or synchronizing motor system.

Its purpose is to allow remote speed adjustment from an engine-control panel, switchboard or generator synchronization system.

Typical applications include:

• Remote increase/decrease speed control
• Generator frequency matching
• Synchronization before breaker closing
• Load adjustment after paralleling
• Remote engine-speed correction

The motor and governor nameplates are both required when ordering motor parts. The motor’s voltage, current, frequency, duty and connection arrangement should not be assumed from the governor nameplate.

Main Components

The WOODWARD UG-10D generally contains:

• Drive shaft
• Internal oil pump
• Pressure-relief valve
• Accumulator pistons and springs
• Flyweight or ballhead assembly
• Speeder spring
• Pilot-valve plunger
• Rotating pilot-valve bushing
• Power piston
• Terminal or output shaft
• Speed-droop linkage
• Synchronizer mechanism
• Speed-setting motor
• Load-limit mechanism
• Idle-setting mechanism
• Compensation needle valve
• Buffer piston and springs
• Oil reservoir
• Oil sight glass
• Internal control linkage
• Bearings and bushes
• Oil seals, O-rings and gaskets
• External electrical connector
• Oil-to-booster connection, where used

Typical Woodward dial-governor schematic showing the flyweights, speeder spring, pilot valve, power piston, oil pump, compensation system and front-panel control mechanisms.
Technical image source: Marine auxiliary engine hydraulic governor reference

Oil-to-Booster Connection

The photographed governor has a connection marked OIL TO BOOSTER INLET.

A booster servomotor may be used where the governor’s mechanical output requires additional force to operate the engine’s fuel-control mechanism.

Before connecting this port:

• Verify the engine’s original governor piping diagram.
• Confirm the correct oil-flow arrangement.
• Inspect pipes and fittings for contamination.
• Confirm booster compatibility.
• Do not plug or reroute the connection without technical confirmation.

Marine Applications

The WOODWARD UG-10D is commonly suitable for:

• Marine auxiliary engines
• Shipboard generator engines
• Diesel generator sets
• Main propulsion engines, where specified
• Dual-fuel engines
• Gas engines
• Steam turbines
• Emergency generator engines
• Pump-driving engines
• Compressor-driving engines
• Industrial power-generation units

Typical vessel applications include:

• Cargo ships
• Bulk carriers
• Container ships
• Tankers
• Offshore vessels
• Passenger ships
• Ferries
• Tugboats
• Fishing vessels
• Workboats
• Research vessels

Common Problems and Troubleshooting

1. Engine Speed Hunting

Possible causes include:

• Incorrect compensation setting
• Air in the governor oil
• Low oil level
• Contaminated or unsuitable oil
• Sticking pilot valve
• Worn internal components
• Loose or binding fuel linkage
• Incorrect speed-droop setting
• Engine combustion problems
• Unstable generator load

2. Remote Speed Adjustment Does Not Work

Check:

• Motor power supply
• Increase/decrease command
• Electrical connector
• Cable continuity
• Motor winding
• Carbon brush condition, where applicable
• Limit switches
• Gear mechanism
• Mechanical coupling between motor and synchronizer
• Binding speed-setting mechanism

The manual Speed Setting control should also be tested to distinguish an electrical fault from a hydraulic or mechanical fault.

3. Governor Does Not Increase Fuel

Possible causes include:

• Load limit set too low
• Speed setting too low
• Restricted terminal-shaft movement
• Binding fuel linkage
• Low internal oil pressure
• Sticking pilot valve
• Worn oil pump
• Power-piston leakage
• Incorrect booster connection

4. Governor Does Not Reduce Fuel

Inspect:

• Fuel-rack binding
• Incorrect output linkage
• Pilot-valve fault
• Speed-setting mechanism
• Load-limit mechanism
• Internal contamination
• Shutdown linkage
• Mechanical obstruction

5. Slow Load Response

Possible causes include:

• Incorrect oil viscosity
• Low oil level
• Air in the hydraulic system
• Restricted oil passages
• Incorrect compensation
• Worn oil pump
• Power-piston leakage
• Booster servomotor problem
• Excessive linkage friction

6. Oil Leakage

Check:

• Oil sight glass
• Shaft seals
• Cover gaskets
• O-rings
• Drain and filling plugs
• Booster connections
• Housing condition
• Excessive oil level

7. Output-Shaft Jiggle

High-frequency movement may result from:

• Drive-shaft misalignment
• Rough drive gears
• Excessive backlash
• Tight drive coupling
• Engine torsional vibration
• Internal component wear
• Contaminated oil

8. Poor Generator Load Sharing

Possible causes include:

• Incorrect droop setting
• Faulty speed-adjusting motor
• Incorrect synchronization
• Binding fuel linkage
• Governor calibration error
• External load-sharing control fault
• Generator or switchboard problem

9. Generator Frequency Is Unstable

Inspect:

• Governor hunting
• Speed-setting motor
• Compensation
• Governor oil
• Fuel linkage
• Engine fuel system
• Electrical load variation
• Droop setting
• Load-sharing system

Common Alarms and Fault Messages

The UG-10D itself normally has no digital display or numerical alarm codes.

Related alarms may be generated by the engine or generator control system:

• Engine overspeed
• Engine underspeed
• Generator frequency high
• Generator frequency low
• Load-sharing failure
• Reverse power
• Generator overload
• Speed-adjusting motor failure
• Start failure
• Shutdown activated
• Low lubricating-oil pressure

No numerical fault code should be assigned directly to the UG-10D unless documented by the connected control system.

Maintenance Tips

• Check governor oil level through the sight glass.
• Use clean oil of the correct viscosity and compatibility.
• Do not mix incompatible oil types.
• Replace contaminated, oxidized or aerated oil.
• Woodward guidance recommends regular flushing and oil replacement; service frequency should reflect operating conditions.
• Inspect for leakage around shafts, covers and connections.
• Test manual speed adjustment.
• Test the remote electric speed-adjusting motor.
• Inspect the motor connector and wiring.
• Check fuel-linkage movement.
• Record all original dial positions before adjustment.
• Check mounting and drive alignment.
• Inspect the oil-to-booster piping.
• Check for unusual noise, vibration or output-shaft jiggle.
• Bench-test after overhaul.
• Load-test the governor after installation.
• Verify independent engine overspeed protection.

The engine must have an overspeed shutdown device that operates independently from the normal governor-control system.

Spare Parts & Replacement Availability

SM MARINE SERVICE™ can support sourcing of complete WOODWARD UG-10D governors and associated spare parts, subject to availability.

Possible supply items include:

• Complete UG-10D governor
• Exact E8526-785 replacement
• Exchange governor
• Speed-adjusting motor
• Motor brushes and internal motor parts
• Motor gear assembly
• Electrical connector
• Governor repair kit
• Seal and gasket kit
• Oil sight-glass assembly
• Drive shaft
• Output or terminal shaft
• Pilot valve
• Pilot-valve bushing
• Power piston
• Ballhead and flyweight assembly
• Speeder spring
• Internal oil pump
• Relief valve
• Accumulator springs
• Compensation components
• Speed-droop mechanism
• Speed-setting mechanism
• Load-limit mechanism
• Idle-setting parts
• Bearings and bushes
• Booster servomotor components
• Internal mechanical parts

Available conditions may include:

• New
• New old stock
• Used
• Refurbished
• Reconditioned
• Overhauled
• Tested working
• Exchange basis

Replacement Matching Requirements

Before replacing this governor, confirm:

1. Model: UG-10D
2. Part number: E8526-785
3. Speed range: 920–1060 rpm
4. Motor voltage and specification
5. Engine manufacturer and model
6. Engine rated speed
7. Governor drive speed
8. Drive rotation
9. Drive-shaft configuration
10. Output-shaft position and travel
11. Fuel-linkage direction
12. Booster servomotor arrangement
13. Electrical connector and wiring
14. Mounting dimensions
15. Required droop and calibration settings

Another UG-10D with a different part number or speed range should not automatically be treated as a direct replacement.

Why Ships Still Use the WOODWARD UG-10D

The UG-10D remains widely valued because it provides:

• Proven mechanical-hydraulic control
• High output capacity
• Stable generator speed
• Remote synchronization capability
• Adjustable droop
• Load-limiting control
• Repairable construction
• Worldwide service familiarity
• No software dependency
• Long operating life
• Compatibility with existing marine engines

Changing to a different governor may require modifications to the drive, fuel linkage, speed-control wiring, booster system and engine protection. Sourcing the correct UG-10D is often the safest and most practical solution.

Frequently Asked Questions

What is the WOODWARD UG-10D?

The UG-10D is a high-output mechanical-hydraulic dial governor used to control diesel, gas and dual-fuel engines and other prime movers.

What is the exact part number in the photograph?

The nameplate shows E8526-785.

What is the governor speed range?

The photographed unit is rated for 920–1060 rpm.

What does the electric motor do?

It remotely changes the governor speed setting for generator synchronization, frequency matching and load adjustment.

What is the work output of the UG-10?

Woodward documentation lists approximately 11.7 ft-lb or 15.9 N·m maximum work output.

What is the internal oil pressure?

The UG-10 family uses approximately 150 psi or 1034 kPa internal hydraulic oil pressure.

What does the Load Limit control do?

It restricts maximum output-shaft travel toward increased fuel, helping prevent excessive fuel delivery or engine loading.

Why does a UG-10D governor hunt?

Possible causes include incorrect compensation, aerated or contaminated oil, a sticking pilot valve, worn components, binding linkage or engine fuel-system problems.

Can a different UG-10D replace E8526-785?

Only after confirming its speed range, motor specification, drive arrangement, output linkage and engine compatibility.

Can I buy a used or refurbished E8526-785 governor?

Yes. SM MARINE SERVICE™ can support the sourcing of used, refurbished, reconditioned, overhauled and tested units, depending on availability.

Are UG-10D spare parts available?

Speed-setting motors, repair kits, hydraulic components, shafts, seals, springs, pilot valves and other parts may be sourced depending on configuration.

Can SM MARINE SERVICE™ supply this governor worldwide?

Yes. Worldwide sourcing and shipping support can be provided to shipowners, ship managers, marine engineers, shipyards, power plants and spare-parts buyers.

Short Product Description

The WOODWARD UG-10D E8526-785 is a high-output mechanical-hydraulic dial governor with a 920–1060 rpm operating range. It includes an electric speed-adjusting motor, speed-droop control, speed setting, load limit, idle setting, compensation adjustment and an oil-to-booster connection. SM MARINE SERVICE™ can support worldwide supply of used, refurbished, reconditioned, overhauled and tested UG-10D governors and spare parts.

User Manual & Technical Resources

???? WOODWARD UG Dial Governor Manual 03040

This manual covers the UG-5.7, UG-8 and UG-10 Dial Governor family, including operation, adjustment, troubleshooting, parts and auxiliary equipment.

Download UG Dial Governor Manual 03040 PDF

???? Official WOODWARD Installation Manual 54042

Download Official Woodward Manual 54042

This official document covers installation requirements for UG-5.7, UG-8 and UG-10 governors.

???? WOODWARD UG Governor Product Specification 03029

View UG Governor Product Specification

???? WOODWARD Hydraulic Governor Oil Guidance 25071

View Official Woodward Oil Guidance

Always verify the correct manual revision, governor part number and motor documentation before installation, wiring, calibration or overhaul.

---

SM MARINE SERVICE™
Marine Automation & Navigation Equipment Supplier

Available Condition:
• New Equipment • Used Equipment • Refurbished Equipment • Reconditioned Equipment

Stock Location:
• Bangladesh • China

Services:
• Worldwide Shipping • Technical Support • Spare Parts Supply • Marine Equipment Sourcing

Contact Information
SM MARINE SERVICE™ Samir Market, DT Road, Pahartali, beside CDA Market, Chattogram, Bangladesh
Mobile / WhatsApp / Viber: +88 01818 929292
Email: info@smmarineservice.com
Website: www.smmarineservice.com

-

+

Buy Now
