WOODWARD UG-8L Mechanical-Hydraulic Marine Governor

The WOODWARD UG-8L is a proven mechanical-hydraulic lever governor used to control the speed and fuel delivery of marine diesel engines, dual-fuel engines, generator engines and other prime movers.

It belongs to Woodward’s established Universal Governor—or UG—family. This governor mechanically connects to an engine’s fuel rack, fuel pump control shaft or fuel valve linkage and adjusts fuel delivery whenever engine speed changes.

The photographed unit is clearly marked WOODWARD TYPE UG-8L. It includes manual speed adjustment, an oil-level sight glass, compensation adjustment and top-mounted auxiliary equipment.





WOODWARD UG-8L mechanical-hydraulic governor supplied by SM MARINE SERVICE™, showing the output shaft, oil sight glass, speed-control panel and upper auxiliary assembly.

Product Information

Specifications and configuration should be confirmed against the individual governor part number and original engine documentation.

Product Introduction

The UG-8L governor automatically reacts whenever engine load changes.

When load increases, engine speed initially falls. The governor detects the reduction and moves the fuel-control linkage toward increased fuel delivery.

When load decreases, engine speed initially rises. The governor reduces fuel delivery until the selected speed is restored.

This continuous response helps maintain:

• Stable engine speed
• Stable generator frequency
• Correct response to electrical load changes
• Controlled acceleration
• Balanced operation between parallel generators
• Reliable engine performance
• Protection against damaging speed fluctuation

What Does “UG-8L” Mean?

UG identifies Woodward’s Universal Governor family.

The 8 identifies the governor’s output-capacity class, while L indicates a lever-type configuration.

The UG-8L is different from a standard UG-8 dial governor in its control arrangement and available auxiliary features. Therefore, UG-8, UG-8L, UG-8PL and other UG-family models should not automatically be treated as interchangeable.

Identifying the Photographed Governor

The front panel clearly confirms:

• Manufacturer: WOODWARD
• Model: UG-8L
• Manual speed-increase control
• Compensation adjustment
• Oil-level sight glass
• Mechanical output shaft
• Top-mounted auxiliary control assembly

The identification fields for Part No., Serial No., Governor RPM and Customer’s No. are blank. Exact replacement matching will therefore require additional information from the original engine, governor documents or mounting configuration.

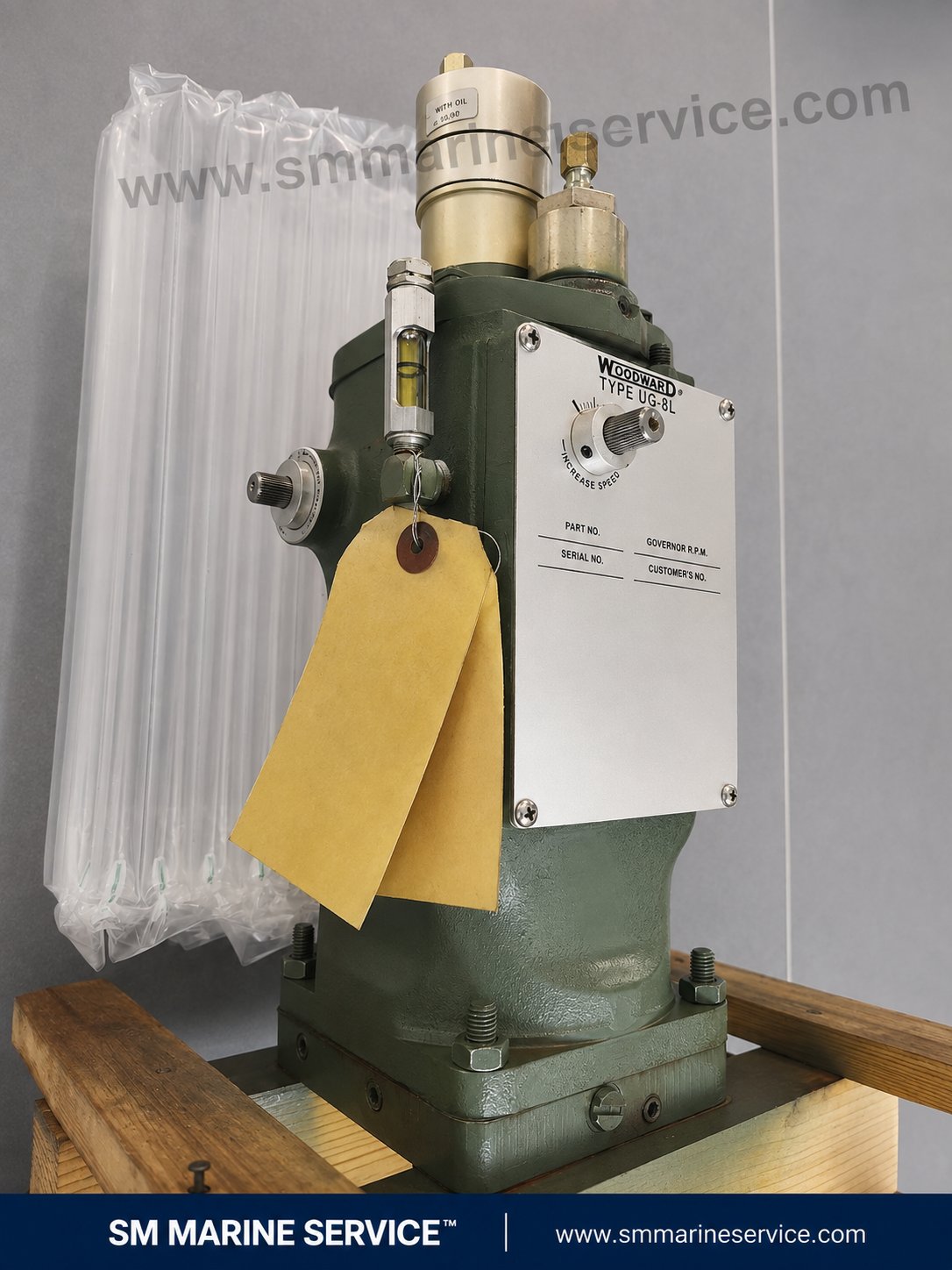

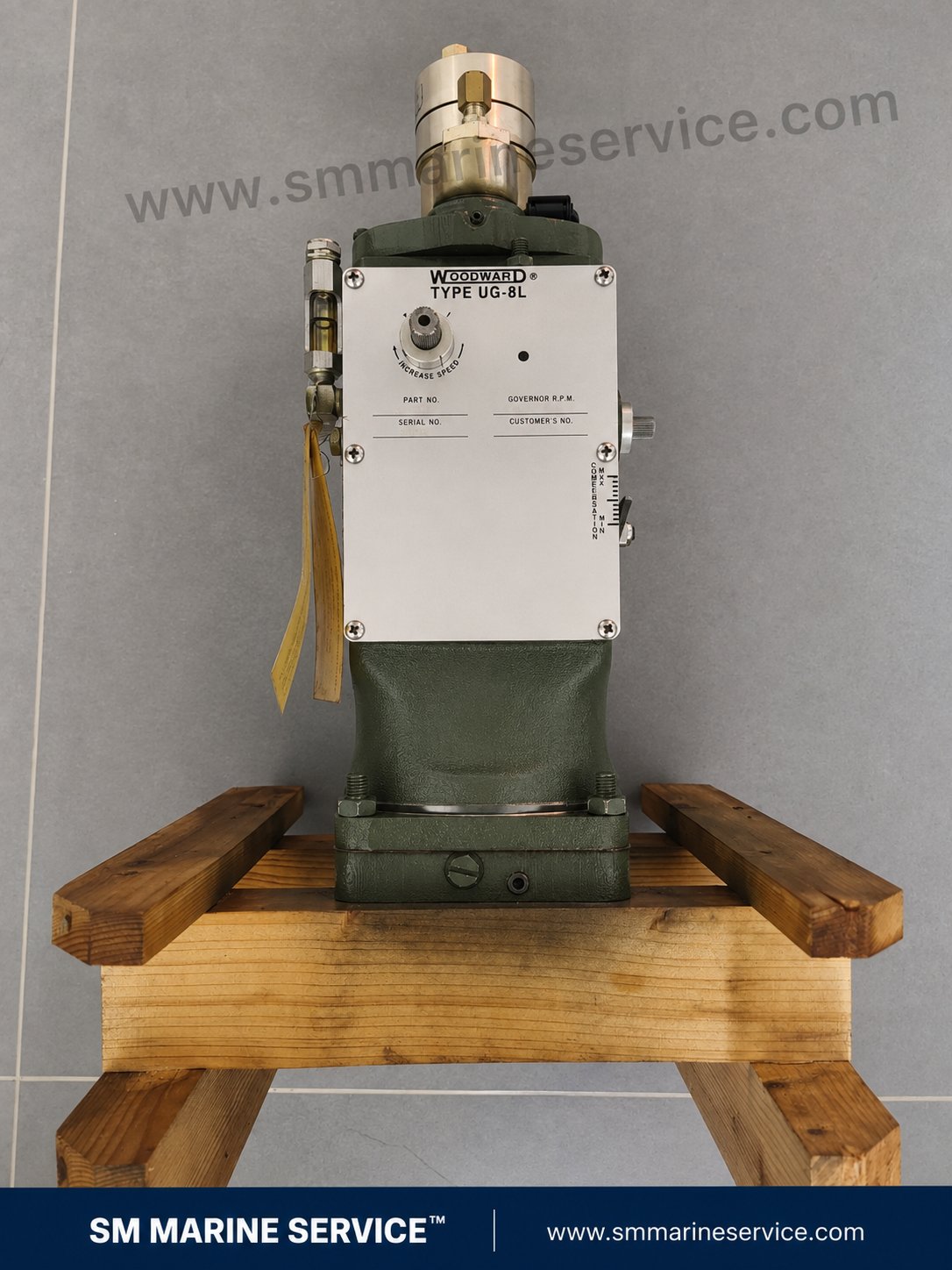

Front view of the WOODWARD UG-8L showing the manual speed-setting shaft, compensation control, oil-level indicator and identification panel.

How the WOODWARD UG-8L Works

The UG-8L uses centrifugal speed sensing and hydraulic amplification.

The basic operating sequence is:

1. The governor drive shaft rotates with the engine.
2. The internal oil pump develops hydraulic pressure.
3. Flyweights respond to governor-drive speed.
4. The speeder spring establishes the selected speed.
5. Speed changes move the pilot-valve mechanism.
6. The pilot valve controls oil flow to the power piston.
7. The power piston rotates the output or terminal shaft.
8. The terminal shaft moves the engine’s fuel-control linkage.
9. The compensation system stabilizes the response.
10. The governor returns to equilibrium when engine speed is restored.

Load Increase

When engine load increases:

• Engine speed decreases.
• Flyweight force is reduced.
• The pilot valve changes position.
• Hydraulic pressure moves the power piston.
• The output shaft increases fuel delivery.
• Engine speed returns toward the selected value.

Load Decrease

When engine load decreases:

• Engine speed increases.
• Flyweight force increases.
• The pilot valve moves in the opposite direction.
• The power piston reduces fuel delivery.
• The engine returns toward its selected speed.

Main Features

• Mechanical-hydraulic speed regulation
• High-output hydraulic power piston
• Manual speed-setting control
• Adjustable compensation
• Mechanical output or terminal shaft
• Independent internal oil supply
• External oil-level sight glass
• Stable isochronous operation where appropriately configured
• Droop capability when fitted and adjusted
• Suitable for diesel and dual-fuel engines
• Suitable for generator and industrial applications
• Optional shutdown equipment
• Optional pneumatic speed-setting equipment
• Optional manifold-pressure fuel limiter
• Serviceable internal parts
• No software programming required
• Proven long-service marine design

Main Technical Specifications

The photographed governor’s exact drive speed, rotation, shaft arrangement and auxiliary-device calibration cannot be determined from the blank front-panel fields.

Main Components

A WOODWARD UG-8L typically contains:

• Drive shaft
• Internal oil pump
• Relief valve
• Flyweight or ballhead assembly
• Speeder spring
• Speed-setting shaft
• Pilot-valve plunger
• Rotating pilot-valve bushing
• Power piston
• Terminal or output shaft
• Compensation system
• Compensation needle valve
• Buffer piston
• Buffer springs
• Accumulator springs
• Oil reservoir
• Oil sight glass
• Control linkage
• Shutdown mechanism, where fitted
• Pneumatic adjustment equipment, where fitted
• Manifold-pressure fuel limiter, where fitted
• Gaskets, seals, O-rings, bearings and bushes

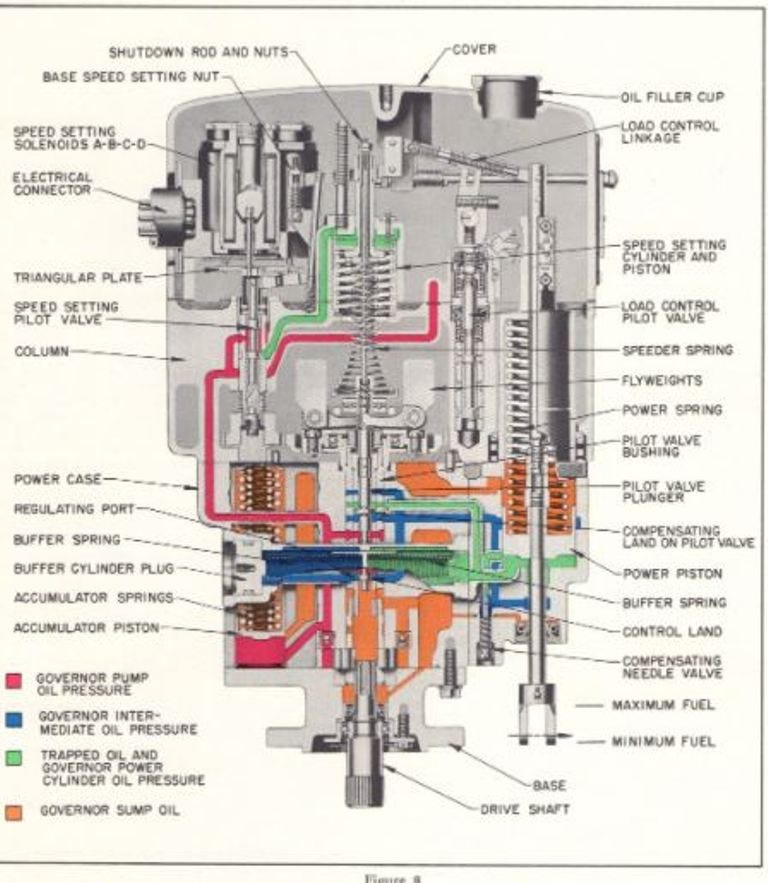

Typical mechanical-hydraulic governor schematic showing the flyweights, pilot valve, power piston, oil-pressure passages and compensation system. Always use the applicable Woodward manual for exact UG-8L servicing.

Speed Control

The front speed-setting shaft allows the required governor speed to be increased or decreased.

Before adjustment:

• Confirm the engine manufacturer’s permitted speed.
• Confirm the generator frequency requirements.
• Check the mechanical linkage.
• Verify the governor drive ratio.
• Confirm that independent overspeed protection is operational.
• Mark the original adjustment position.

The governor should never be adjusted beyond the engine’s approved operating-speed range.

Compensation Adjustment

The compensation system prevents repeated overcorrection after a load change.

Incorrect compensation may cause:

• Engine hunting
• Slow recovery
• Overshoot
• Undershoot
• Unstable generator frequency
• Repeated fuel-rack movement

If compensation is too low, the engine may continue hunting. If it is too high, response may become slow. Adjustment should be performed gradually by an experienced technician while observing engine response under controlled load changes.

Optional Auxiliary Equipment

Woodward documentation identifies several optional devices used with UG lever governors:

• Electric solenoid shutdown
• Low lubricating-oil-pressure shutdown
• Pneumatic speed adjustment
• Manifold-pressure fuel limiter
• Magnetic speed pickup
• Manual speed-adjusting devices
• Special vibration-resistant equipment

The photographed unit has top-mounted auxiliary hardware. Its exact function and operating pressure should be confirmed through its individual drawings or additional identification markings.

Marine Applications

The WOODWARD UG-8L may be used on:

• Marine auxiliary engines
• Shipboard generator engines
• Diesel generator sets
• Main propulsion engines
• Dual-fuel engines
• Emergency generators
• Gas engines
• Steam turbines
• Pump-driving engines
• Compressor-driving engines
• Industrial prime movers
• Stationary power-generation equipment

Common vessel applications include:

• Cargo ships
• Container ships
• Bulk carriers
• Tankers
• Offshore support vessels
• Passenger vessels
• Ferries
• Tugboats
• Fishing vessels
• Research vessels
• Workboats

Common Problems and Troubleshooting

1. Engine Speed Hunting

Possible causes include:

• Air trapped in the governor oil
• Low oil level
• Dirty or unsuitable oil
• Incorrect compensation adjustment
• Binding engine fuel linkage
• Excessive linkage backlash
• Sticking pilot valve
• Worn internal governor components
• Faulty fuel injectors or fuel pumps
• Irregular engine combustion
• Unstable driven load

The engine and driven equipment must also be inspected because poor governing is not always caused by the governor itself.

2. Governor Output-Shaft Jiggle

High-frequency output-shaft movement may be caused by:

• Drive-shaft misalignment
• Excessively tight drive coupling
• Worn drive components
• Engine torsional vibration
• Incorrect mounting
• Contaminated governor oil
• Internal wear

3. Slow Response to Load Changes

Check for:

• Incorrect oil viscosity
• Low oil level
• Restricted internal oil passages
• Incorrect compensation
• Worn internal oil pump
• Power-piston leakage
• Pilot-valve problems
• Binding external linkage
• Excessive mechanical friction

4. Engine Does Not Reach Required Speed

Possible causes include:

• Incorrect speed setting
• Mechanical stop restriction
• Faulty remote speed-setting device
• Insufficient governor output travel
• Restricted fuel rack
• Incorrect linkage geometry
• Insufficient fuel supply
• Engine overload
• Internal governor wear

5. Engine Speed Too High

Inspect:

• Speed-setting position
• Fuel-rack linkage
• Shutdown linkage
• Pilot valve
• Speeder spring
• Output-shaft position
• Governor-drive arrangement
• Independent overspeed trip

Do not rely on the governor as the engine’s only overspeed protection.

6. Oil Leakage

Oil leakage may result from:

• Worn shaft seals
• Damaged gaskets
• Hardened O-rings
• Loose cover fasteners
• Cracked sight glass
• Damaged housing
• Overfilling
• Excessive internal pressure

7. Foaming or Aerated Oil

Possible causes include:

• Incorrect oil
• Mixed oil types
• Excessive oil level
• Air leakage
• Contamination
• Excessive vibration
• Oil condition deterioration

8. Unstable Generator Frequency

Check:

• Governor hunting
• Compensation setting
• Droop adjustment
• External load-sharing control
• Speed-setting system
• Fuel linkage
• Generator load variation
• Engine combustion
• Governor oil condition

Common Alarms and Fault Messages

The WOODWARD UG-8L is a mechanical-hydraulic governor and normally has no digital display or numerical fault-code system.

Related alarms are usually generated by the engine or generator monitoring system:

• Engine overspeed
• Engine underspeed
• High generator frequency
• Low generator frequency
• Load-sharing failure
• Low lubricating-oil pressure
• Start failure
• Shutdown activated
• Reverse power
• Generator overload

No numerical alarm code should be assigned directly to the UG-8L unless documented by the connected external control system.

Maintenance Tips

• Check the governor oil level through the sight glass.
• Use oil that meets current Woodward viscosity and compatibility guidance.
• Do not mix different oil classes.
• Replace contaminated, oxidized or aerated oil.
• Inspect the governor for external leakage.
• Check the mounting nuts and drive coupling.
• Inspect the output linkage for looseness or binding.
• Keep the speed-setting shaft clean and protected.
• Record the original compensation setting before adjustment.
• Check for abnormal vibration and output-shaft jiggle.
• Protect the drive and output shafts during handling.
• Never place the governor’s weight on its drive shaft.
• Keep the unit vertical during handling and storage.
• Use suitable preservation procedures for long-term storage.
• Bench-test after overhaul.
• Test the engine under controlled load after installation.
• Verify independent overspeed shutdown operation.

Governor Oil Selection

Woodward advises selecting oil according to operating viscosity, temperature range, seal compatibility and service conditions.

The chosen oil should:

• Maintain suitable viscosity at operating temperature
• Provide good lubrication
• Resist oxidation
• Prevent foaming
• Protect against corrosion
• Remain compatible with governor seals
• Be clean and free from water

Consult Woodward’s current oil guidance rather than selecting oil only by brand name.

Spare Parts & Replacement Availability

SM MARINE SERVICE™ can support sourcing of complete WOODWARD UG-8L governors and related spare parts, depending on availability.

Possible supply items include:

• Complete UG-8L governor
• Exchange governor
• Governor repair kit
• Gasket and seal kit
• Oil sight-glass assembly
• Drive shaft
• Terminal or output shaft
• Ballhead and flyweight assembly
• Speeder spring
• Pilot-valve assembly
• Pilot-valve bushing
• Power piston
• Oil-pump components
• Relief valve
• Compensation needle valve
• Buffer piston and springs
• Accumulator springs
• Bearings and bushes
• Speed-setting mechanism
• Shutdown mechanism
• Pneumatic speed-setting components
• Manifold-pressure fuel limiter
• Control levers and internal linkage
• Mounting gasket
• Internal mechanical parts

Available conditions may include:

• New
• New old stock
• Used
• Refurbished
• Reconditioned
• Overhauled
• Tested working
• Exchange basis

Replacement Matching Requirements

Before ordering a replacement UG-8L, provide:

1. Complete governor model
2. Part number
3. Serial number
4. Governor drive speed
5. Drive rotation
6. Engine manufacturer and model
7. Engine rated speed
8. Generator frequency
9. Drive-shaft dimensions
10. Output-shaft arrangement
11. Fuel-linkage direction
12. Required output travel
13. Auxiliary-device details
14. Clear photographs from every side

Because the photographed plate does not show its Part No., Serial No. or Governor RPM, matching should be based on additional engine records and physical configuration.

Why Ships Still Use the WOODWARD UG-8L

The WOODWARD UG-8L remains valuable because it offers:

• Proven mechanical-hydraulic operation
• Reliable speed regulation
• Strong output force
• Repairable construction
• Worldwide technical familiarity
• Availability of overhaul parts
• No software dependency
• Long service life
• Compatibility with existing engine installations
• Flexible auxiliary-device options

Changing to a different governor may require modifications to the engine drive, fuel linkage, shutdown system, remote speed control and classification documentation. For many vessels, repairing or sourcing the correct UG-8L remains the most practical solution.

Frequently Asked Questions

What is a WOODWARD UG-8L?

The UG-8L is a mechanical-hydraulic lever governor used to regulate the speed and fuel-control linkage of diesel, dual-fuel and other prime movers.

What is the difference between UG-8 and UG-8L?

Both belong to the Woodward UG governor family, but the UG-8L is a lever-type configuration. Control arrangements and auxiliary devices may differ.

What is the maximum output-shaft travel?

Woodward documentation lists a maximum output-shaft travel of 42 degrees, with approximately two-thirds of that travel recommended for normal fuel movement.

What is the UG-8 hydraulic oil pressure?

The official UG lever governor manual lists approximately 120 psi or 827 kPa for the UG-8.

What is the recommended governor drive-speed range?

Woodward documentation lists a recommended range of approximately 375–1500 rpm, with 1500 rpm as the recommended maximum constant operating speed.

Why does a UG-8L governor hunt?

Hunting may result from incorrect compensation, dirty or aerated oil, binding linkage, worn components, pilot-valve problems or unstable engine combustion.

Can I use any lubricating oil?

No. Oil must be selected according to viscosity, temperature, seal compatibility and Woodward’s current hydraulic-control oil guidance.

Does the UG-8L have alarm codes?

No. It is primarily a mechanical-hydraulic device without a digital fault display. Related alarms are produced by the external engine-monitoring system.

Is the pictured governor’s part number visible?

No. The Part No., Serial No. and Governor RPM fields on the photographed panel are blank.

Can I buy a used or reconditioned UG-8L?

Yes. SM MARINE SERVICE™ can support sourcing of used, refurbished, reconditioned, overhauled and tested working UG-8L governors, depending on availability.

Are WOODWARD UG-8L spare parts available?

Repair kits, seals, hydraulic components, shafts, bearings, springs, pilot valves and other parts may be sourced depending on the exact configuration.

Can SM MARINE SERVICE™ supply WOODWARD governors worldwide?

Yes. Worldwide sourcing and shipping support is available for shipowners, ship managers, marine engineers, shipyards, power plants and spare-parts buyers.

Short Product Description

The WOODWARD UG-8L is a mechanical-hydraulic lever governor designed to control marine diesel engines, dual-fuel engines, generator engines and other prime movers. It provides hydraulic output to regulate the fuel-control linkage and maintain stable engine speed during load changes. SM MARINE SERVICE™ can support the worldwide supply of used, refurbished, reconditioned, overhauled and tested UG-8L governors and spare parts.

User Manual & Technical Resources

???? WOODWARD UG-5.7, UG-8 and UG-10 Installation Manual – 54042

Download Official Woodward Manual 54042

This official manual covers installation precautions and requirements for UG-5.7, UG-8 and UG-10 governors.

???? WOODWARD UG-8L Manifold-Pressure Fuel Limiter Manual – 03507

Download Official Woodward Manual 03507

This manual covers the optional manifold-pressure fuel-limiter system used with UG-8L governors.

???? WOODWARD Hydraulic Governor Oil Guidance – 25071

View Official Woodward Governor Oil Guidance

???? WOODWARD UG Lever Governor Manual – 03036

The UG-5.7, UG-8 and UG-10 Lever Governor Manual 03036 covers operation, adjustment, troubleshooting, replacement parts and auxiliary equipment.

View Manual 03036 Technical Reference

For overhaul, installation or adjustment, always use the correct manual revision and confirm the individual governor configuration.

---

SM MARINE SERVICE™
Marine Automation & Navigation Equipment Supplier

Available Condition:
• New Equipment • Used Equipment • Refurbished Equipment • Reconditioned Equipment

Stock Location:
• Bangladesh • China

Services:
• Worldwide Shipping • Technical Support • Spare Parts Supply • Marine Equipment Sourcing

Contact Information
SM MARINE SERVICE™ Samir Market, DT Road, Pahartali, beside CDA Market, Chattogram, Bangladesh
Mobile / WhatsApp / Viber: +88 01818 929292
Email: info@smmarineservice.com
Website: www.smmarineservice.com

-

+

Buy Now
