15ppm Bilge Alarm
DECKMA, Rivertrace, JOWA, FOCAS, BilgMon
New product
A 15 PPM Bilge Alarm, also known as an Oil Content Monitor (OCM) or bilge-water oil monitor, is a key pollution-prevention instrument installed in connection with a ship's Oily Water Separator (OWS).
Its purpose is to continuously measure the oil content of treated bilge water before discharge overboard. Modern type-approved systems are designed around the 15 ppm discharge-control requirement associated with MARPOL Annex I and IMO Resolution MEPC.107(49). Rivertrace describes its current SMART BILGE as a 15 ppm oil-content monitor for bilge-water discharge, while JOWA states that SeaGuard monitors separator effluent and is approved to MEPC.107(49).
SM MARINE SERVICE™ supports complete 15 ppm bilge alarms, Oil Content Monitors, calibrated measuring cells, controllers, sensors, PCBs, valves and replacement components from multiple manufacturers.

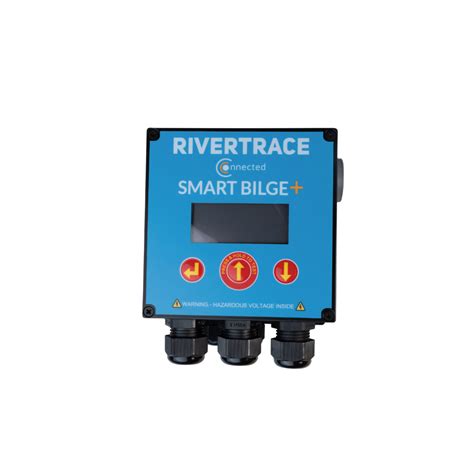

Rivertrace Engineering's SMART BILGE family continuously monitors bilge-water oil concentration. Rivertrace states that the system is designed for OWS discharge monitoring under the 15 ppm requirement and uses SMART CELL detector technology.
Important replacement requirements can include the control unit, calibrated measuring cell, SmartCell wiper, manual-clean assembly, controller PCB components and related sampling hardware. Rivertrace's current support documentation identifies calibrated measuring cell part 109171, SmartCell wiper 109039, manual-clean assembly 109857, and controller PCB main fuse 109167.
Rivertrace Engineering Smart Cell 15ppm Bilge Alarm / SmartCell
Your SM MARINE SERVICE™ page identifies the product as a Rivertrace 15ppm Bilge Alarm and Oil Content Monitoring System for OWS monitoring.
The JOWA SeaGuard is a marine 15 ppm Bilge Alarm / Oil Content Meter designed to monitor the effluent from an oily-water separator.
JOWA states that the system has two alarm outputs, an automatic cleaning/flush function, and an oil-content measurement range covering normal bilge-water monitoring requirements.
JOWA SeaGuard 15ppm Bilge Alarm
The SM MARINE SERVICE™ page identifies the supplied unit as JOWA AB SeaGuard 15PPM Bilge Alarm.
The DECKMA OMD-24 belongs to the well-known DECKMA marine Oil Content Monitor / bilge alarm family.
DECKMA Hamburg specializes in 15 ppm Bilge Alarm Monitors and related marine oil-monitoring equipment.
Older OMD-24 installations remain important in the marine spare-parts market because vessels may need:
• Complete monitor
• Measuring cell
• Control electronics
• Sampling components
• PCB assemblies
• Solenoid valves
• Cables and connectors
DECKMA OMD-24 Oil Content Meter
The Fellow Kogyo FOCAS-2000 is a 15 ppm Bilge Alarm / Oil Concentration Detector designed for continuous monitoring of oil concentration in treated bilge water.
Fellow Kogyo's official product information states that the FOCAS-2000 uses automatic operation linked to sample-water pressure, includes automatic washing of the detection unit, and provides fault/error and detector-stain indication to assist maintenance.
FELLOW KOGYO FOCAS-2000 15 ppm Bilge Alarm
The DECKMA OMD-2005 is a bilge-water Oil Content Monitor used for monitoring OWS discharge.
For SEO and technical accuracy, this product should be described as a 15 ppm Bilge Alarm / Oil Content Monitor, not as an engine-crankcase Oil Mist Detector.
Typical legacy requirements include:
• Complete OMD-2005 unit
• Measuring cell
• Monitor/controller
• Sampling equipment
• Valves
• Electronic components
• PCBs
• Cables and connectors
DECKMA OMD-2005 Oil Content Monitor & Bilge Alarm
The Rivertrace OCD CM is a legacy 15 ppm bilge-alarm unit specifically designed for use with oily-water separators.
Rivertrace's official technical support information states that OCD CM was developed for 15 ppm oily-water separator installations and meets IMO bilge-alarm specifications associated with Resolution MEPC.60(33).
Rivertrace OCD CM Oil Content Monitor & 15ppm Bilge Alarm

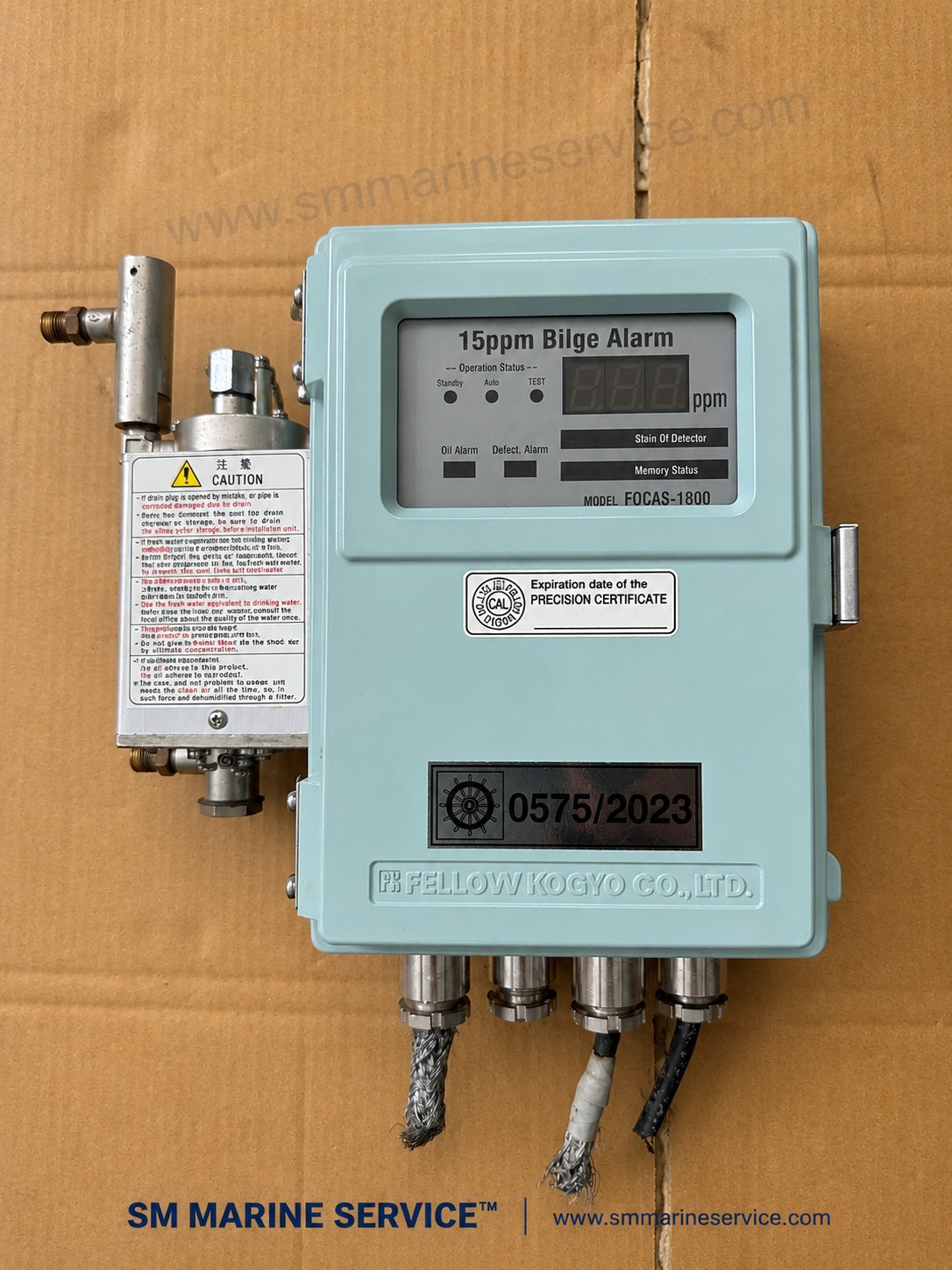

The FOCAS-1800 is another Fellow Kogyo 15 ppm bilge alarm used to continuously measure oil concentration in shipboard wastewater.
Fellow Kogyo's official product page states that it continuously measures and checks the oil content of drainage and was developed for MEPC.107(49)-related applications.
Fellow Kogyo FOCAS-1800 15ppm Bilge Alarm
The FOCAS-1500C is part of the older Fellow Kogyo Oil Content Monitor / bilge-alarm family.
For vessels maintaining older OWS installations, sourcing compatible replacement equipment can avoid unnecessary replacement of the complete separator and discharge-control arrangement.
FOCAS-1500C 15 PPM Bilge Alarm

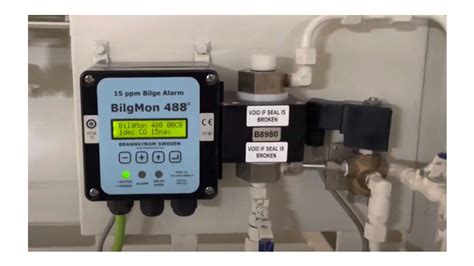

The Brännström BilgMon 488 is a compact 15 ppm Bilge Alarm designed for marine OWS discharge monitoring.
Brännström states that the BilgMon 488 is type-approved to meet IMO Resolution MEPC.107(49), and its compact size makes it suitable for retrofit installations. A particularly useful feature is its detachable measuring cell, which can be replaced with a calibrated cell when required.
Brännström BilgMon 488 15 ppm Bilge Alarm Monitor

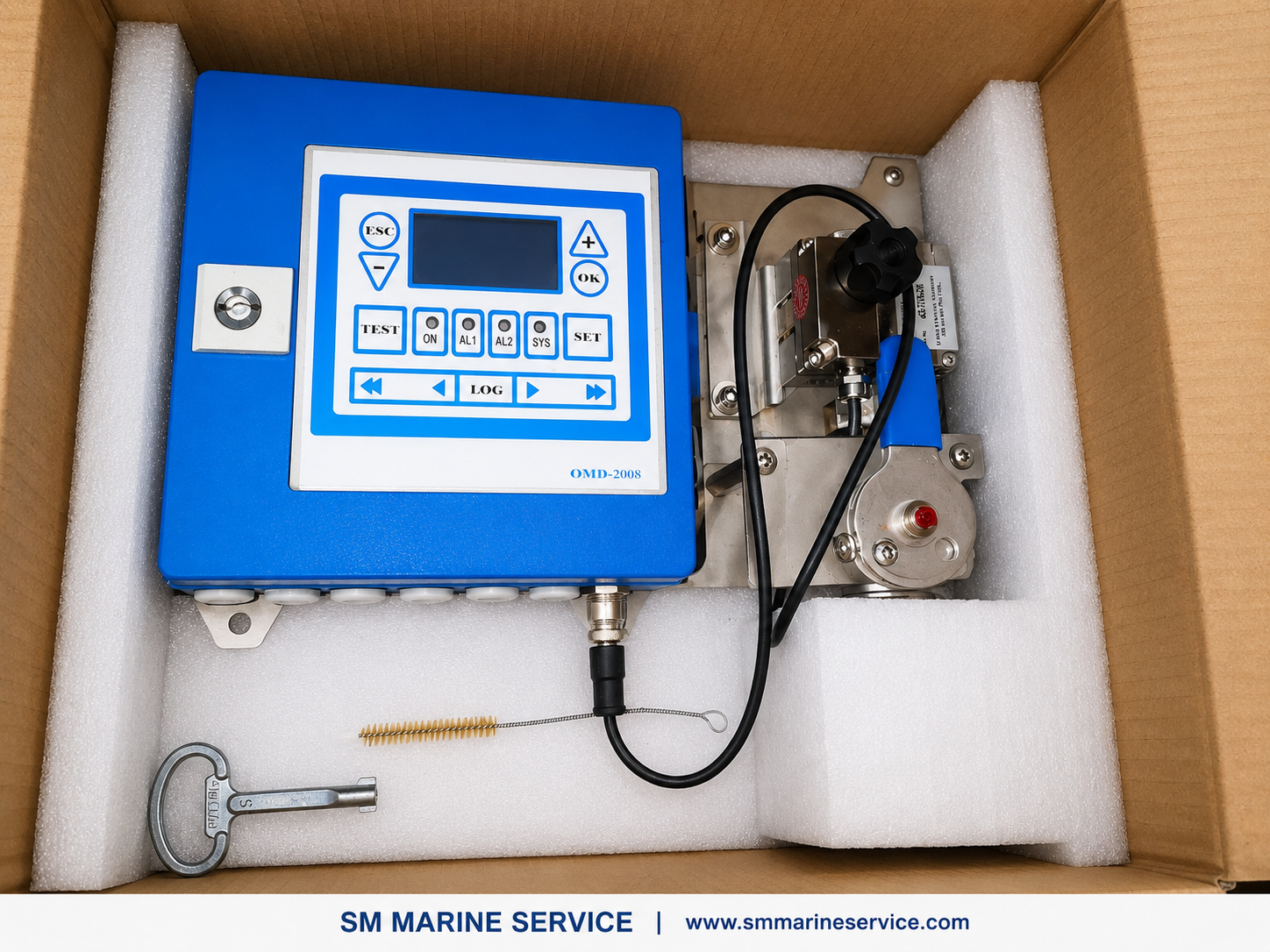

The DECKMA OMD-2008 is a modern DECKMA Oil Content Monitor / Bilge Alarm system.
The system is intended to monitor oil content in treated bilge-water discharge. Common configurations include OMD-2008, OMD-2008 EV, EVA and EVFC, depending on valve, cleaning and flow-control arrangements.
DECKMA OMD-2008 Oil Content Monitor / 15ppm Bilge Alarm
The operating principle is straightforward:
JOWA describes this same basic arrangement: the bilge alarm monitors separator effluent and the discharge is stopped when oil content exceeds the permitted limit.
The 15 ppm threshold is associated with machinery-space bilge-water pollution-control requirements under MARPOL Annex I.
Rivertrace explains that 15 ppm means 15 parts of oil per million parts of solution by mass, and that the OCM is used to verify treated bilge water before discharge.
This means the Bilge Alarm is not simply a convenience instrument—it is an important part of a vessel's pollution-prevention and discharge-control arrangement.
Depending on model, a system may include:
• Main Control Unit
• Oil Content Monitor / Controller
• Measuring Cell
• Optical Detector / Sensor
• Sample Chamber
• Sample Flow Assembly
• Solenoid Valve
• Three-Way Valve
• Auto-Flush Arrangement
• Flow Switch
• Cleaning Brush / Wiper
• Filters
• Relay Outputs
• Data Logger
• Power Supply
• PCB / Electronic Boards
• Cables & Connectors
Different manufacturers use different cell and sampling technologies, so compatibility must always be verified by exact model and part number.
The measuring cell is one of the most commonly requested 15 ppm Bilge Alarm spare parts.
Typical reasons for replacement include:
• Contaminated optics
• Calibration failure
• Damaged sensor electronics
• Age-related deterioration
• Incorrect or unstable PPM reading
• Repeated detector fault
• Regulatory calibration requirements
Rivertrace provides a replaceable calibrated SmartBilge measuring cell, while Brännström specifically promotes the BilgMon 488's detachable measuring cell for easy calibration-by-replacement.
First verify whether the Oily Water Separator is actually producing compliant water.
Possible causes include:
• Separator malfunction
• Excessive oil contamination
• Dirty or contaminated measuring cell
• Air bubbles in sample water
• Incorrect sample flow
• Sensor/calibration problems
Never assume a high PPM alarm is false without checking the actual discharge condition.
Inspect:
• Sample quality
• Measuring cell cleanliness
• Alarm setpoint
• OWS performance
• Cell calibration
• Sample-line contamination
Possible causes include:
• Blocked sample pipe
• Closed valve
• Failed sample pump
• Clogged filter
• Flow-switch fault
• Solenoid-valve problem
Check:
• Incoming power
• Fuse
• Power supply
• PCB
• Terminal connections
• Display/control unit
Typical causes include:
• Dirty optical cell
• Air bubbles
• Contaminated sample chamber
• Incorrect flow rate
• Calibration drift
• Electronic sensor fault
Inspect:
• Fresh-water connection
• Solenoid valve
• Cleaning sequence
• Valve coil
• Flow condition
• Controller output
JOWA, for example, specifically includes automatic flushing to keep the sensing section clean.
Bilge Alarm accuracy is critical because discharge decisions rely on the measured PPM value.
Depending on manufacturer and regulatory/service requirements, calibration may involve:
• Onboard verification
• Certified calibration
• Factory-calibrated measuring-cell exchange
• Calibration certificate replacement
• Zero/check procedure
• Functional alarm test
Rivertrace SMART BILGE stores calibration-related information and IMO-required operational data, while Brännström's BilgMon 488 supports replacement of the detachable measuring cell with a calibrated unit.
SM MARINE SERVICE™ can support sourcing of 15 PPM Bilge Alarm and Oil Content Monitor equipment from:
DECKMA Hamburg
Rivertrace Engineering
JOWA AB
Fellow Kogyo
Brännström Sweden
Typical requirements include:
• Complete Bilge Alarm
• Complete Oil Content Monitor
• Measuring Cell
• SmartCell
• Detector Cell
• Control Unit
• Display Unit
• Controller PCB
• Power Board
• Optical Sensor
• Sample Chamber
• Solenoid Valve
• Three-Way Valve
• Flow Switch
• Cleaning Brush
• Wiper
• Filter
• Calibration Components
• Power Supply
• Cables & Connectors
• Internal Electronic Parts
Equipment can be sourced in:
New • Used • Tested Working • Refurbished • Reconditioned
subject to stock and compatibility.
Rivertrace Smart Cell / SMART BILGE
https://www.smmarineservice.com/product-view/191/10
JOWA SeaGuard 15ppm Bilge Alarm
https://www.smmarineservice.com/product-view/210/10
DECKMA OMD-24 Oil Content Meter
https://www.smmarineservice.com/product-view/241/10
Fellow Kogyo FOCAS-2000
https://www.smmarineservice.com/product-view/292/10
DECKMA OMD-2005
https://www.smmarineservice.com/product-view/311/10
Rivertrace OCD CM
https://www.smmarineservice.com/product-view/615/10
Fellow Kogyo FOCAS-1800
https://www.smmarineservice.com/product-view/612/10
Fellow Kogyo FOCAS-1500C
https://www.smmarineservice.com/product-view/842/10
Brännström BilgMon 488
https://www.smmarineservice.com/product-view/899/10
DECKMA OMD-2008
https://www.smmarineservice.com/product-view/935/10
These systems are widely used aboard:
• Container Ships
• Bulk Carriers
• Oil Tankers
• Chemical Tankers
• LNG/LPG Carriers
• Cargo Ships
• Offshore Vessels
• Passenger Ships
• Workboats
• Merchant Vessels
They form part of the ship's:
Oily Water Separator System • Bilge Water Treatment System • Pollution Prevention System • Overboard Discharge Monitoring Arrangement
A reliable Bilge Alarm helps:
• Detect non-compliant oily-water discharge
• Initiate alarms before overboard discharge continues
• Support automatic discharge shutoff
• Provide monitoring data
• Support inspection and compliance requirements
• Protect the marine environment
• Verify OWS performance
Rivertrace notes that modern monitoring arrangements can also record operational and alarm information required for compliance records.
A 15 PPM Bilge Alarm is an Oil Content Monitor that measures oil concentration in treated machinery-space bilge water before overboard discharge.
In this application, the terms are commonly used together. The Oil Content Monitor performs the measurement, while the system provides alarm and discharge-control functions.
No. In this context, OMD-2008 is an Oil Content Monitor / 15 ppm Bilge Alarm, not a crankcase Oil Mist Detector.
SM MARINE SERVICE™ can support DECKMA, Rivertrace, JOWA, Fellow Kogyo and Brännström equipment, subject to availability.
View Rivertrace Smart Cell 15ppm Bilge Alarm
View JOWA SeaGuard 15ppm Bilge Alarm
View FOCAS-2000 15ppm Bilge Alarm
View FOCAS-1800 15ppm Bilge Alarm
Measuring-cell and sensor requirements can be sourced subject to manufacturer, model, part number and availability.
Yes. Used, tested, refurbished and reconditioned equipment can be sourced depending on stock.
Yes. SM MARINE SERVICE™ can arrange worldwide marine-equipment supply according to stock and destination.
Rivertrace provides current product information, operating principles, compliance guidance and SMART CELL technology details.
The manufacturer datasheet identifies the SMART BILGE as a 15ppm Oil Content Monitor developed for MEPC.107(49)-related bilge-water discharge monitoring.
JOWA provides official product information covering alarm outputs, OWS effluent monitoring and automatic flush functionality.
Fellow Kogyo provides official product information for FOCAS-1800 as a continuously operating 15 ppm bilge alarm.
Official manufacturer information covers automatic operation, detector washing and maintenance/status functions.
Brännström provides technical documentation for the BilgMon 488, including MEPC.107(49) type approval and detachable measuring-cell concept.
Marine 15 PPM Bilge Alarm and Oil Content Monitor systems continuously monitor treated bilge-water discharge from shipboard Oily Water Separators. SM MARINE SERVICE™ supports DECKMA OMD-24, OMD-2005 and OMD-2008, Rivertrace SmartCell and OCD CM, JOWA SeaGuard, Fellow Kogyo FOCAS-1500C/1800/2000, Brännström BilgMon 488 and related measuring cells, sensors, controllers and spare parts for worldwide marine customers.
