Temperature Dryblock Calibrator
SIKA
Refurbished

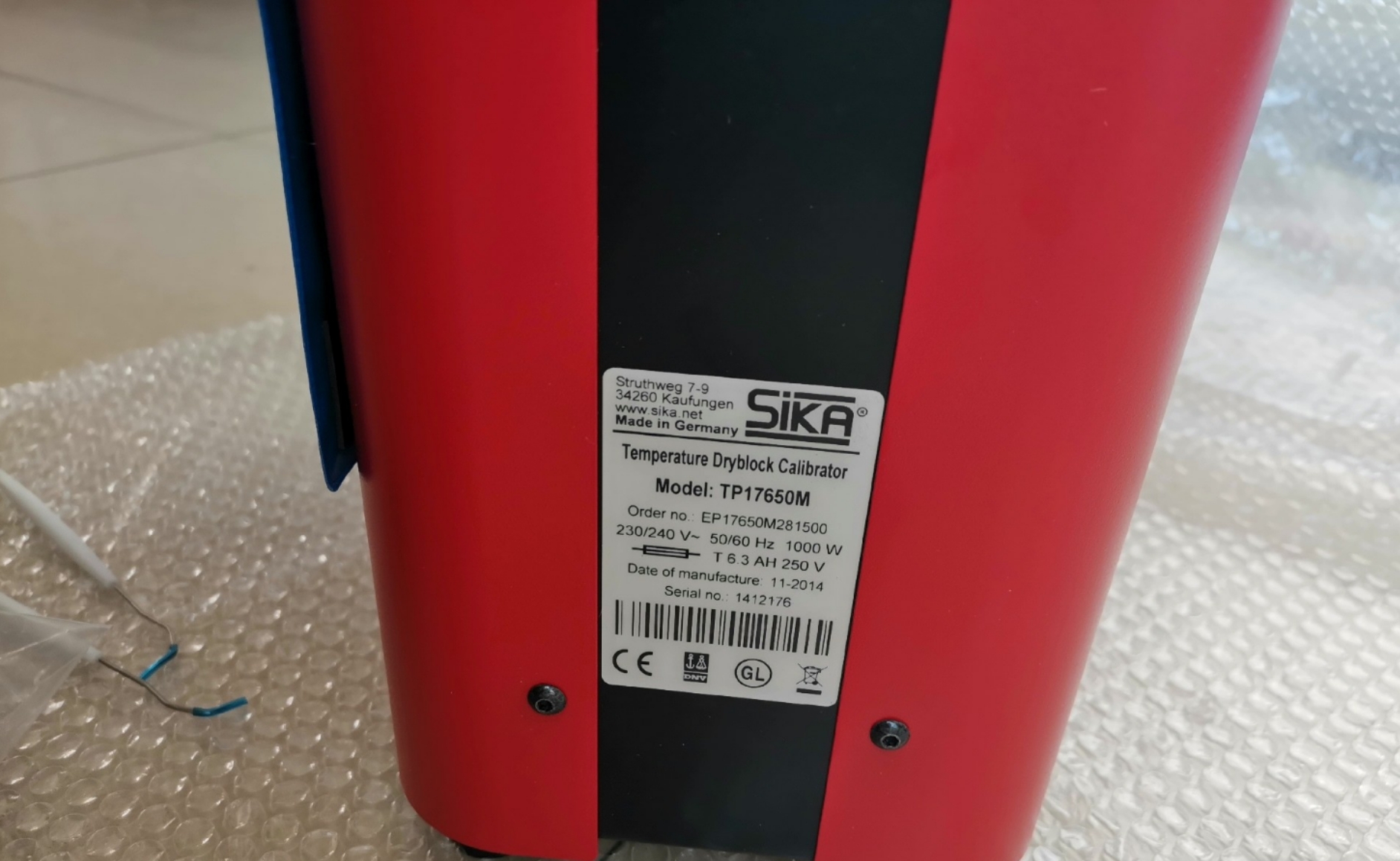

From the nameplate visible in your photos, the product is identified as:
The nameplate clearly reads “Temperature Dryblock Calibrator – Model TP17650M”. SIKA’s product literature confirms that the TP17650 series is a dry block temperature calibrator designed for field and workshop calibration of temperature sensors, and the M / Marine version is intended for marine applications. It offers a temperature range up to 650°C, with a dry block insert designed for fast and practical sensor calibration.
The SIKA TP17650M Temperature Dryblock Calibrator is a portable calibration instrument used to verify and calibrate temperature sensors onboard ships and in marine workshops. In marine automation, temperature sensors are installed everywhere: main engine jacket cooling systems, exhaust gas monitoring, lube oil systems, fuel oil heaters, boilers, separators, cargo heating systems, and auxiliary machinery. If these sensors drift or give incorrect readings, alarms, shutdowns, fuel heating control, and machinery protection logic can all become unreliable.
That is why a dry block calibrator like the TP17650M is important. Instead of removing a sensor and sending it to a laboratory every time, engineers can use this portable unit to compare the sensor reading against a stable reference temperature source. The calibrator heats the metal block to a selected setpoint, and the temperature probe under test is inserted into the block through a suitable insert. Once the block stabilizes, the engineer can compare the sensor output, transmitter reading, or switch actuation point against the calibrator temperature.
According to SIKA documentation, the TP17650 / TP Basic series was developed for portable field use and offers dry block calibration, simple operation, and an integrated internal reference temperature sensor. The TP17650M version is part of SIKA’s marine-oriented calibrator range, making it highly suitable for shipboard temperature maintenance work.
The TP17650M is essentially a portable heated calibration block with digital control. The top opening contains the metal calibration well where sleeves or inserts are fitted for different sensor diameters. The display and keypad allow the user to set the target temperature and monitor stabilization. SIKA’s technical information for the TP17650 series shows a temperature range from room temperature up to 650°C, making it suitable for a wide range of marine sensor checks, from low-temperature cooling circuits to higher-temperature exhaust or heater-related applications.
Typical marine uses include:
| Item | Details |
|---|---|
| Manufacturer | SIKA |
| Model | TP17650M |
| Product Type | Temperature Dryblock Calibrator |
| Country of Origin | Germany |
| Calibration Function | Dry block temperature calibration |
| Temperature Range | Room temperature to 650°C |
| Power Supply | 230/240 V, 50/60 Hz |
| Power Consumption | 1000 W |
| Typical Use | RTD, thermocouple, temperature switch, and transmitter calibration |
The SIKA TP17650M is suitable for calibration and checking of:
This makes it useful on container ships, bulk carriers, tankers, offshore vessels, passenger ships, and workshop calibration benches.
For marine operators, calibration equipment is as important as the field sensor itself. If the dry block calibrator is unavailable or faulty, maintenance quality suffers. SM MARINE SERVICE™ can support customers with:
SM MARINE SERVICE™
Bangladesh Office
Samir Market, DT Road, Pahartali, Beside CDA Market, Chattogram, Bangladesh
China Warehouse and Support Center
Shanghai, China
SM MARINE SERVICE™ supplies both New Equipment and Reconditioned Equipment depending on customer requirements and budget.
We provide worldwide supply, sourcing, repair, calibration, technical support and spare parts services for marine automation, navigation, communication and marine electronic systems.
Website : https://www.smmarineservice.com
Email : info@smmarineservice.com
WhatsApp and Viber : +8801818929292
Marketing Contact: Nazmul Hasan Bhuiyan
Mobile WhatsApp and Viber : +8801730296909
The SIKA TP17650M Temperature Dryblock Calibrator is a practical marine calibration instrument for checking and calibrating temperature sensors used throughout the engine room and automation system. With its portable dry block design, marine-friendly operation, and high-temperature capability, it is a valuable tool for shipboard maintenance teams, calibration technicians, and marine workshops. For SIKA TP17650M supply, calibration support, replacement equipment, and marine automation spare services, SM MARINE SERVICE™ can support your vessel worldwide.
