MacGregor Hägglunds MDC 214 1080-801 & SL 214 1232-802 Marine Hydraulic Control Modules

Manufacturer: MacGregor Hägglunds
Country of Origin: Sweden / Hägglunds control system range
Product Type: Hydraulic Control / PCB Rack Modules
Marine Application: Hydraulic crane, winch, hatch cover, and deck machinery control systems using Hägglunds hydraulic motor and pump control architecture

---

Product Introduction

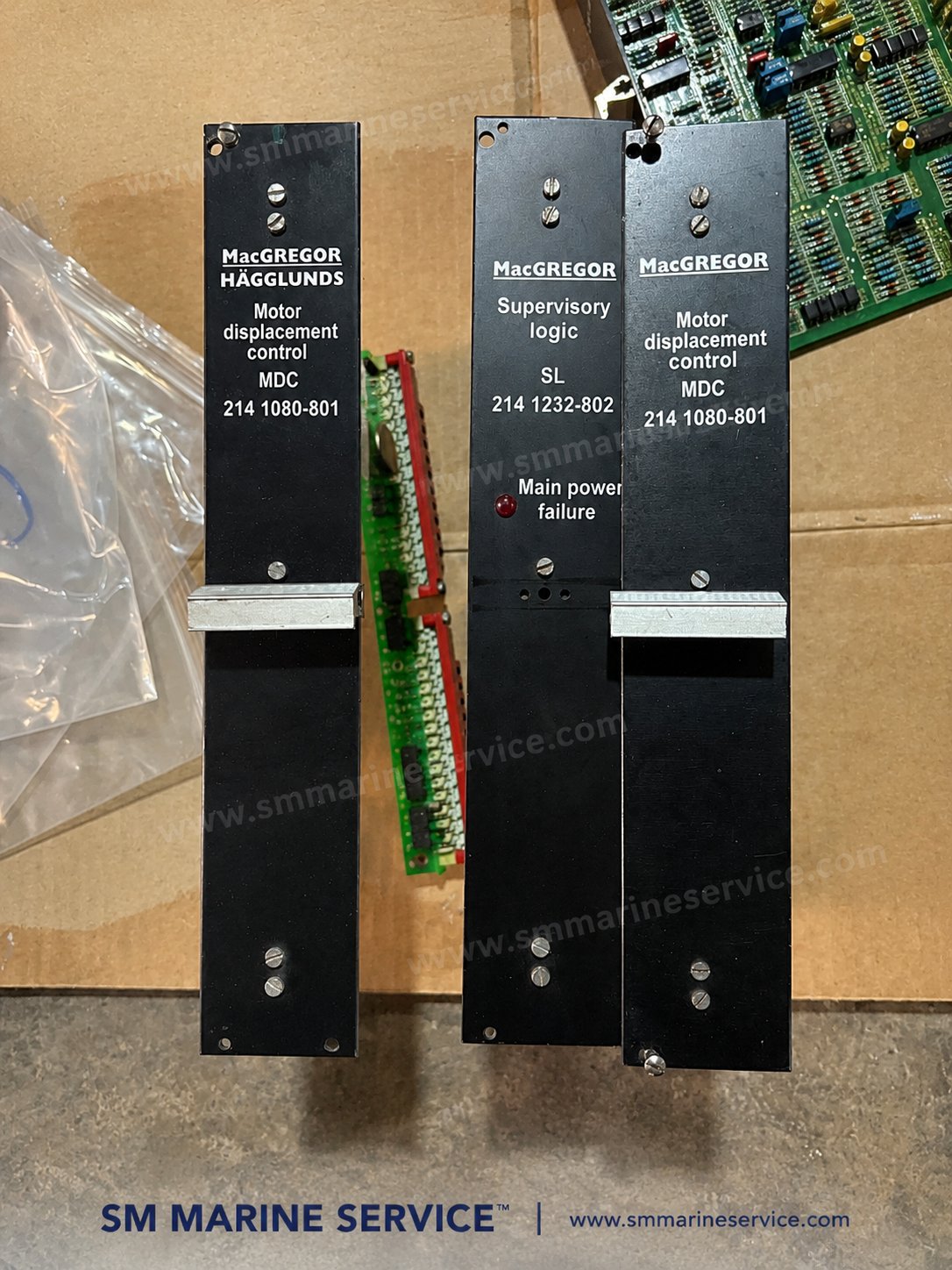

The units shown in your photo are MacGregor Hägglunds control modules from a marine hydraulic control rack. The front labels clearly identify two important modules:

• MDC 214 1080-801 — Motor Displacement Control
• SL 214 1232-802 — Supervisory Logic

These modules are commonly installed in MacGregor Hägglunds hydraulic control systems used on ships for deck cranes, winches, hatch covers, and other heavy hydraulic machinery. In this type of system, the MDC module helps manage hydraulic motor displacement / control behavior, while the SL module provides supervisory logic and system-level monitoring or fault handling. Multiple suppliers list these cards together with other rack modules such as Pump Control (PC) cards, confirming they belong to a larger Hägglunds hydraulic control rack arrangement.

What Is This Equipment?

This is not a standalone display or sensor. It is a control card / module set used inside a MacGregor Hägglunds hydraulic control cabinet. These modules work together to control and supervise hydraulic functions such as:

• hydraulic motor displacement control
• supervisory logic and interlocks
• deck crane or winch control sequencing
• hydraulic drive response and safety monitoring

The MDC 214 1080-801 is specifically identified by sellers and marine spare-parts references as Motor Displacement Control, while SL 214 1232-802 is identified as Supervisory Logic.

---

Main Features

1) Modular hydraulic control architecture

These cards are designed to work in a rack-based Hägglunds control system rather than as single standalone devices.

2) Dedicated motor displacement control

The MDC module is used for hydraulic motor control logic related to displacement / drive response.

3) Supervisory logic and fault handling

The SL module manages logic supervision and often includes status / power-failure indication on the front panel.

4) Suitable for heavy-duty marine hydraulic equipment

These modules are typically associated with deck machinery, cargo handling, and hydraulic drive systems where MacGregor Hägglunds equipment is installed.

---

Main Components

A typical MacGregor Hägglunds control rack using these modules may include:

• MDC – Motor Displacement Control
• SL – Supervisory Logic
• PC – Pump Control
• rack backplane / motherboard
• terminal connections and internal PCB assemblies
• power supply and signal interface sections

In practical shipboard service, the rack works as part of the hydraulic control system that governs machine response, safety logic, and operator command processing.

Applications

These MacGregor Hägglunds modules are commonly associated with:

• deck cranes
• cargo cranes
• hydraulic winches
• hatch cover hydraulic systems
• heavy-duty marine hydraulic drive systems
• specialized MacGregor / Hägglunds cargo-handling machinery

---

Common Problems & Troubleshooting

1) Main power failure indication

If the SL module shows main power failure, check the rack power supply, fuse protection, backplane voltage, and wiring to the control cabinet.

2) Hydraulic motor not responding correctly

Possible causes include a faulty MDC card, signal loss from associated control circuitry, wiring issues, or hydraulic-side faults such as valve or actuator problems.

3) Intermittent operation or unstable control

Inspect module seating, PCB connector oxidation, cabinet vibration damage, and aging electronic components.

4) No communication / no control output from rack

Check rack power, module compatibility, backplane condition, and whether associated Pump Control / Supervisory / I/O cards are healthy.

---

Maintenance Tips

To keep these MacGregor Hägglunds modules reliable:

• keep the control cabinet clean, dry, and vibration-protected
• inspect module connectors and backplane contacts
• check cabinet cooling and signs of overheated components
• confirm correct supply voltage and grounding
• keep a record of module part numbers before replacement
• when ordering, match exactly:
  • MDC 214 1080-801
  • SL 214 1232-802
  • rack type / associated PC modules if fitted

---

Why Ships Still Use This Equipment

Many vessels still operate older MacGregor Hägglunds hydraulic systems because they remain robust and mechanically reliable. Instead of replacing the entire crane or hatch-cover control system, shipowners often replace only failed control cards and hydraulic logic modules, making spare modules like MDC and SL highly important.

---

Frequently Asked Questions (FAQ)

What is MDC 214 1080-801?
It is a MacGregor Hägglunds Motor Displacement Control module used in hydraulic control racks.

What is SL 214 1232-802?
It is a Supervisory Logic module used for system logic and monitoring within the same control architecture.

Where are these modules used onboard?
Typically in hydraulic deck cranes, winches, hatch covers, and other MacGregor Hägglunds hydraulic machinery systems.

Can a faulty module stop crane or hydraulic operation?
Yes. Failure of a control or supervisory module can lead to loss of hydraulic response, alarms, or interlock problems.

---

Short Product Description

The MacGregor Hägglunds MDC 214 1080-801 and SL 214 1232-802 are marine hydraulic control modules used in Hägglunds rack-based control systems for deck cranes, hatch covers, winches, and cargo-handling machinery. These modules play an important role in motor displacement control, supervisory logic, and safe hydraulic system operation, making them valuable spare parts for ships still operating legacy MacGregor hydraulic equipment.

---
