FIRE ALARM SYSTEM
Consilium Marine & Safety AB
Refurbished
The product shown in your photos is the Consilium REPEATER M 4.3 MARINE OEM, Product No. 5100096-20A. It is a marine fire alarm repeater display unit designed for remote monitoring and indication of fire alarm system status onboard ships. This type of repeater is used as an additional display and control point for the vessel’s fire detection and alarm system, allowing crew to view alarms, faults, disabled loops, and system conditions away from the main fire alarm control panel.
From the product label and display image, this unit can be identified as:
This is a marine safety system component, not a general consumer display. It is designed for shipboard fire alarm and alarm monitoring systems, where crew need a secondary panel to monitor alarm events, acknowledge conditions, and quickly understand the status of the fire detection system from another location such as the bridge, engine control room, accommodation area, cargo control room, or safety station.
SM MARINE SERVICE™ supports shipowners, technical managers, shipyards, marine workshops, and safety-system buyers looking for Consilium repeater panels, fire alarm display units, marine fire alarm spare parts, replacement modules, and repair support.

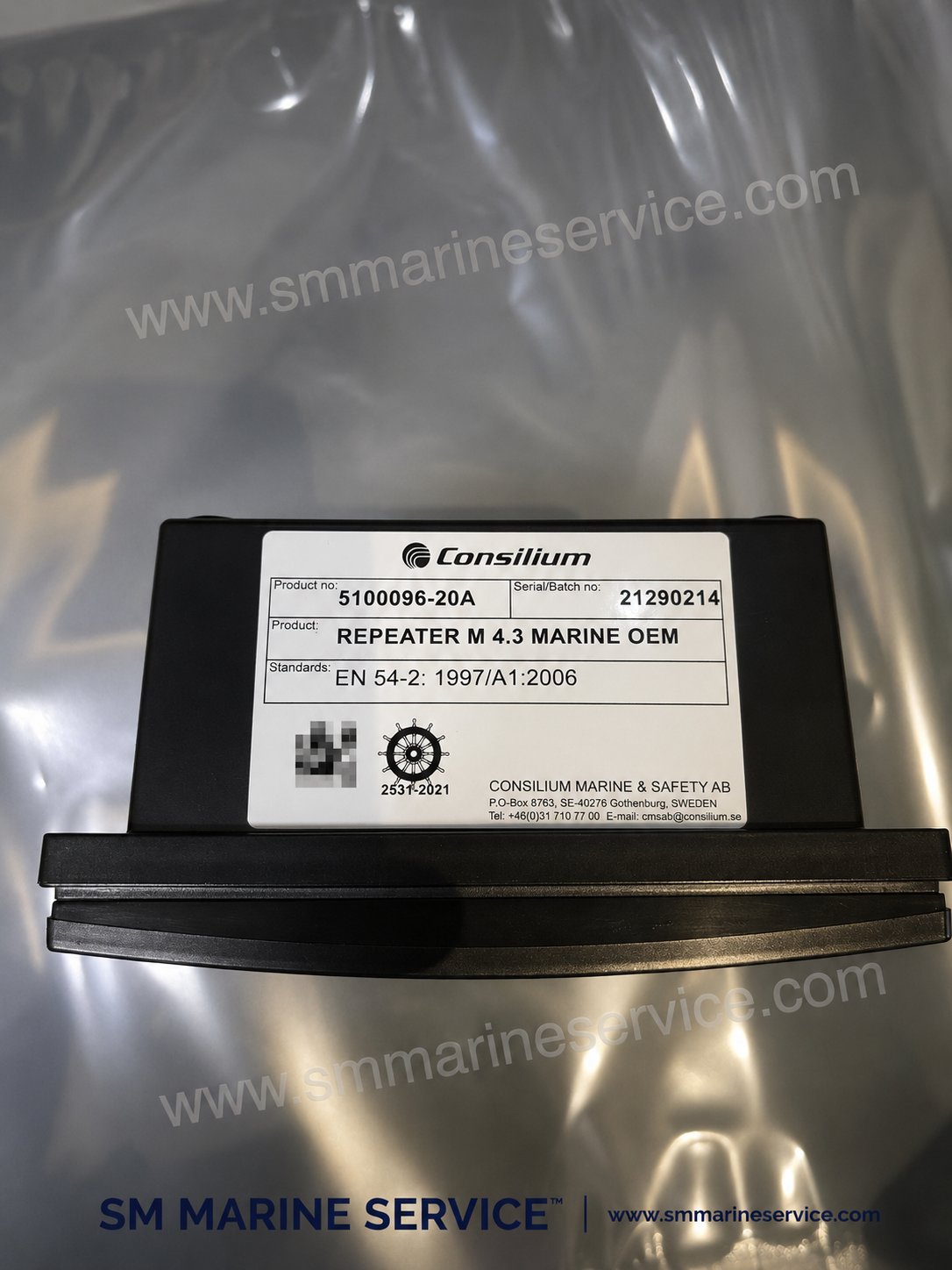

Your first photo clearly shows the product label with the following details:
This image is important for correct spare-part identification, quotation, and model verification.

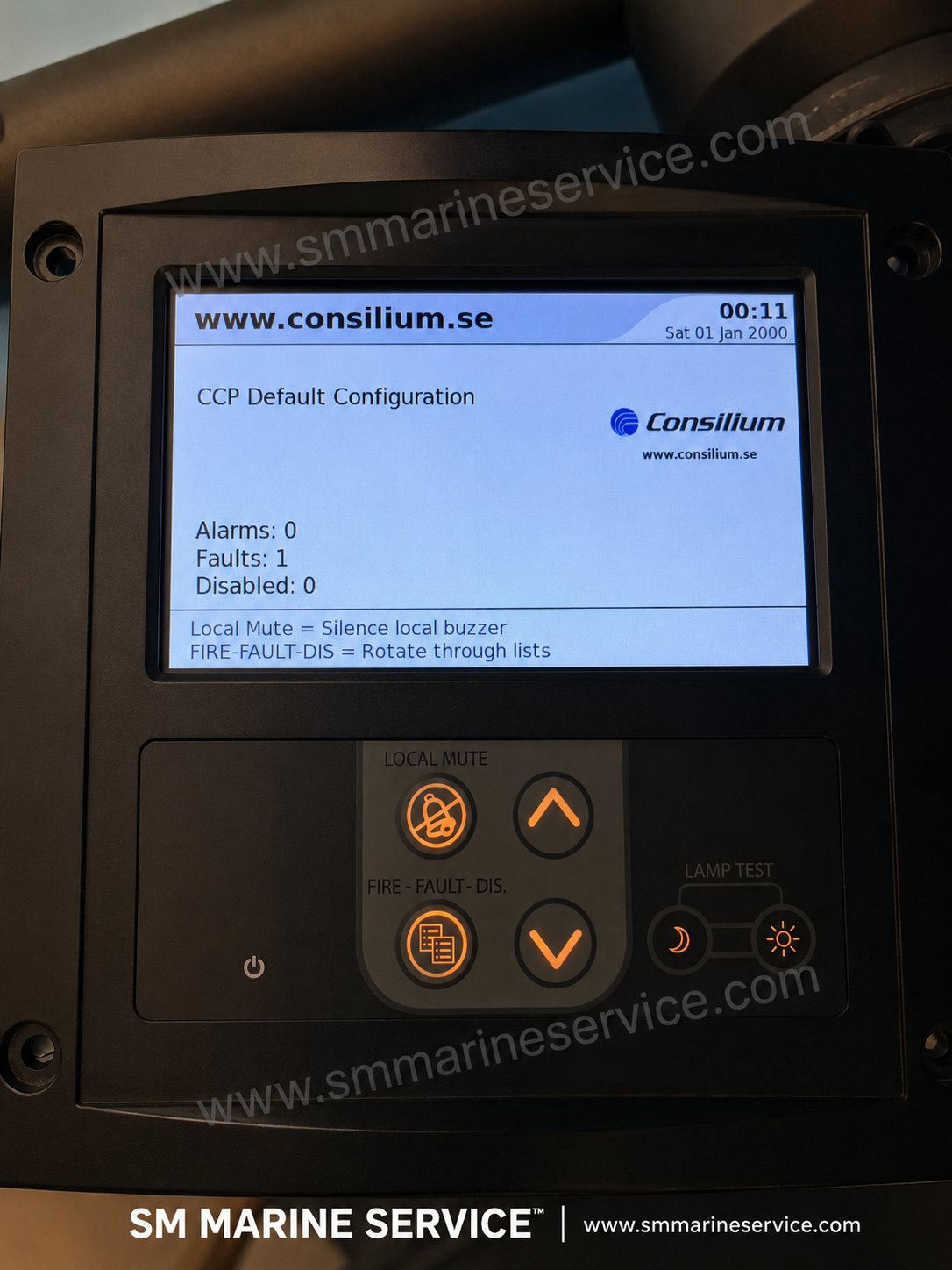

Your second image shows the front side of the repeater panel with its active display and membrane control keys. The screen shows:
The display also shows local operating functions such as:
This confirms that the unit is being used as an interactive remote repeater display for a marine fire alarm system, allowing the operator to view system status and navigate alarm/fault lists.
The Consilium REPEATER M 4.3 MARINE OEM is a remote repeater display unit used as part of a marine fire detection and alarm system. Its purpose is to repeat the information from the main fire alarm control panel at another location onboard the vessel.
In practical shipboard operation, this means the repeater can show:
Instead of going to the main fire alarm panel every time, the crew can check the repeater panel installed in another strategic location. This improves response speed, situational awareness, and operational convenience, especially on larger vessels where the main fire panel may be far from the bridge or machinery control area.
The “4.3” in the product name indicates that this unit uses a 4.3-inch display interface, giving a more modern screen-based presentation compared with older basic text repeater units.
A repeater panel like the Consilium REPEATER M 4.3 MARINE OEM is not the main control panel itself. Instead, it acts as a secondary monitoring and indication station for the ship’s fire alarm system.
Its main purposes are:
The repeater allows alarms and system events to be seen at locations away from the main fire alarm control panel.
If a fire alarm, detector fault, or disabled loop occurs, crew on the bridge or in the engine control room can see it quickly without needing to travel to the main panel first.
On larger ships, multiple repeater displays can help ensure that critical safety information is available in the right places.
The operator can use the panel to move through alarm/fault lists and review system conditions.
A repeater helps officers, engineers, and safety crew keep track of the fire detection system during navigation, engine room operations, cargo handling, or accommodation supervision.
This unit uses a 4.3-inch display that gives a clear view of:
The repeater is designed to mirror or repeat important system information from the main Consilium fire alarm control system.
The front panel clearly shows a LOCAL MUTE function, which is used to silence the local buzzer at the repeater panel when necessary.
The screen text indicates that FIRE-FAULT-DIS can be used to rotate through lists. This is useful for reviewing different types of events and statuses from the fire alarm system.
The panel includes a lamp test function, which helps verify local indication and panel display functionality.
The repeater is designed for flush / panel mounting in shipboard control locations, providing a neat and professional installation.
As a Consilium marine product, this repeater is intended for integration into marine fire alarm and ship safety systems, not standard building fire alarm systems.
Depending on the vessel design, a repeater panel like this may be installed on:
From the images you provided, the following details can be safely identified:
REPEATER M 4.3 MARINE OEM
5100096-20A
Consilium
21290214
EN 54-2: 1997 / A1:2006
The Consilium repeater panel is typically used wherever a vessel requires remote fire alarm indication and safety system monitoring. Common applications include:
So that navigational officers can immediately see fire alarm or fault conditions without leaving the bridge.
So that engineers can monitor fire alarm system status while operating machinery and engine room systems.
Useful in areas where emergency response crew need quick access to fire system status.
On certain vessel types, a repeater may be installed in the cargo control room to keep cargo officers informed of fire alarm events.
Marine repeater panels are also relevant in offshore support vessels, passenger vessels, tankers, research vessels, and other ships with distributed safety monitoring needs.
Marine fire alarm systems are mission-critical safety systems. A repeater panel is valuable because it helps extend visibility of the fire alarm system beyond the main control panel.
Bridge officers and engineers can see alarms immediately at their own workstations.
If a fire event or system fault occurs, time is saved because key personnel already have visibility of the event.
On a large ship, the main fire panel may be far from the bridge or engine control room. A repeater solves that problem.
Engineers can use the repeater to observe status changes during detector testing, troubleshooting, and maintenance activities.
By placing repeater panels at strategic locations, the vessel improves crew awareness and operational safety readiness.
As with any marine electronic panel, the repeater may develop faults over time due to power issues, communication loss, harsh environment, or display aging. Common issues include:
The screen remains dark or the repeater does not boot.
Possible causes:
The repeater powers on but does not show live system data correctly.
Possible causes:
The front panel buttons may fail to respond.
Possible causes:
The repeater may show a persistent fault count or communication fault.
Possible causes:
The display may become weak, unreadable, or partially failed over time.
Possible causes:
Local indication functions may stop working due to panel hardware or software issues.
When a Consilium repeater panel develops a problem, troubleshooting should be done carefully and in coordination with the vessel’s fire alarm system documentation.
First check whether the main fire alarm control panel is working correctly. If the main panel has a communication or system fault, the repeater may only be reflecting that condition.
Verify that the repeater is receiving the correct power and that supply terminals, fuses, and connections are intact.
Inspect the communication cable between the repeater and the main fire alarm system for:
If the repeater is powered and showing a fault, read the fault details carefully. Sometimes the fault is not in the repeater itself but elsewhere in the fire alarm network.
Check whether:
If the ship has more than one repeater, compare the status shown on both panels. This helps identify whether the issue is system-wide or local to one repeater.
If power is present but the screen is blank, distorted, or frozen, internal board or display section failure may be suspected.
SM MARINE SERVICE™ can support marine buyers looking for Consilium repeater replacement units, marine fire alarm spare parts, and model identification assistance.
To keep a marine repeater display unit in reliable service, the following maintenance practices are recommended:
Dust, oil, and contamination can reduce visibility and affect keypad performance.
Loose or corroded terminals are a common cause of repeater communication problems.
When the vessel performs routine fire alarm testing, include the repeater in the inspection to confirm that:
Always note:
Although marine equipment is rugged, panel impact, careless dismantling, or liquid ingress can still cause failure.
Marine buyers may search for this product using several different names. For SEO and spare-parts traffic, the following search terms are highly relevant.
It is used as a remote repeater display panel for a ship’s fire alarm and safety monitoring system, allowing crew to see alarms, faults, disabled points, and system status away from the main panel.
No. It is a repeater / remote display panel, not the main fire alarm control panel itself.
This is the Consilium product number shown on the label and should be used for identification and spare-parts enquiries.
Yes, repeater panels like this are commonly installed on the bridge, engine control room, or other strategic shipboard locations depending on vessel design.
From your photo, it can show alarm count, fault count, disabled count, and configuration / system status information.
Yes. If you provide the product number, photos, and vessel system details, SM MARINE SERVICE™ can assist with identification and supply support for Consilium marine fire alarm spare parts.
The Consilium REPEATER M 4.3 MARINE OEM 5100096-20A is a marine fire alarm repeater display unit used for remote monitoring of shipboard fire detection and alarm systems. It provides a 4.3-inch screen-based interface for viewing alarms, faults, disabled conditions, and system status away from the main control panel. Commonly installed on the bridge, engine control room, or other safety-critical locations, it helps improve response speed, crew awareness, and operational safety onboard ships.
If you are looking for Consilium REPEATER M 4.3 MARINE OEM, 5100096-20A, marine fire alarm repeater panels, Consilium safety system spare parts, or remote ship fire alarm display units, SM MARINE SERVICE™ can support your requirement.
We support customers with:
